Remove a Fan Module
Each fan module has a fan status indicator (LED) that is located next to the module. If the LED

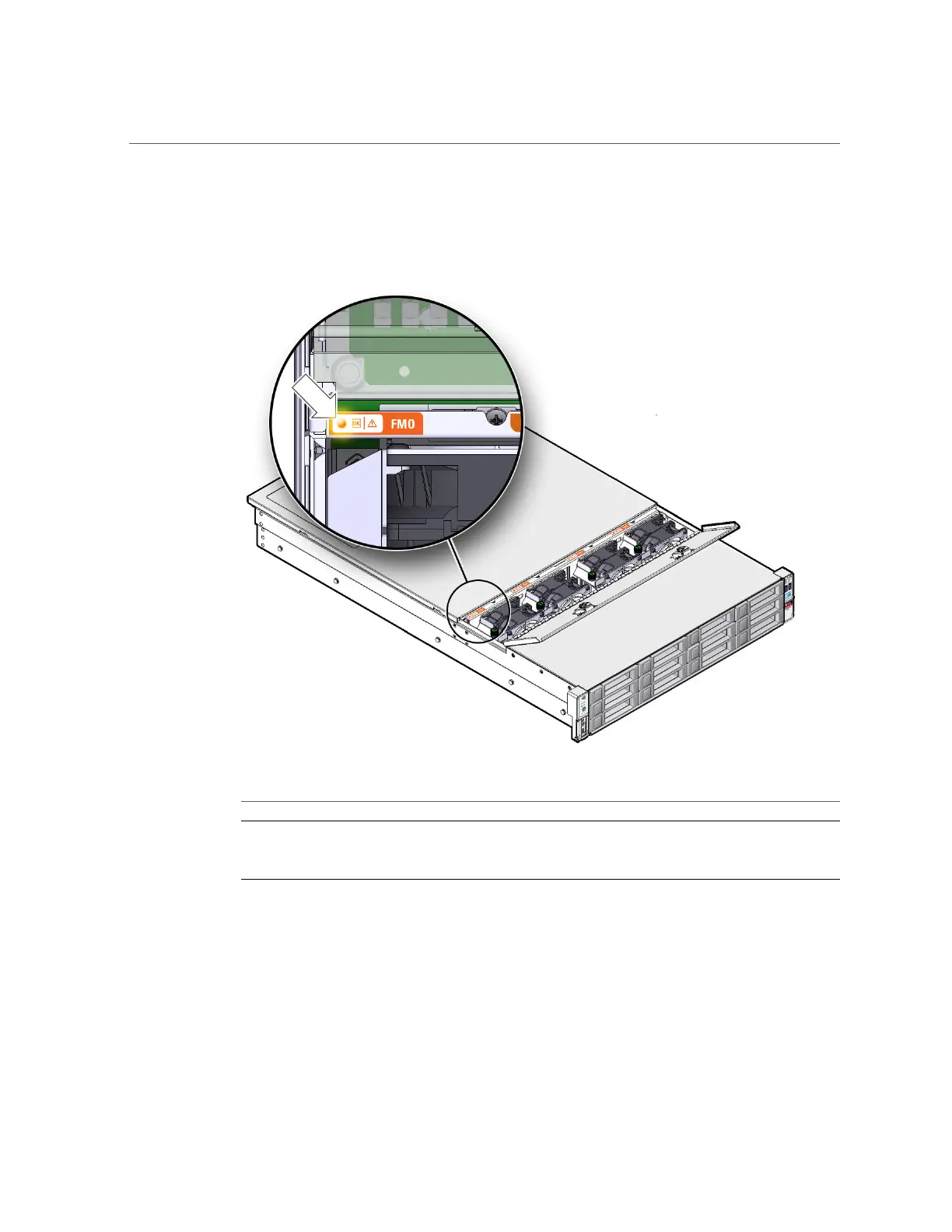

is amber, the fan has failed. The location of the fan status LED is shown in the following figure.
LED Color and State Meaning
Amber – The fan module is faulty. The front Top Fan LED and the front and rear panel Service Required LEDs are
also lit if the system detects a fan module fault.
Green – Indicates that the fan module is correctly installed and operating within specification.
68 Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
