Remove a Fan Module
4.

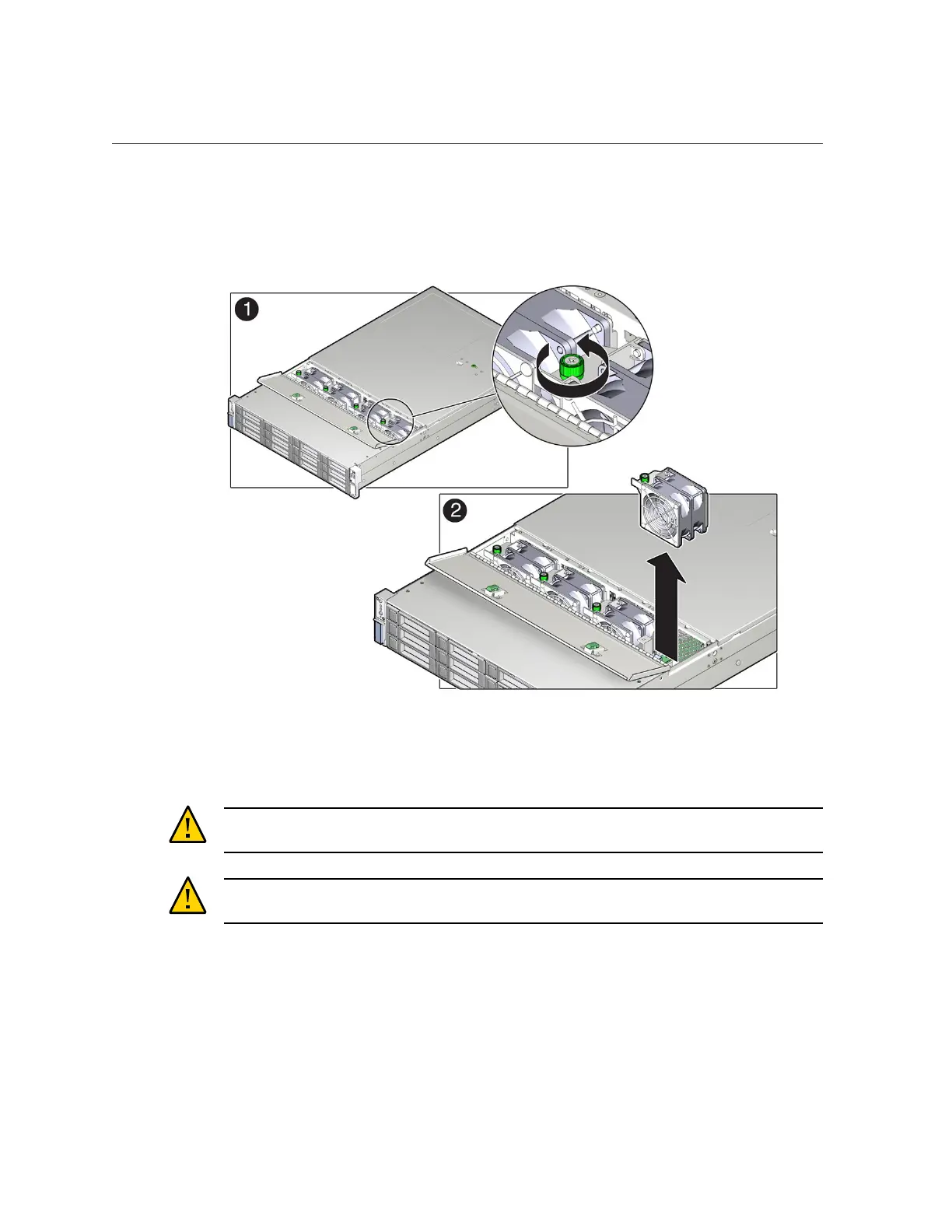

Use a No. 2 Phillips screwdriver to loosen the captive screw that secures the
faulty fan module in the chassis [1].
5.
Grasp both the captive screw and the opposite end of the module and lift the fan
module straight up and out of the chassis, and set it aside on an antistatic mat
[2].
Caution - When removing a fan module, do not rock it back and forth. Rocking the fan module
can cause damage to the motherboard connectors.
Caution - Do not service any other components in the fan compartment unless the system is
shut down and the power cords are removed.
6.
Consider your next step:
■
If you removed the fan assembly as part of another procedure, return to that procedure.
■
Otherwise, continue to “Install a Fan Module” on page 70.
Servicing Components That Do Not Require Server Power-Off 69
