Setting up Compax3
192-120114 N5 C3I22T11 June 2008 119

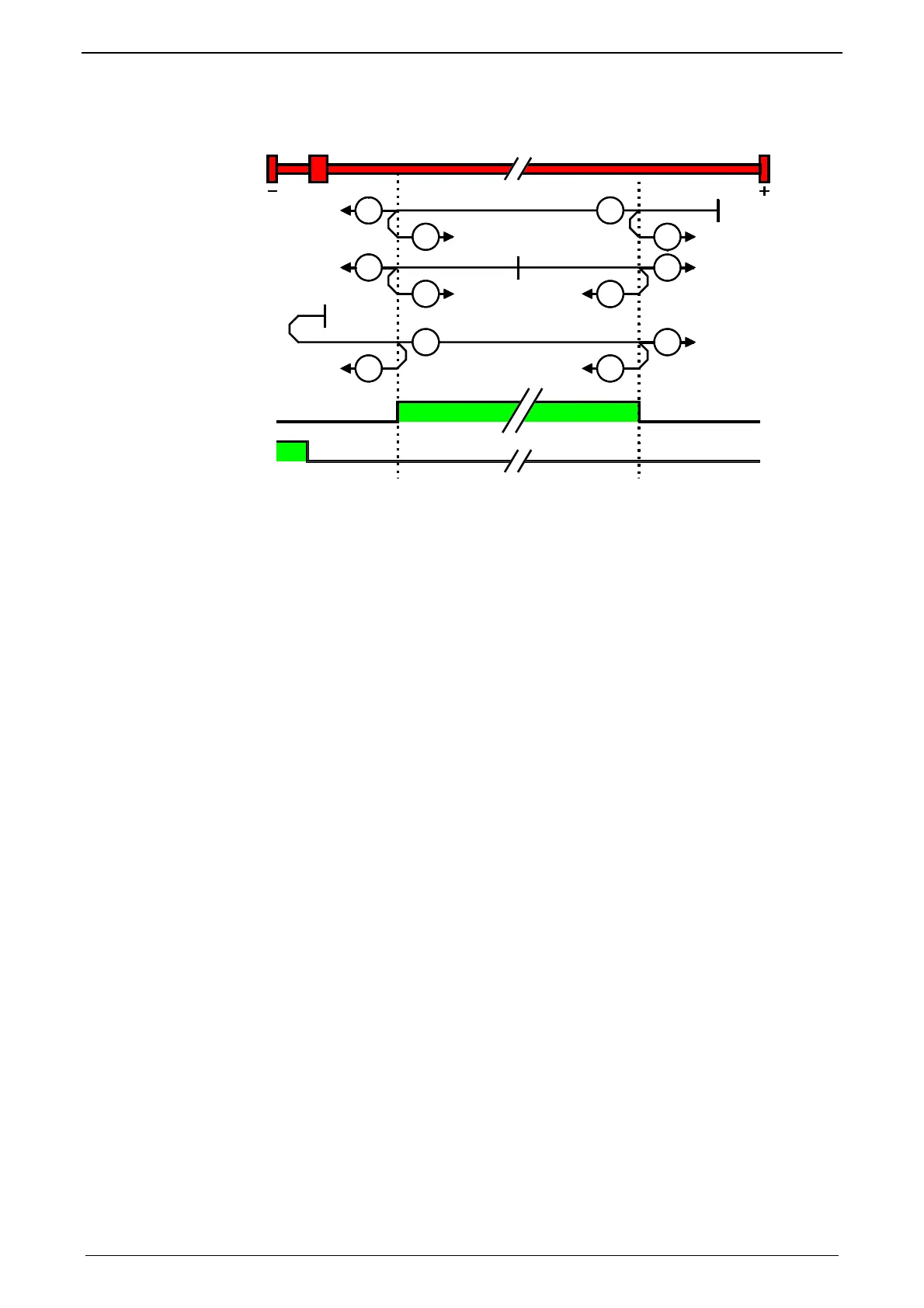

MN-M 27...30: With direction reversal switches on the negative side
Without motor zero point, with direction reversal switches
30
30
30
29
29
29
28
28
28
27
27
27
1
2
1: Logic state of the home switch
2: Logic state of the direction reversal switch

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
