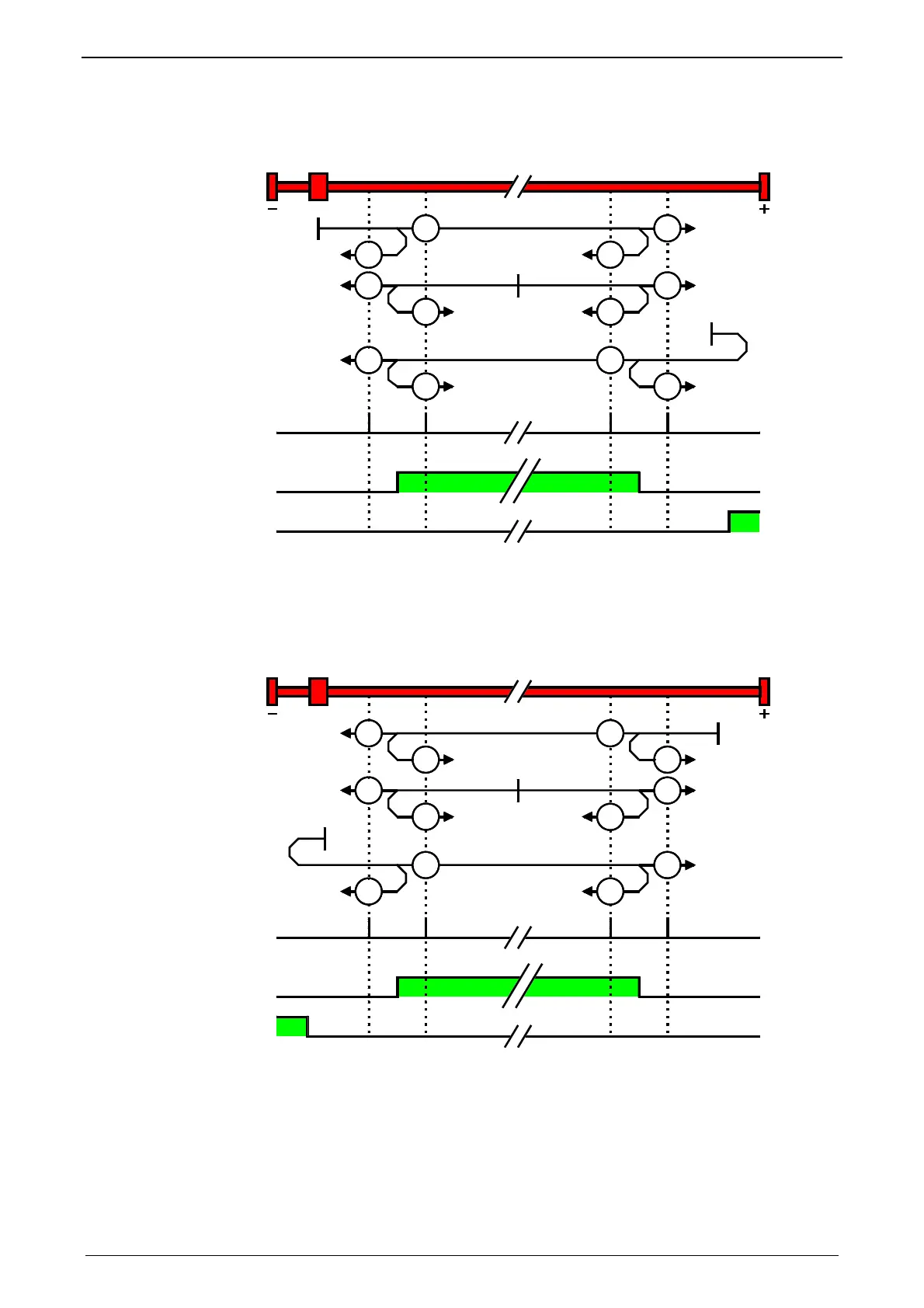

MN-M 7...10: Direction reversal switches on the positive side
Machine zero modes with a home switch which is activated in the middle of the
travel range and can be deactivated to both sides.
7
8
9
108
107
10
9
9
7
8
1
2
3
1: Motor zero point
2: Logic state of the home switch
3: Logic state of the direction reversal switch
MN-M 11...14: With direction reversal switches on the negative side
Machine zero modes with a home switch which is activated in the middle of the
travel range and can be deactivated to both sides.
14
14
14
13
13
13
12
12
12
11
11
11
1
2
3
1: Motor zero point
2: Logic state of the home switch
3: Logic state of the direction reversal switch
With motor zero
point, with direction
reversal switches
With motor zero
point, with direction
reversal switches
