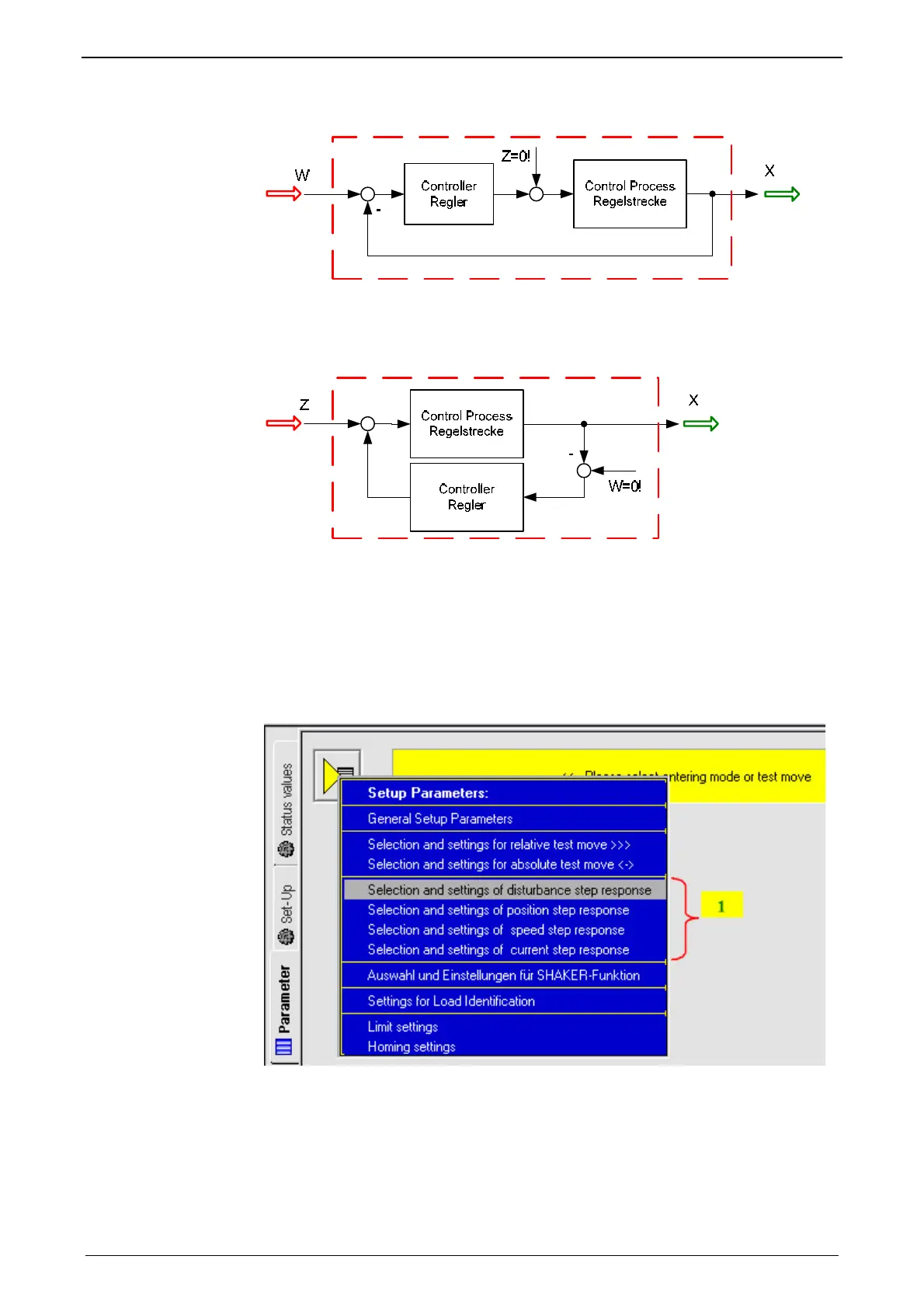

Demand behavior
W: Setpoint value
X: Actual value
Z: Disturbance variable
Disturbance behavior
W: Setpoint value
X: Actual value
Z: Disturbance variable
In order to examine the disturbance and setpoint behavior, the Compax3 setup
software offers 4 jerk functions.
Test functions
Test functions for the analysis of disturbance and setpoint behavior of the control
loops
1: 4 jerk functions
The properties of the setpoint behavior of the velocity controller can be acquired
from the velocity jerk response.

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
