Compax3 device description
192-120114 N5 C3I22T11 June 2008 35

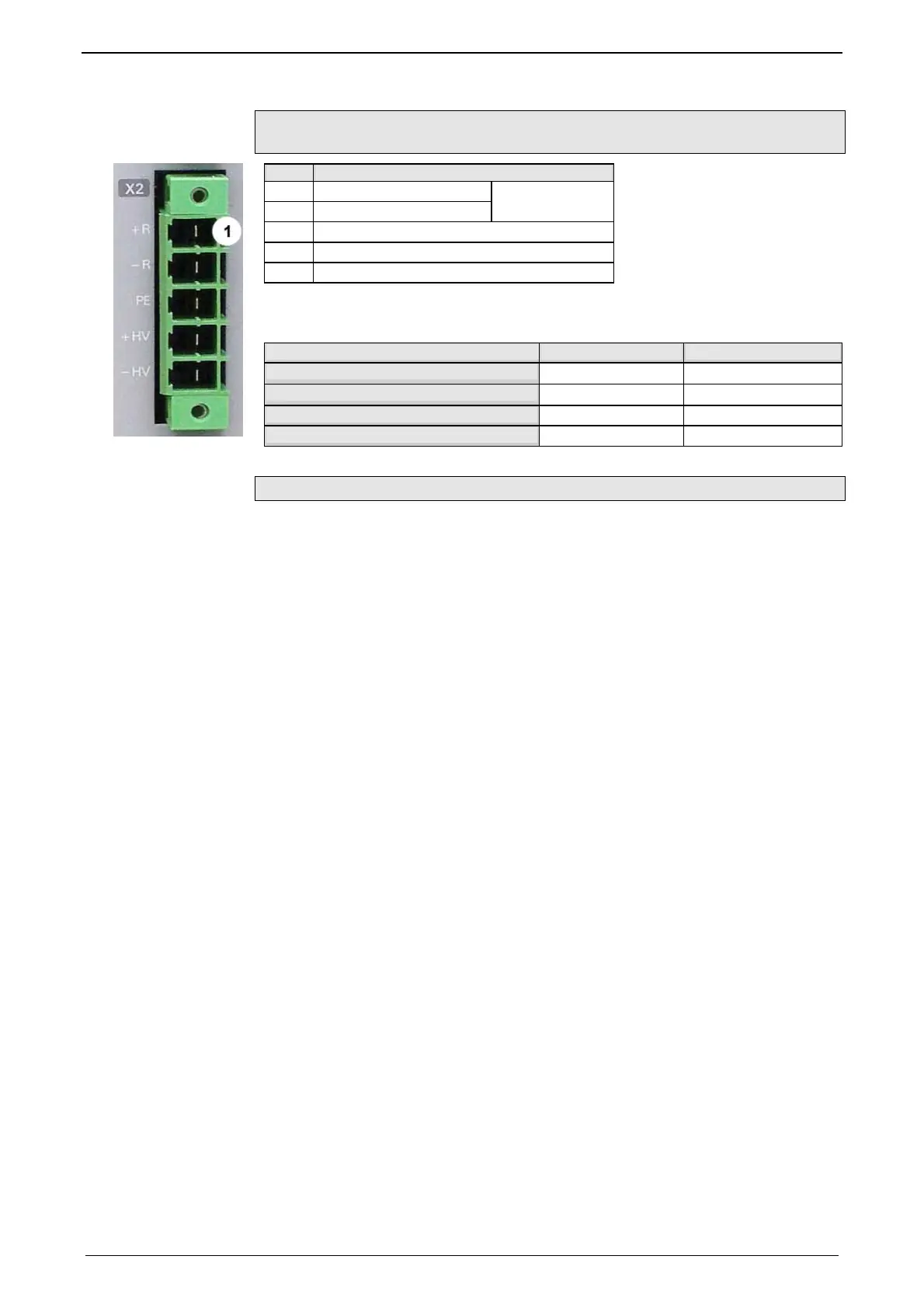

Braking resistor / high voltage supply plug X2 for 3AC
230VAC/240VAC devices
PIN Description
1 + Braking resistor
2 - Braking resistor
no short-circuit
protection!
3 PE
4 + DC high voltage supply
5 - DC high voltage supply
Braking operation Compax3S1xxV2 3AC
Controller type S100V2 S150V2
Capacitance / storable energy
780μF / 21Ws 1170μF / 31Ws
Minimum braking- resistance
22Ω 15Ω
Recommended nominal power rating
60 ... 450W 60 ... 600W
Maximum continuous current
20A 20A
Connection of a braking resistor
Mimimum line cross section: 1.5mm
2
Maximum line length: 2m
Maximum output voltage: 400VDC

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
