Unit: Grade
Gear transmission ratio 70:4 => 4 load revolutions = 70 motor revolutions
Travel distance per motor revolution = 4/70 * 360° = 20.571 428 5 ...° (number
cannot be represented exactly)
Instead of this number, you have the option of entering it exactly as a numerator
and denominator:
Travel distance per motor revolution = 144/7
This will not result in any drift in continuous operation mode or in reset mode, even
with relatively long motion in one direction.

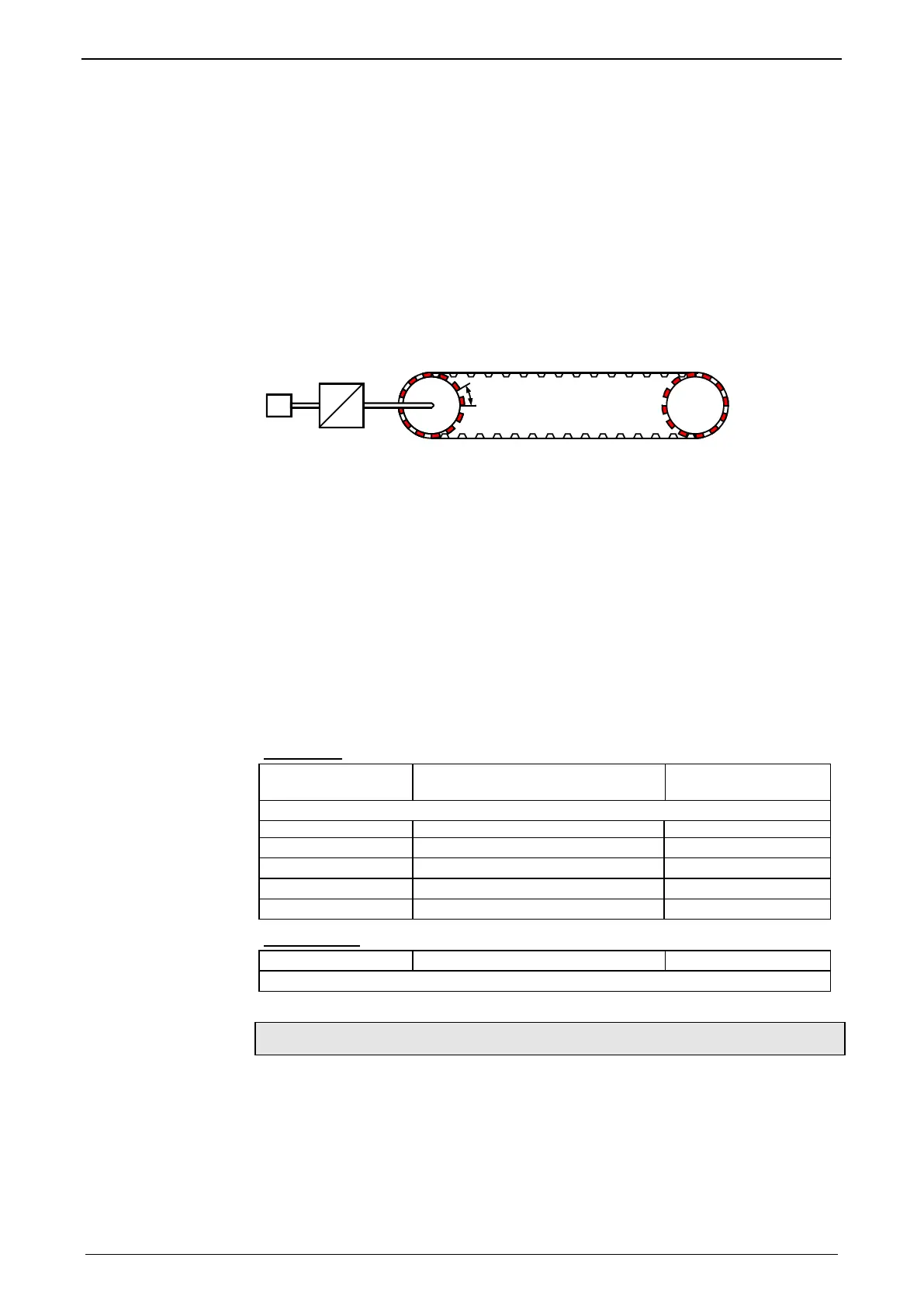

Conveyor belt
7 4
10mm
M
7
4
Unit: mm
Gear transmission ratio 7:4 => 4 load revolutions = 7 motor revolutions
Number of pinions: 12
Tooth separation: 10mm
Travel path per motor revolution = 4/7 * 12 * 10mm = 68.571 428 5 ... mm (this
number cannot be expressed exactly)
Instead of this number, you have the option of entering it exactly as a numerator
and denominator:
Travel distance per motor revolution = 480/7 mm
For "travel distance per motor revolution" that can be represented exactly, enter 1
as the denominator.
Travel distance per motor revolution /-pitch
Numerator
Unit: Unit Range: depends on the unit selected
Standard value: depends
on the unit selected
Resolution: 0.000 000 1 (7 decimal places)
Unit
Division
Standard value
Increments* 10 ... 1 000 000 1024
mm 0.010 000 0 ... 2000.000 000 0 1.000 000 0
Grade 0.010 000 0 ... 720.000 000 0 360.000 000 0
Inch 0.010 000 .. 2000.000 000 1.000 000
Denominator
Unit: - Range: 1 ... 1 000 000 Standard value: 1
Integer value
*
The unit "increments" is valid only for position values!
Speed, acceleration and jerk are specified in this case in revolutions/s,
revolutions/s
2
and revolutions/s
3
(resp. pitch/s, pitch/s
2
, pitch/s
3
for linear motors).
Example 2:
