Parker Compax3

Setting up Compax3
C3I12T11
106
192-120113 N08 C3I12T11 - December 2010
Invert Motor Rotation/Direction Polarity
Unit: - Range: no / yes Standard value: no
Reverse direction inverts the sense of rotation, i.e. the direction of movement of the motor
is reversed in the case of equal setpoint.
Reset mode is available for applications in which the positioning range repeats;
some examples are: Rotary table applications, belt conveyor. ...
After the reset travel distance (exactly specifiable as numerator and denominator
(see on page 104)) the position values in Compax3 are reset to 0.

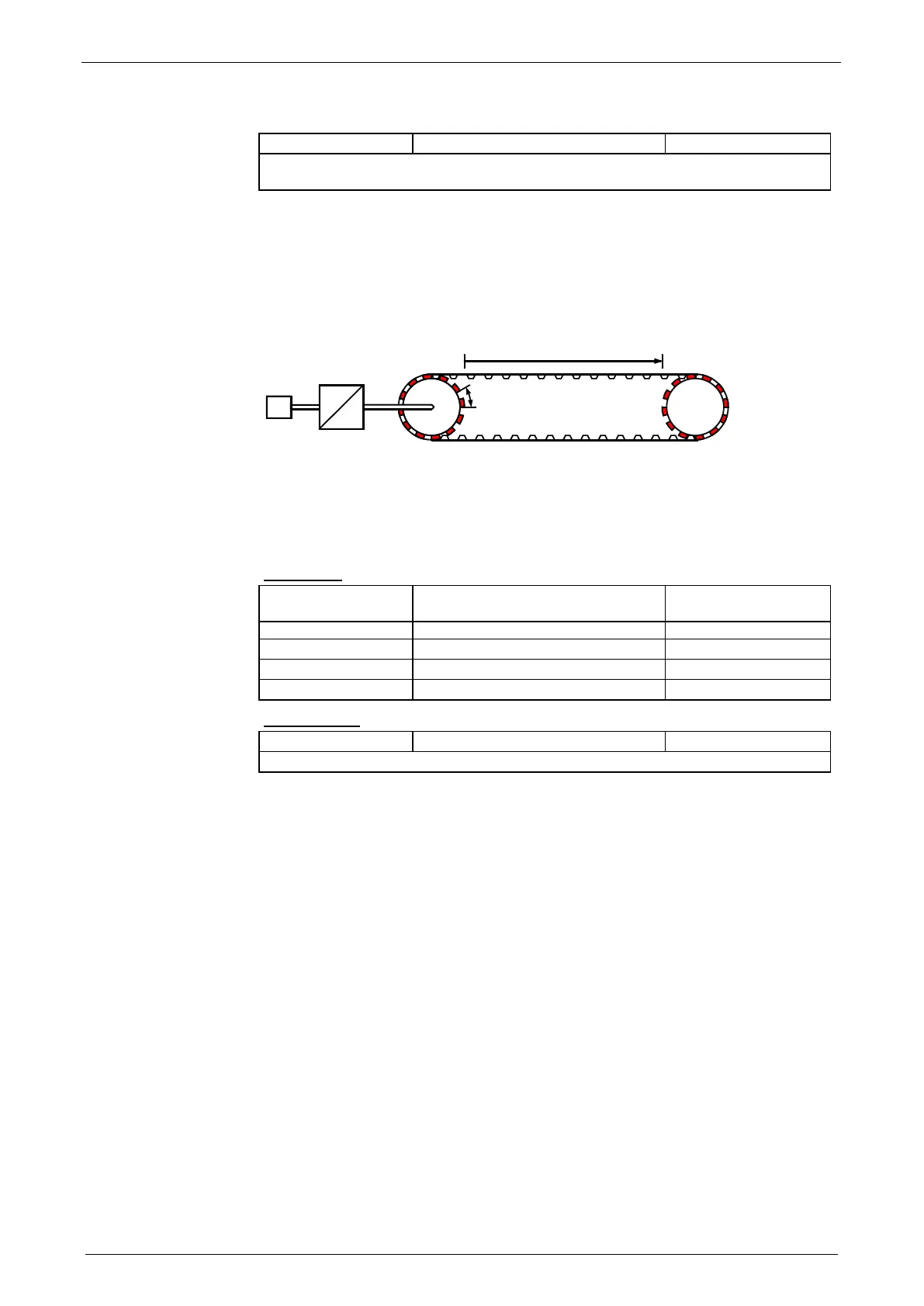

Conveyor belt (from the "Conveyor belt" example) with reset path
7 4
10mm
300 mm
M
7
4
A reset path of 300 mm can be entered directly with numerator = 300 mm and
denominator = 1.
Reset mode is not possible for linear motors.
Reset distance
Numerator
Unit: Unit Range: depends on the unit selected
Standard value: depends
on the unit selected
Unit
Division
Standard value
Increments 10 ... 1 000 000 0
mm 1 ... 2000 0
Grade 1 ... 720 0
Denominator
Unit: - Range: 1 ... 1 000 000 Standard value: 0
Integer value
Turn off reset mode
Reset mode is turned off for numerator = 0 and denominator = 0.
Reset mode
Example:
