CRANKSHAFT REMOVAL / INSPECTION
1. Perform “Crankcase Disassembly / Inspection”
procedure.
2. Perform “Balance Shaft Removal / Inspection”
procedure.

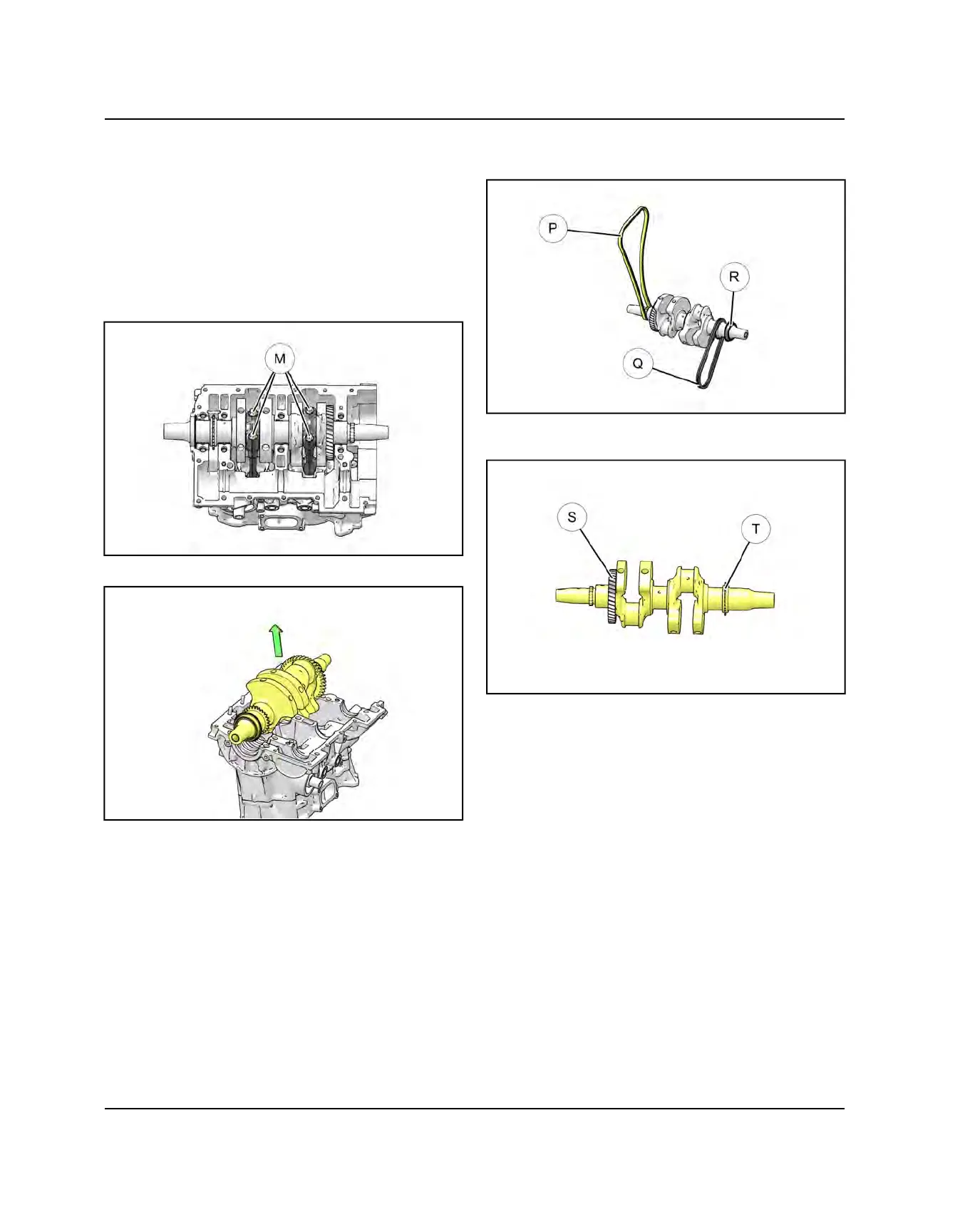

3. For ease of assembly, mark each connecting rod and
end cap.
4. Loosen, remove and discard the four connecting rod
bolts (M). Remove the end caps from the crankshaft.
5. Carefully lift the crankshaft (N) out of the crankcase.
6. Remove the cam chain (P), oil pump drive chain (Q)
and PTO main seal (R) from the crankshaft.
7. Inspect the crankshaft gear (S) and auxiliary
sprocket (T) for broken or worn teeth.
8. If the crankshaft gear (S) is damaged, the crankshaft
assembly must be replaced.
