MALFUNCTION
DETECTION
INTERVAL
STATUS LED
Temperature
sensor open
and short
detection
Continuous
1x per second
Clutch circuit
open, short or
over current
At A/C start up 2x per second
Compressor
clutch short to
ground
Continuous
3x per second
NOTICE
The EDT will attempt to restart every 20 seconds until
the fault is repaired.

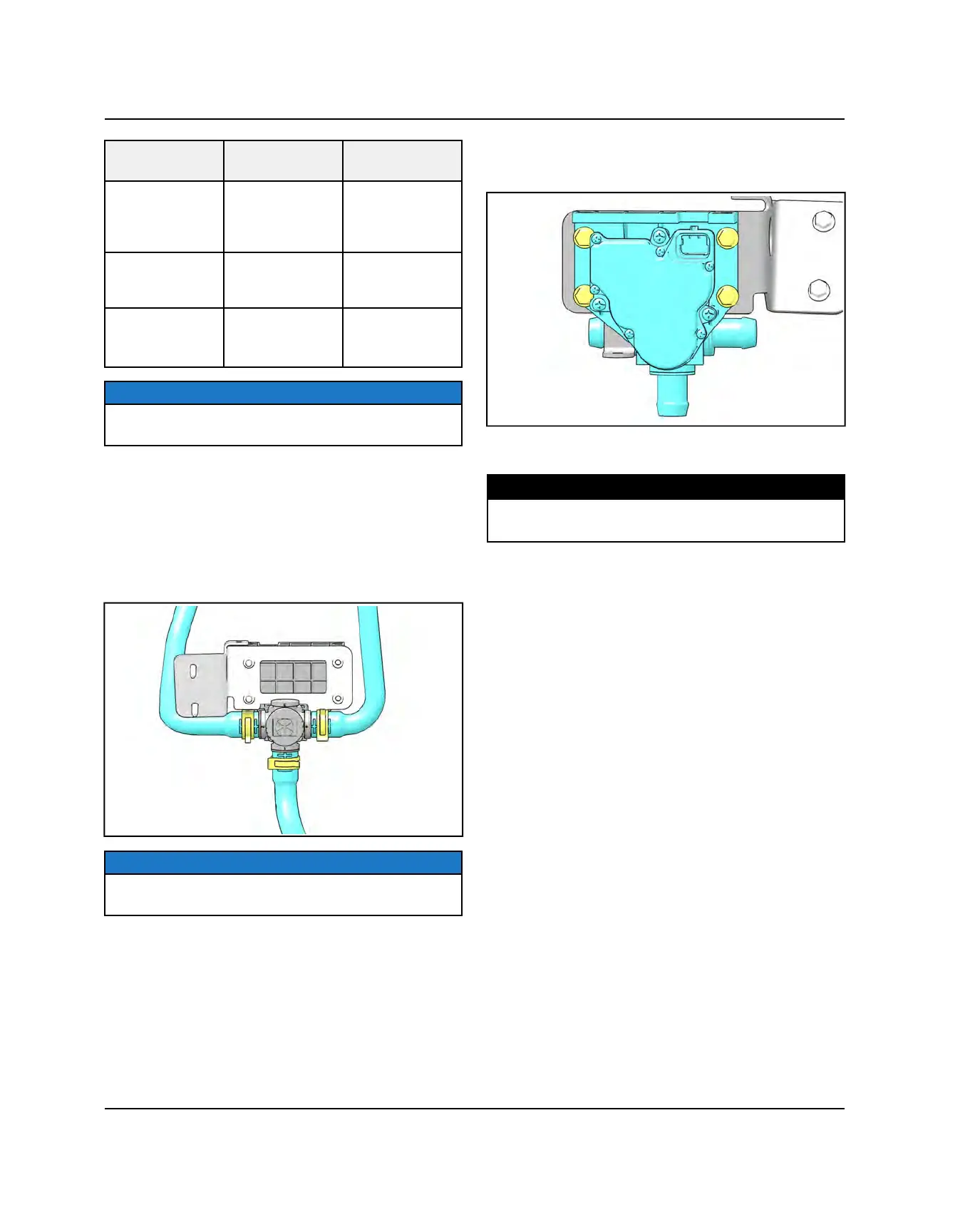

HEATER VALVE REPLACEMENT
1. Remove the passenger seat and storage bin.
2. Disconnect the wiring harness from the heater valve.
3. Remove the hose clamps and coolant hoses from
the heater valve.
NOTICE
Plug the hoses to prevent contamination and coolant
loss from the system.
4. Remove the fasteners retaining the heater valve to
the mounting bracket and remove the heater valve
from the vehicle.
5. For installation, reverse removal procedure. Torque
heater valve fasteners to specification.
TORQUE
Heater Valve Fasteners:
8 lb-ft (11 Nm)
6. Fill and bleed cooling system. Refer to Cooling
System Bleeding Procedurepage
ENGINE / COOLING / HVAC SYSTEM
