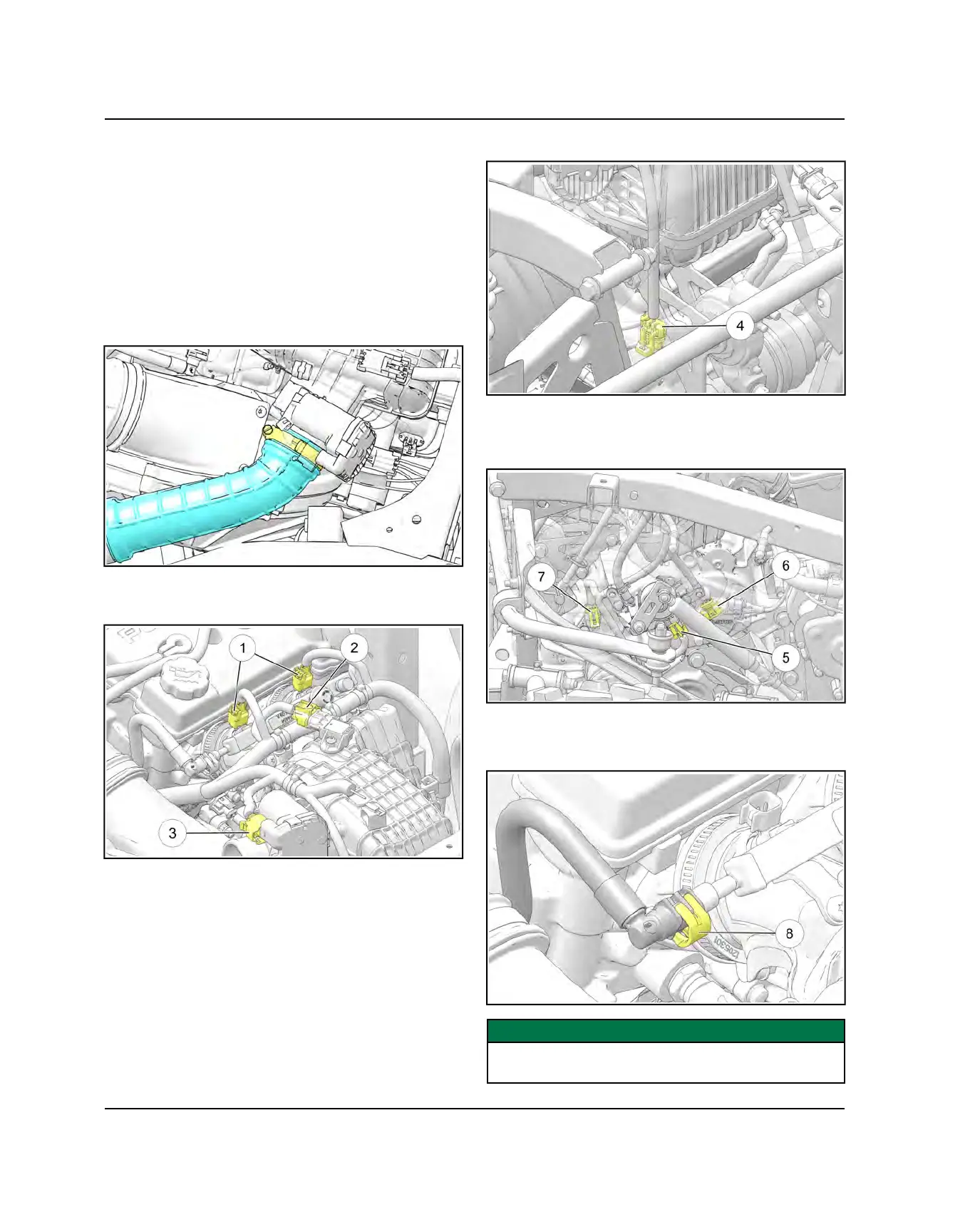

INTAKE MANIFOLD REMOVAL
1. If vehicle was recently operated, allow it to cool down
before attempting to perform any work.
2. Thoroughly clean the engine and chassis.
3. Remove rear cargo box from vehicle. Refer to
“Cargo Box Removal”page 10.27 procedure.
4. Loosen the clamp holding the engine intake hose to
the throttle body. Place clean cloth inside throttle
body inlet to prevent any contaminants from entering
the engine.
5. Carefully remove electrical harness from fuel injectors
q
, TMAP sensor
w
, and Throttle Body
e
.
6. Disconnect Turf Mode connector
r
.
7. Disconnect Transmission
t
, CPS Switch connector
y
and Speed Sensor
u
. Remove clips from retaining
tabs and position harness out of the way.
8. Remove the Fuel Line by pulling open the connector
tab
i
while moving the connector out to release the
line.
IMPORTANT
Place a shop towel around the fuel line to catch any
dripping fuel.
