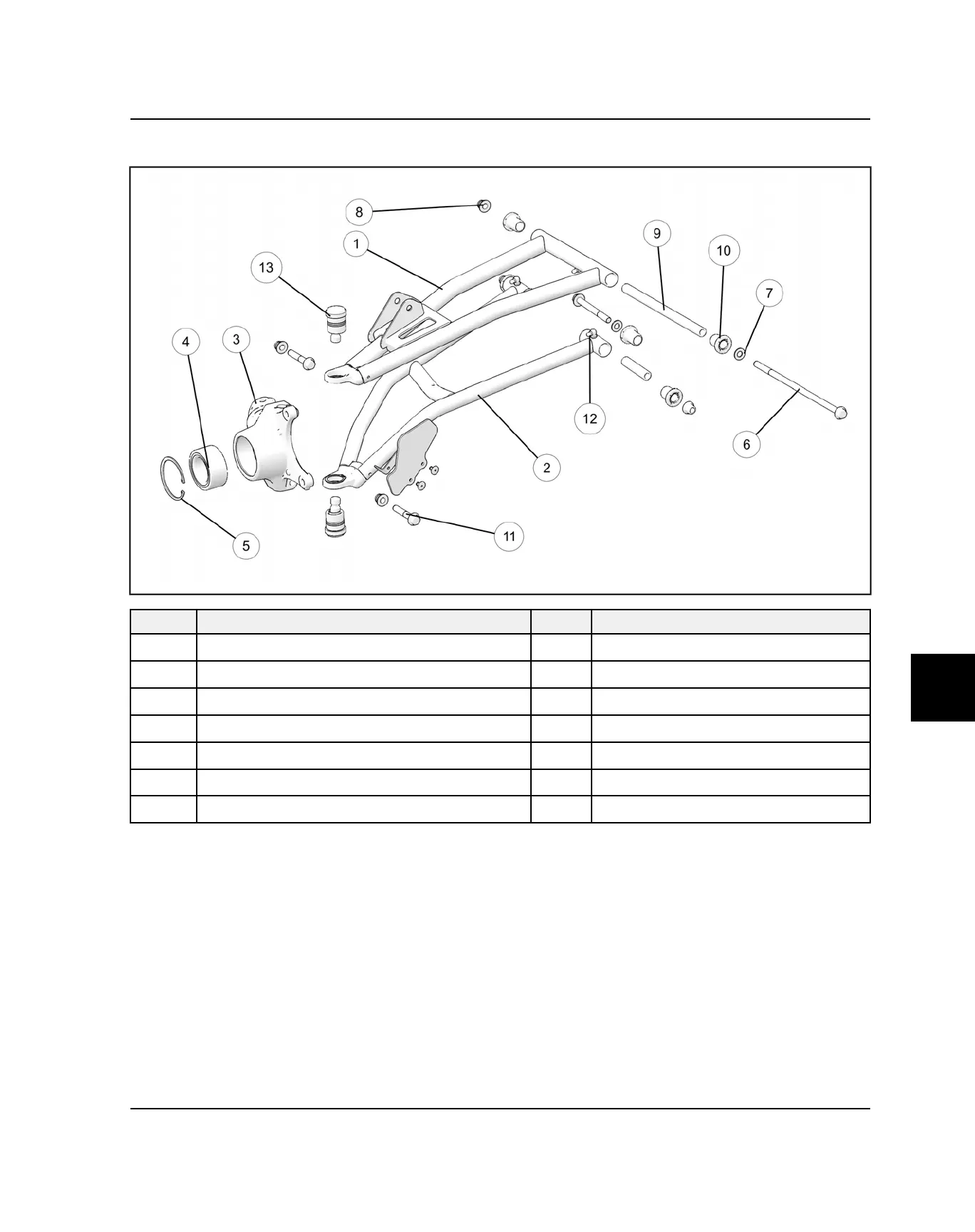

FRONT A-ARM ASSEMBLY VIEW - HIGH LIFTER
REF DESCRIPTION REF DESCRIPTION
q
A-ARM, FRONT UPPER
i
NUT
w
A-ARM, FRONT LOWER
o
PIVOT TUBE
e
BEARING CARRIER
a
BUSHING
r
BEARING
s
BOLT
t
RETAINING RING
d
ZERK FITTING
y
BOLT
f
BALL JOINT
u
WASHER
