FRONT CALIPER SERVICE

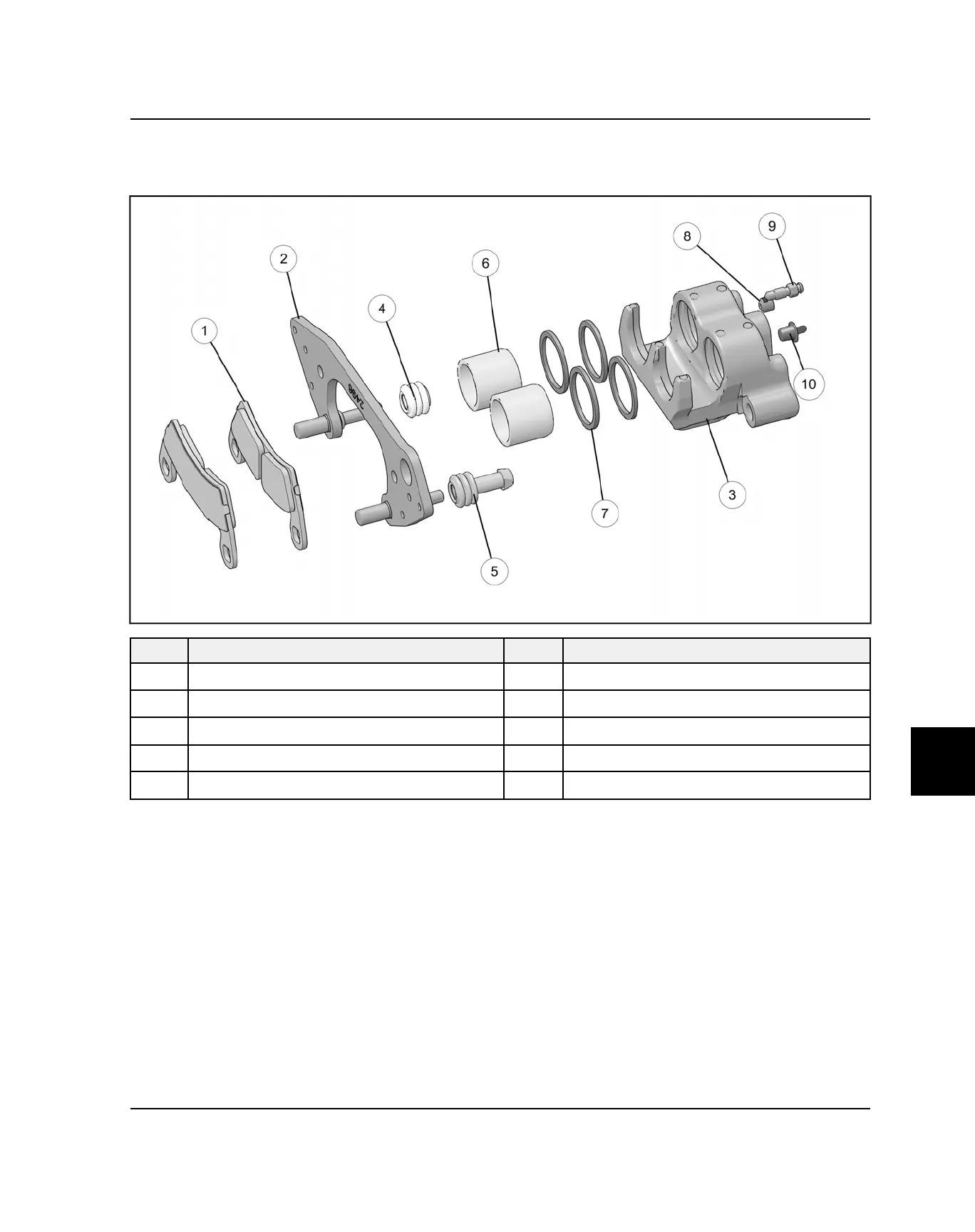

CALIPER ASSEMBLY VIEW
REF
PART DESCRIPTION
REF
PART DESCRIPTION
q
Asm, Brake Pad
y
Piston, Brake
w
Asm, Caliper Mount
u
Ring
e
Caliper, Brake
i
Bolt
r
Boot, Pin Seal
o
Bleeder Screw
t
Boot, Pin Bushing
a
Cap, Plug
