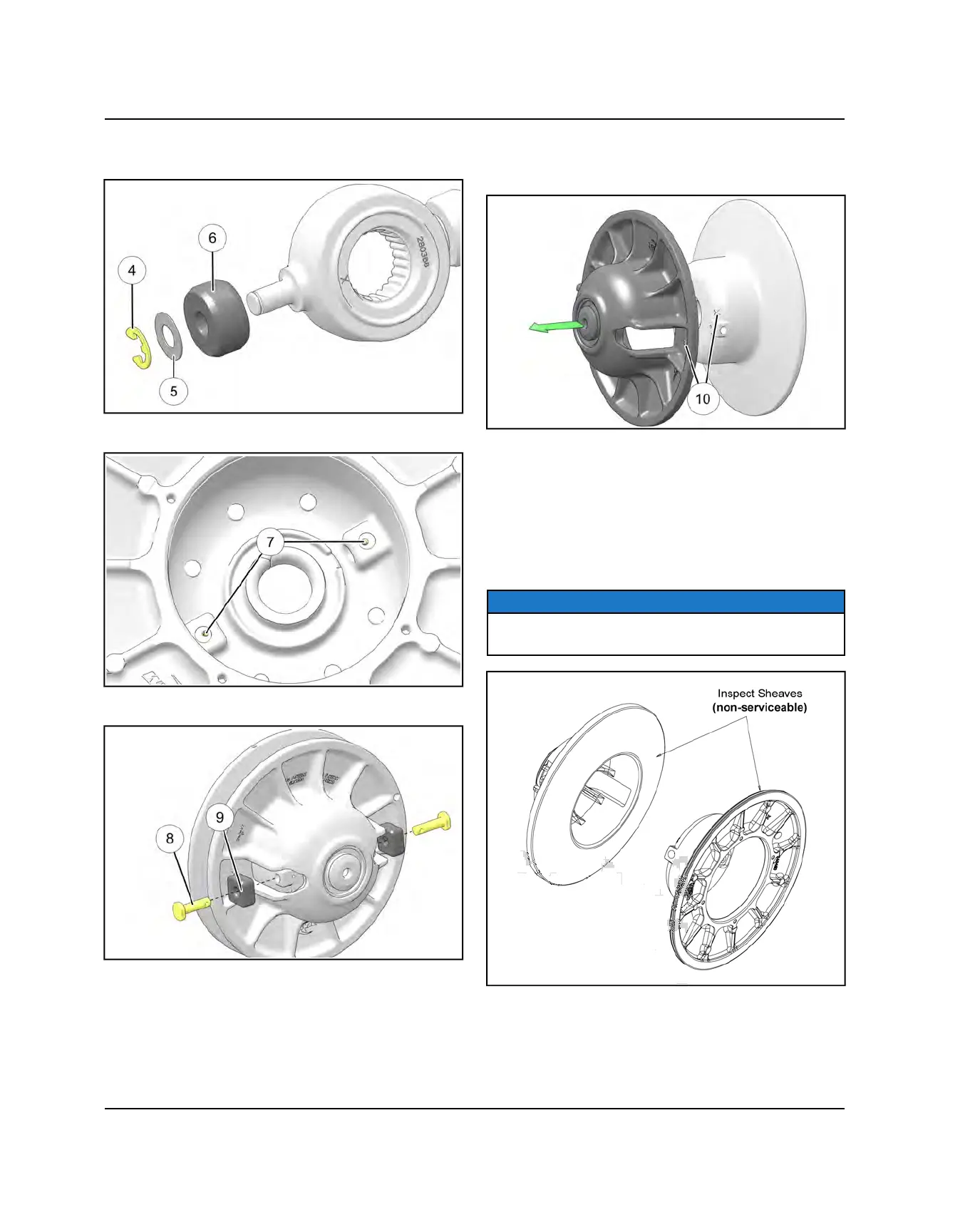

7. Remove the E-clips
r
, washers
t
, and the clutch
rollers
y
. Inspect the rollers for wear; replace if worn.
8. Press out the spring pins
u
in the inner sheave.
9. Pull out the clutch slider pins
i
and sliders
o
.
10.Separate the stationary sheave from the moveable
sheave. Note the X’s
a
on the stationary and fixed
sheaves for reassembly.
11. Inspect the clutch bushings for wear. If there is heavy
wear on the bushings, replace the clutch assembly.
12.Inspect the sheaves for excessive wear or damage.
CLUTCH INSPECTION
1. Clean the sheaves and inspect each of them for
damage.
NOTICE
If either clutch sheave is damaged, the entire driven
clutch assembly must be replaced.
2. Inspect the compression spring for cracks or other
damage.
