4. Refer to “Instrument Cluster Trouble Code
Display”page 4.35 trouble code reference table for
a description of each code.
5. If more than one code exists, press the MODE button
to advance to the next trouble code.
6. To exit the diagnostic mode, press and hold the
MODE button or turn the ignition key OFF once the
codes are recorded.
NOTICE
If there is a diagnostic problem with the power steering
system, the power steering MIL will illuminate and blink
in place of the check engine MIL.

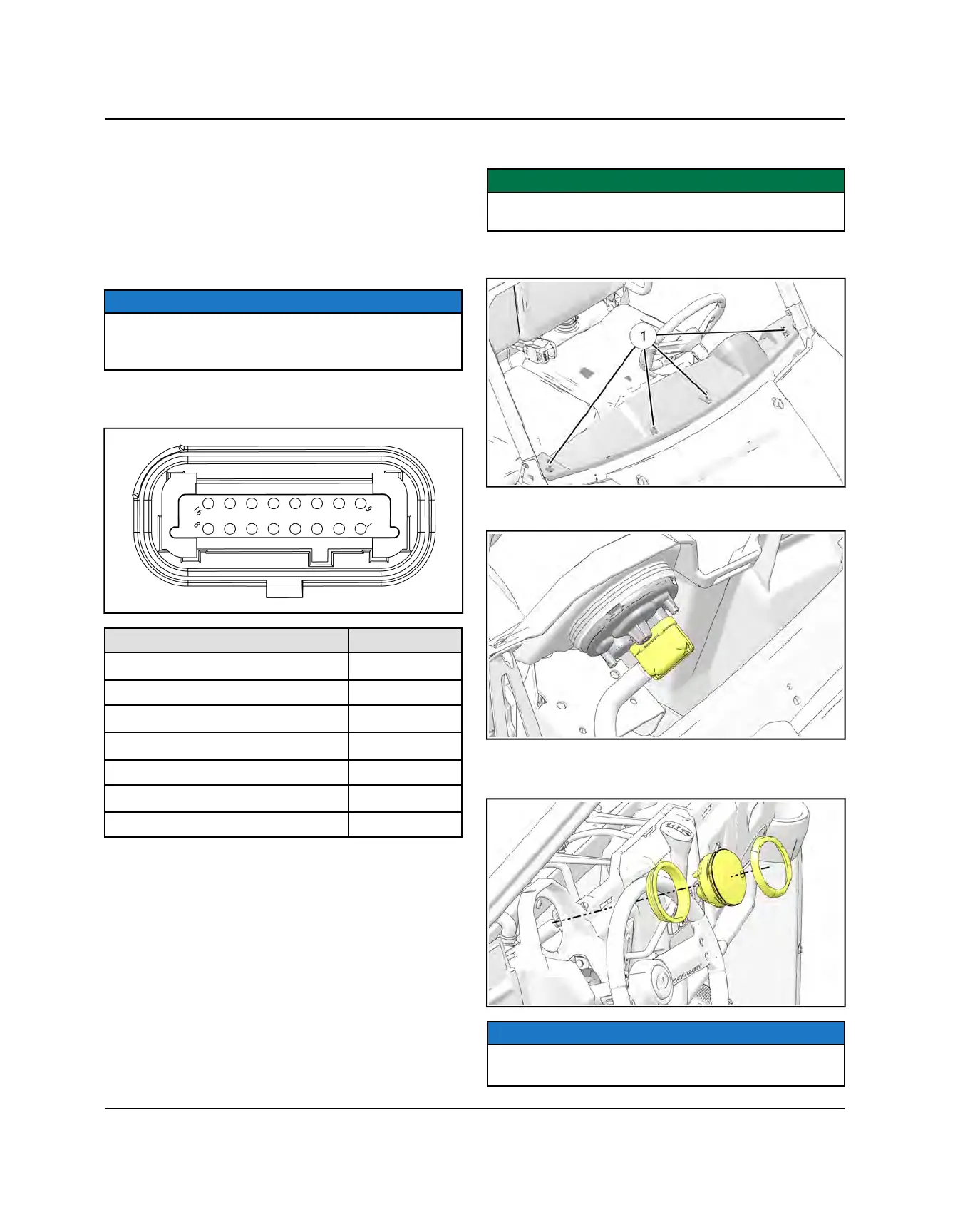

INSTRUMENT CLUSTER PINOUTS
FUNCTION PIN
CAN High
1
CAN Low 2
Switched Power (Vdc)
3
Constant Power (Vdc)
4
Ground
5
High Beam Input
8
Fuel Level Sensor 11
INSTRUMENT CLUSTER REMOVAL
IMPORTANT
Do not allow alcohol or petroleum products to come in
contact with the instrument cluster lens.
1. Remove the push rivets
q
and upper dash panel
from the vehicle.
2. Disconnect the wire harness connector from the
back side of the instrument cluster.
3. Push the instrument cluster out of the lower dash
panel, while securely holding the panel and rubber
mount.
NOTICE
The instrument cluster bezel is a snap-on assembly and
is a serviceable part.
