Polaris RANGER XP 1000 2018-2019

8
9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.
8.21
REAR A-ARM SERVICE

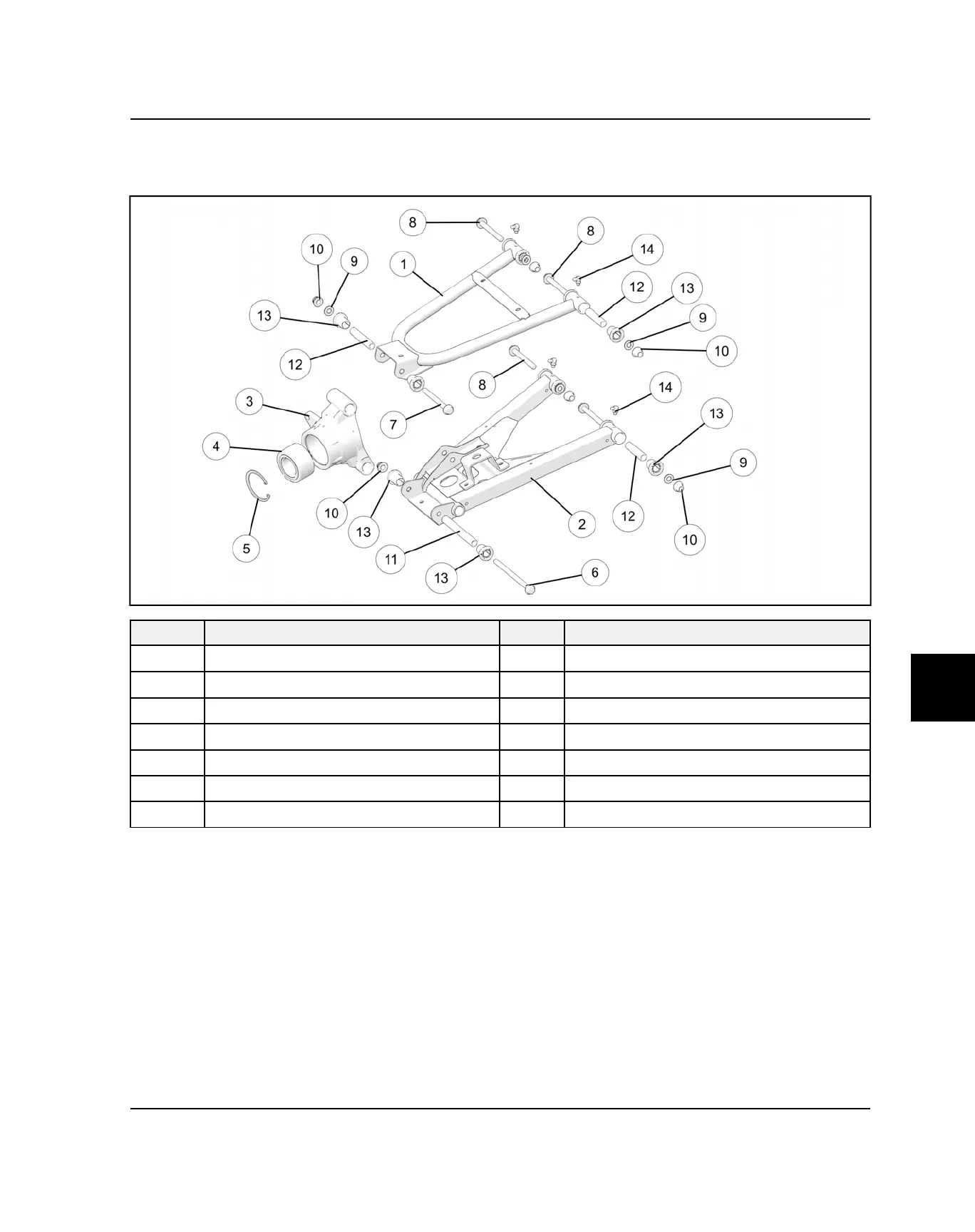

REAR A-ARM ASSEMBLY VIEW
REF
DESCRIPTION
REF
DESCRIPTION
1
A-ARM, REAR UPPER
8 BOLT
2
A-ARM, REAR LOWER
9 WASHER
3 BEARING CARRIER 10 NUT
4 BEARING 11 PIVOT TUBE
5
RETAINING RING 12 PIVOT TUBE
6 BOLT 13 BUSHING
7 BOLT 14 ZERK FITTING
STEERING / SUSPENSION
