BALANCE SHAFT INSTALLATION
1. Clean the upper crankcase balance shaft bearing
bore surfaces.

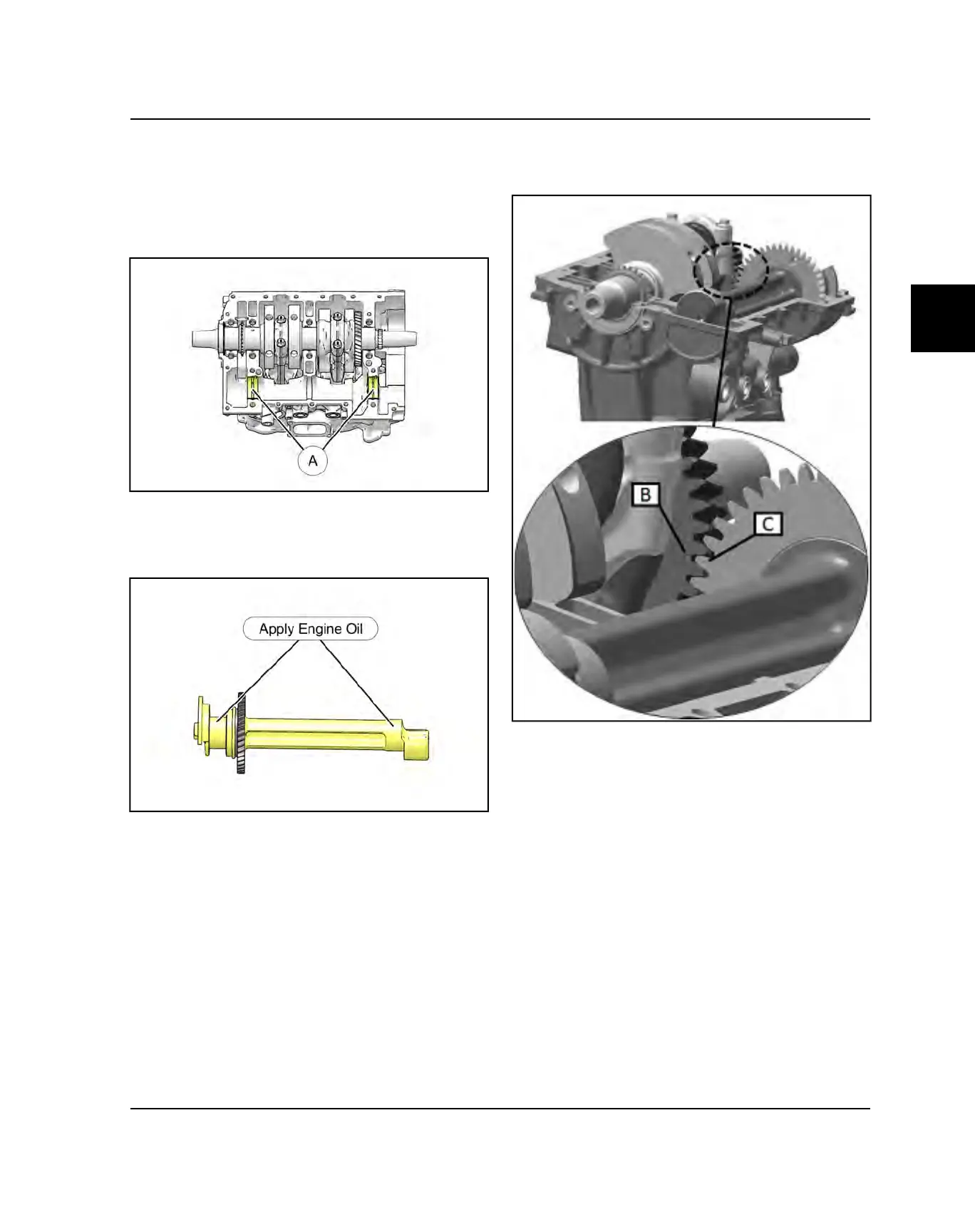

2. Align tab of new balance shaft bearings (A) with the
slot in each bearing bore of crankcase. Press
bearing insert firmly into place.
3. Rotate the crankshaft until the alignment dot (B) on
the crankshaft MAG end gear is visible.
4. Apply Polaris PS-4 engine oil to both balance shaft
journals.
5. Install the balance shaft, placing the tooth with the
alignment dot (C) in-line with the dot (B) on the
crankshaft gear (see reference images below).
