Polaris RANGER XP 1000 2018-2019

5
9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.
5.9

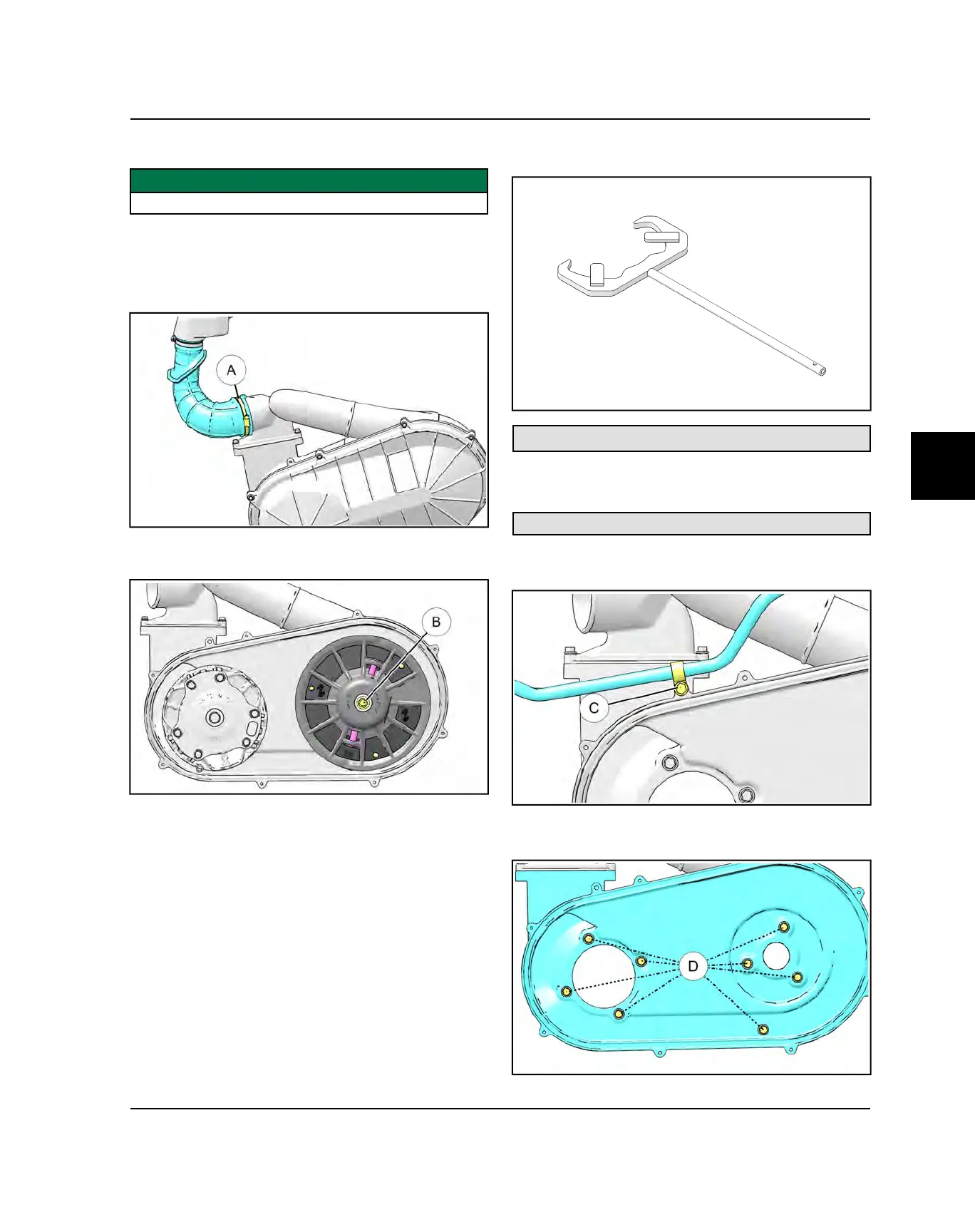

PVT DISASSEMBLY
IMPORTANT
Use the correct Drive Clutch Puller P/N: 2872085
1. Remove the outer clutch cover and drive belt. Refer
to “Belt Removal”page 5.12 procedure.
2. Loosen the PVT inlet hose clamp
A
and remove the
ducting hose from the vehicle.
3. Remove the driven clutch retaining bolt
B
and driven
clutch.
4. Install the Drive Clutch Holding Tool on the drive
clutch.
Drive Clutch Holding Tool 9314177-A
5. Remove the drive clutch retaining bolt and remove
the drive clutch using Drive Clutch Puller.
2872085
6. Remove the fuel line
C
from the inner clutch cover
restraint.
7. Remove the bolts
D
that retain the inner clutch cover
to the engine and transmission.
PVT SYSTEM
