PROPSHAFT U-JOINT SERVICE
PROPSHAFT U-JOINT DISASSEMBLY
NOTICE
Before servicing the prop shaft U-joint, be sure the joint
is clean to ensure no debris damages the yoke.

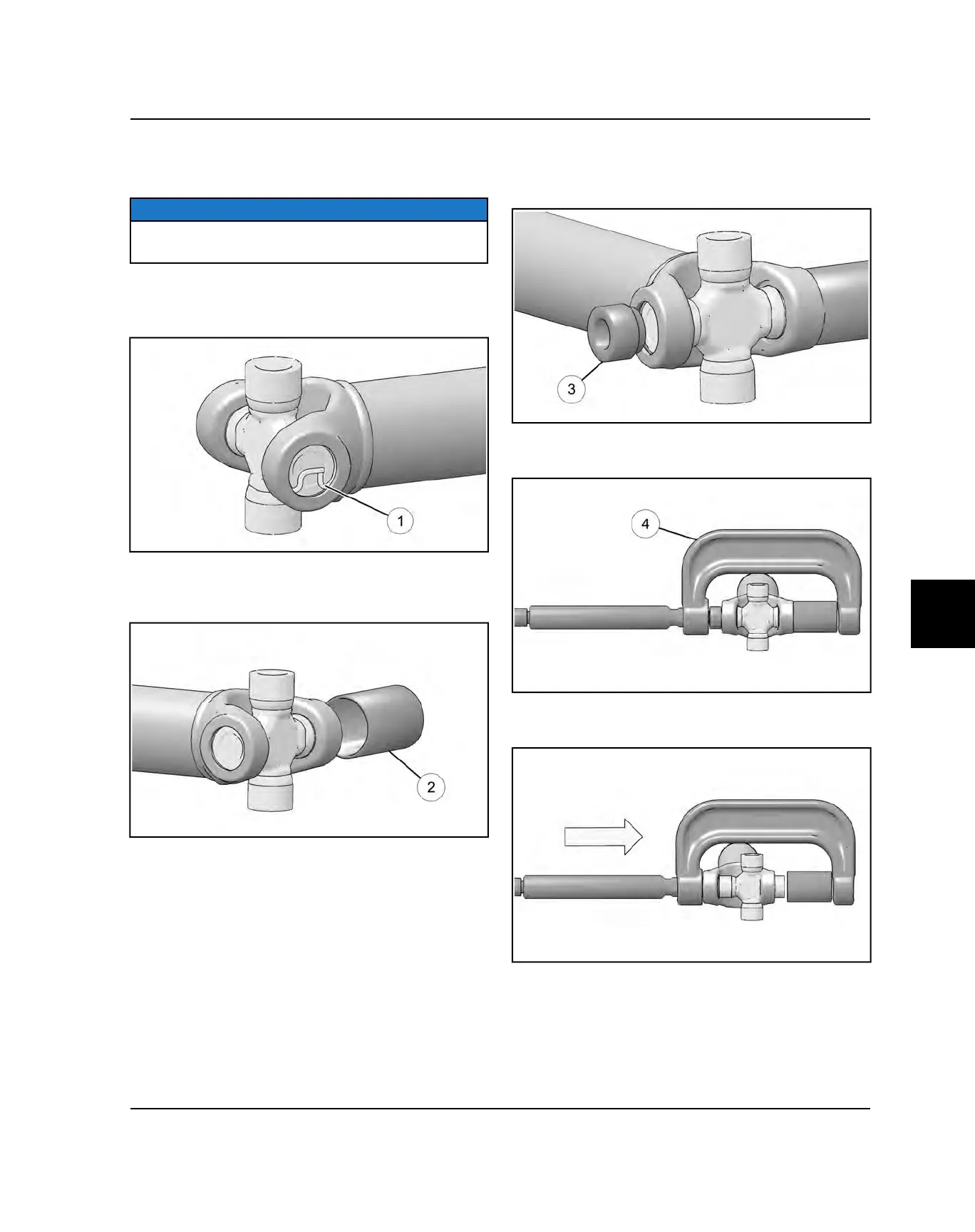

1. With the prop shaft removed and marked for
alignment orientation, remove the retaining rings
q
from both sides of the yoke.
2. Using a commercially available Ball Joint / U-Joint
Press Set, place a receiving cup adapter
w
with a
larger ID than the U-joint cap OD on one end.
3. Place a remover adapter
e
on other end of U-joint
with a smaller OD than the U-joint cap.
4. Position clamp
r
over receiving cup adapter and
remover adapter.
5. Tighten clamp with hand tools to force U-joint cups
out of yoke.
