9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.
FRONT GEARCASE SERVICE

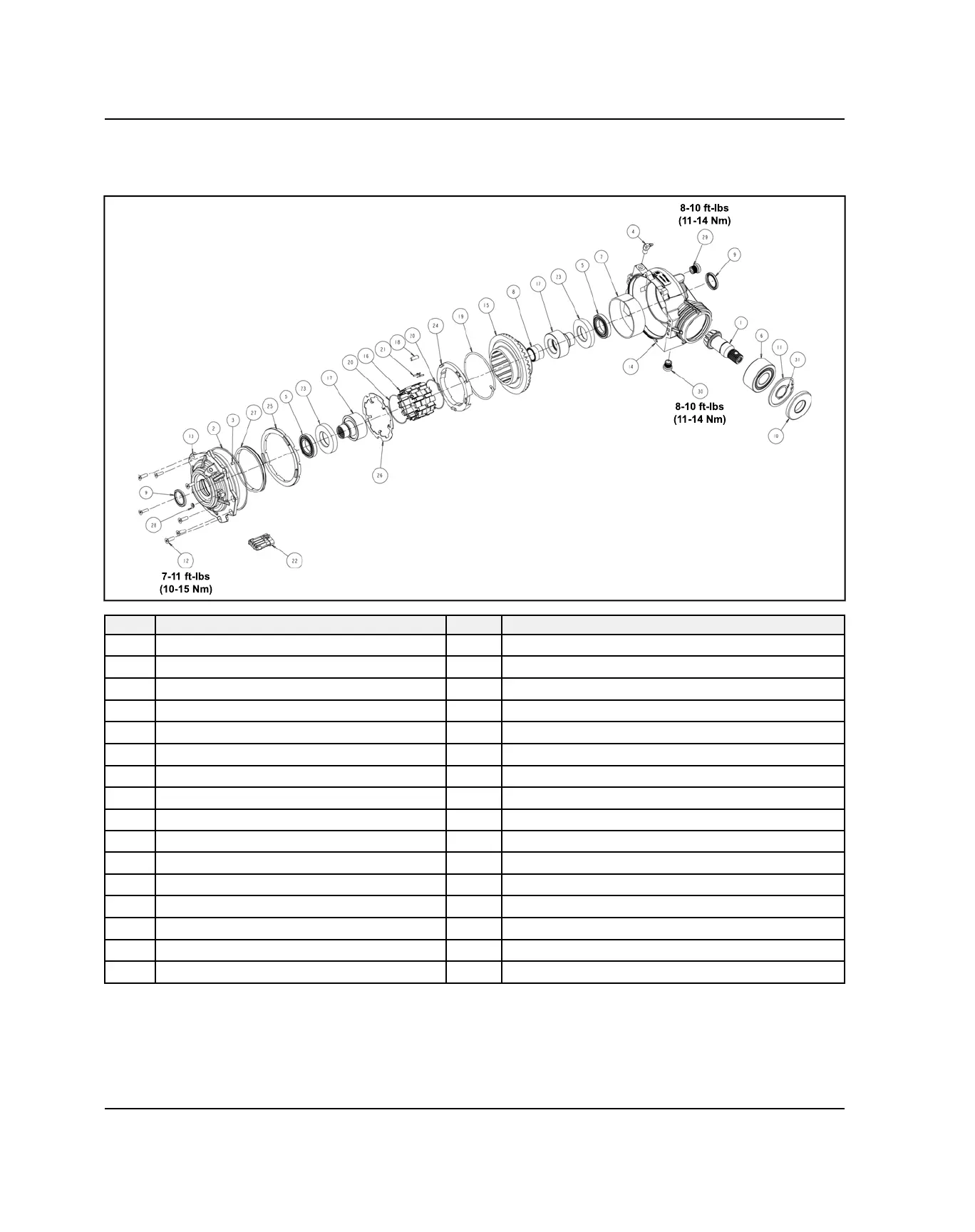

FRONT GEARCASE EXPLODED VIEW
REF DESCRIPTION REF DESCRIPTION
q
Pinion Gear
k
Hub Assembly
w
O-Ring
l
Rollers
e
Dowel Pin
1(
Torsion Spring
r
Vent Hose Fitting
2)
Spring, Wireform
t
Ball Bearing
2!
H-Clip Spring
y
Ball Bearing (Double Row)
2@
Connector Assembly
u
Bushing
2#
Nylon Spacer
i
Bushing
2$
Torsion Spring Retainer
o
Oil Seal
2%
Backlash Spacer
a
Oil Seal
2^
Armature Plate
s
Retaining Ring, Internal
2&
AWD Coil
d
Cover Screws, M6 (T30 Torx)
2*
Grommet
f
Cover Plate Assembly
2(
Fill Plug
g
Gearcase Housing
3)
Drain Plug, Magnetic
h
Clutch Housing (Ring Gear)
3!
Retaining Ring, External
j
Roll Cage
FINAL DRIVE
