STEERING ASSEMBLY SERVICE

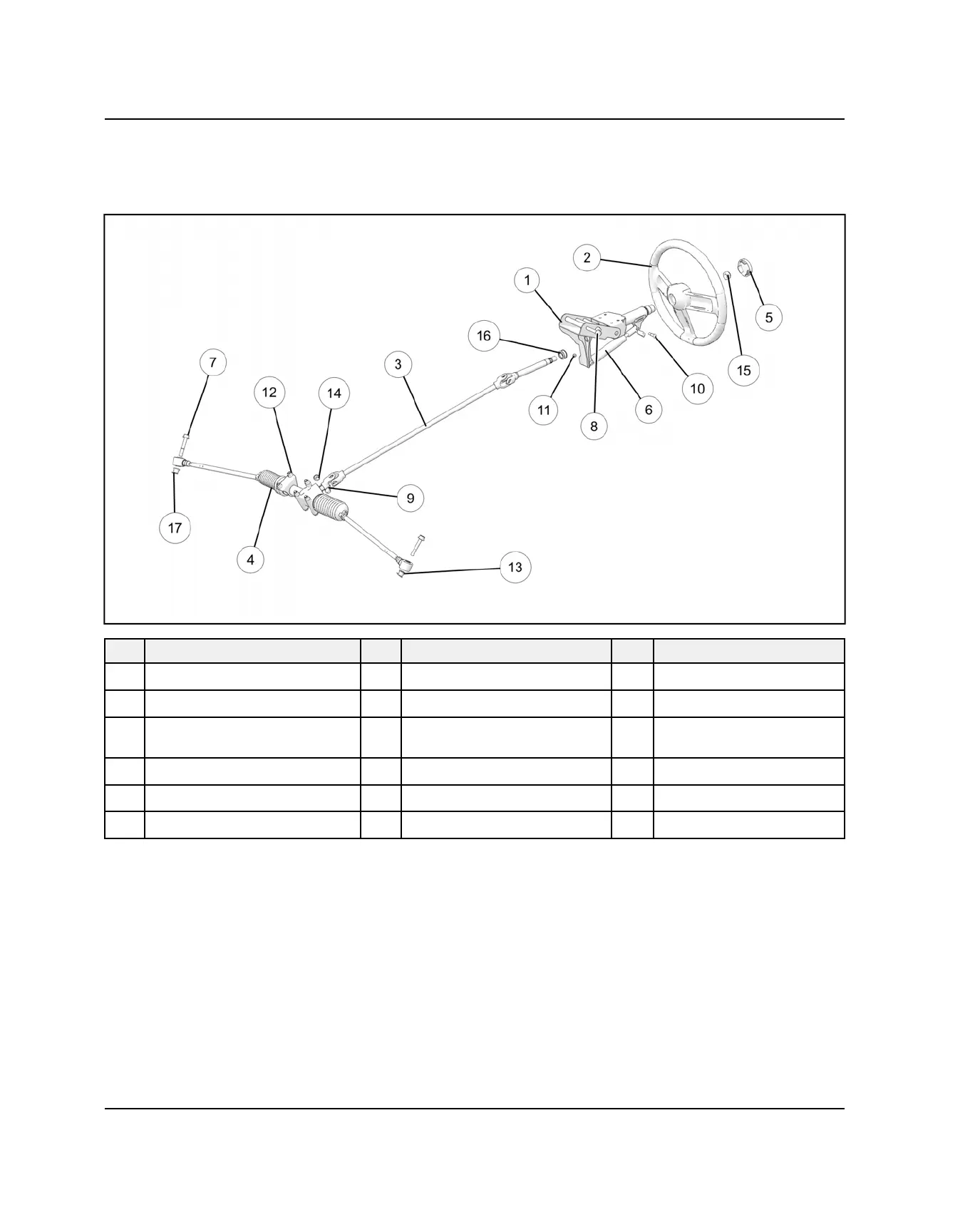

STEERING ASSEMBLY VIEW
Non-EPS Models
REF
PART DESCRIPTION
REF
PART DESCRIPTION
REF
PART DESCRIPTION
q
ASM, TILT STEERING
u
BOLT
f
NUT
w
WHEEL, STEERING
i
BOLT
g
NUT
e
SHAFT, STEERING, UPPER /
LOWER
o
SCREW
h
NUT
r
ASM, GEAR BOX, STEERING
a
BOLT
j
BUSHING, STEERING
t
CAP, STEERING WHEEL
s
NUT
k
PIN, COTTER
y
ASM, SHOCK, OIL LOCKING
d
NUT
