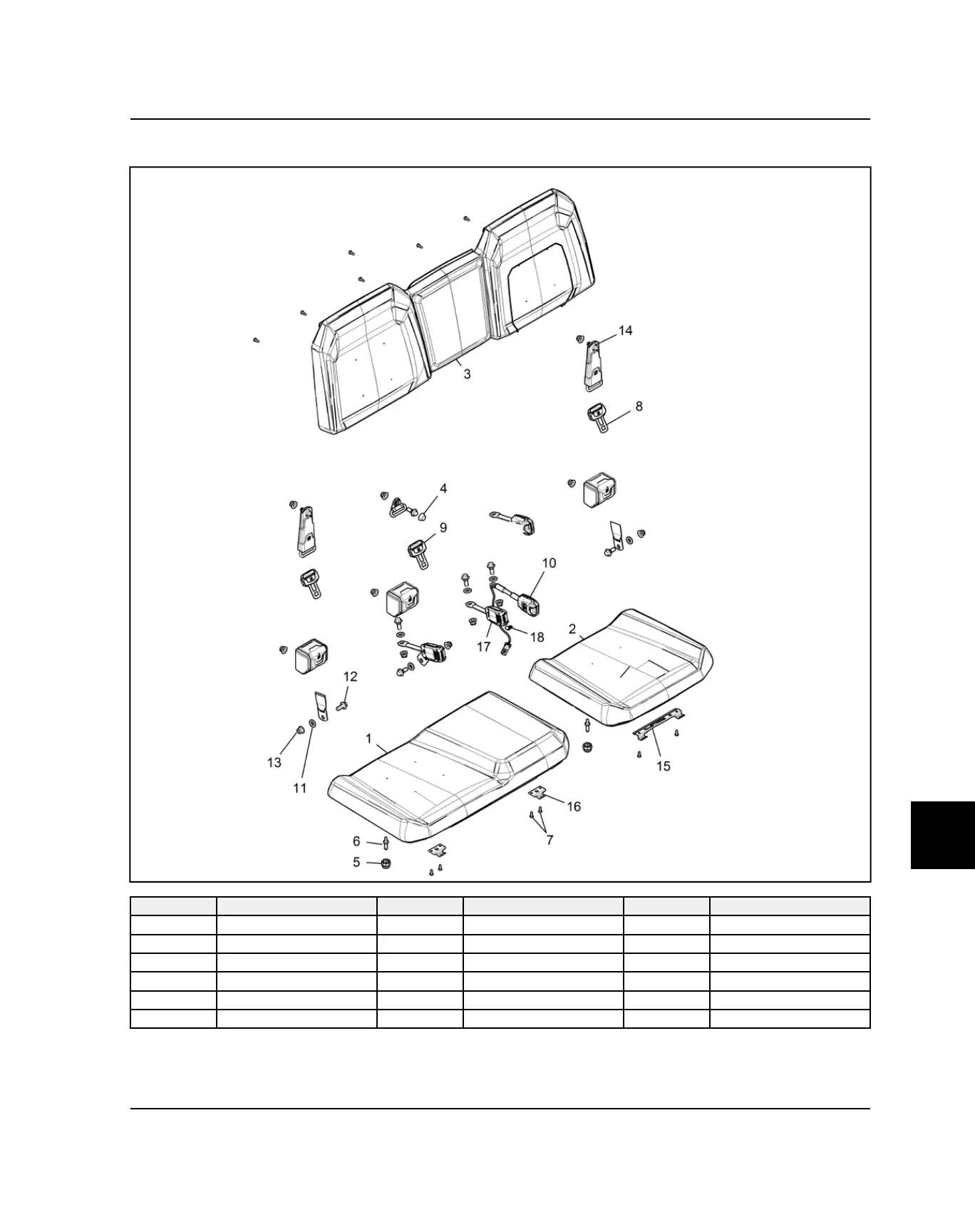

SEAT MOUNTING / SEAT BELTS
REF DESCRIPTION REF DESCRIPTION REF DESCRIPTION
q
ASM, SEAT BOTTOM
u
SCREW
f
NUT, FLANGE
w
ASM, SEAT BOTTOM
i
ASM, SEAT BELT
g
BUCKLE, SEAT BELT
e
ASM, SEAT BACK
o
ASM, SEAT BELT
h
CAP, BOLT HEAD
r
ASM, SEAT BACK
a
BUCKLE, SEAT BELT
j
BRACKET, SEAT HINGE
t
GROMMET
s
WASHER
k
CLAMP, WIRE/TUBE
y
PIN, SEAT LATCH
d
SCREW
