9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.
11.9

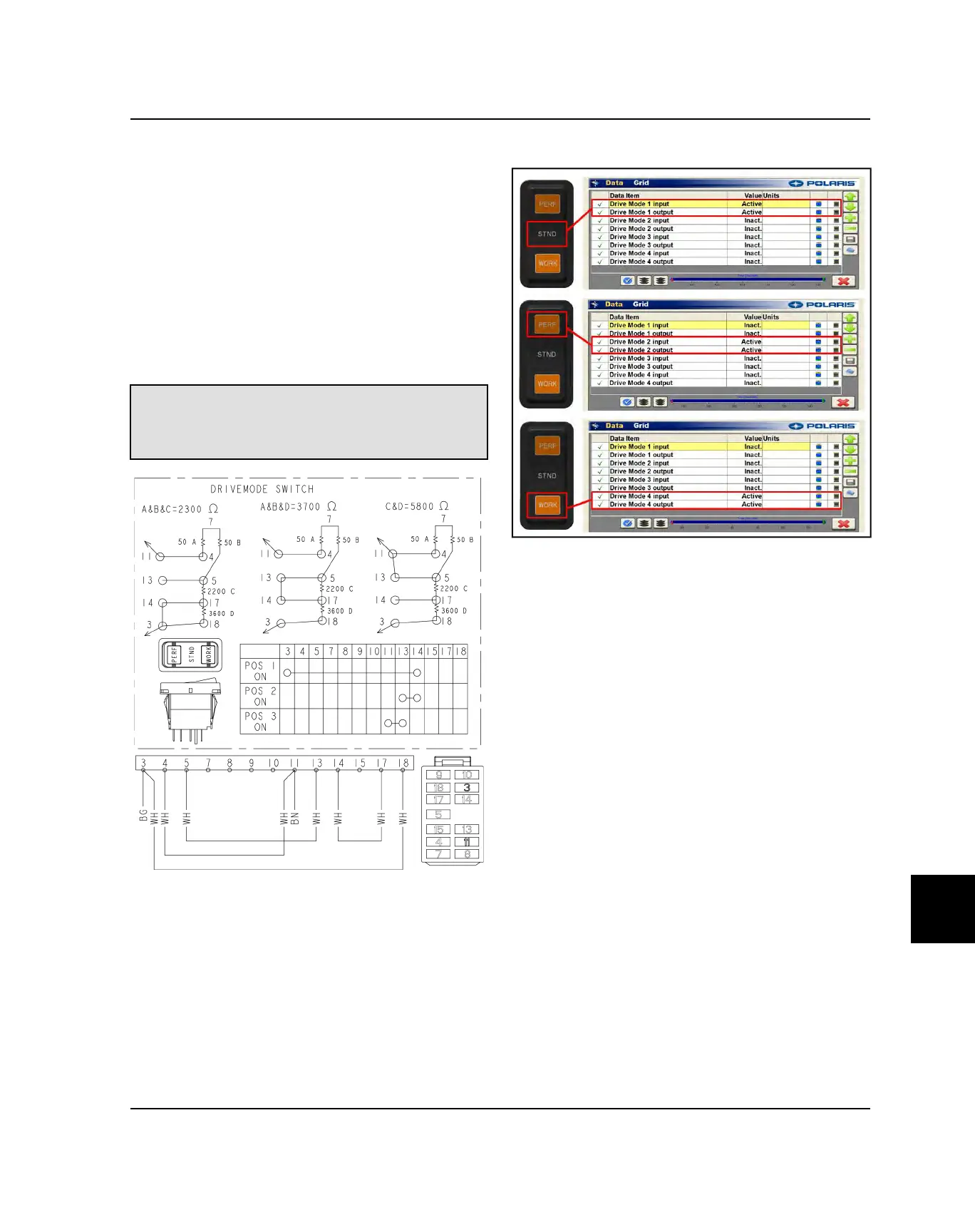

DRIVE MODE SWITCH
Some vehicle models are equipped with a drive mode
selection switch that alters throttle response and engine
power. The switch is located on the center dash.
If the drive mode switch is improperly functioning, the
switch will default to Standard mode.
1. Disconnect the drive mode switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test the resistance between pins 3 and 11.
3. If the resistance is out of specification for any mode,
replace the switch.
Drive Mode Switch
Performance: 2300 Ω
Standard: 3700 Ω
Work: 5800 Ω
Digital Wrench Values
ELECTRICAL
