FUEL LINES
FUEL LINE ROUTING
The fuel runs from the fuel tank to the fuel rail on the engine. The fuel line is routed from the fuel tank underneath the
driver seat and is secured to the electrical harness
q
. The fuel line then continues under the clutch outlet duct where it
connects to the fuel rail.
NOTICE

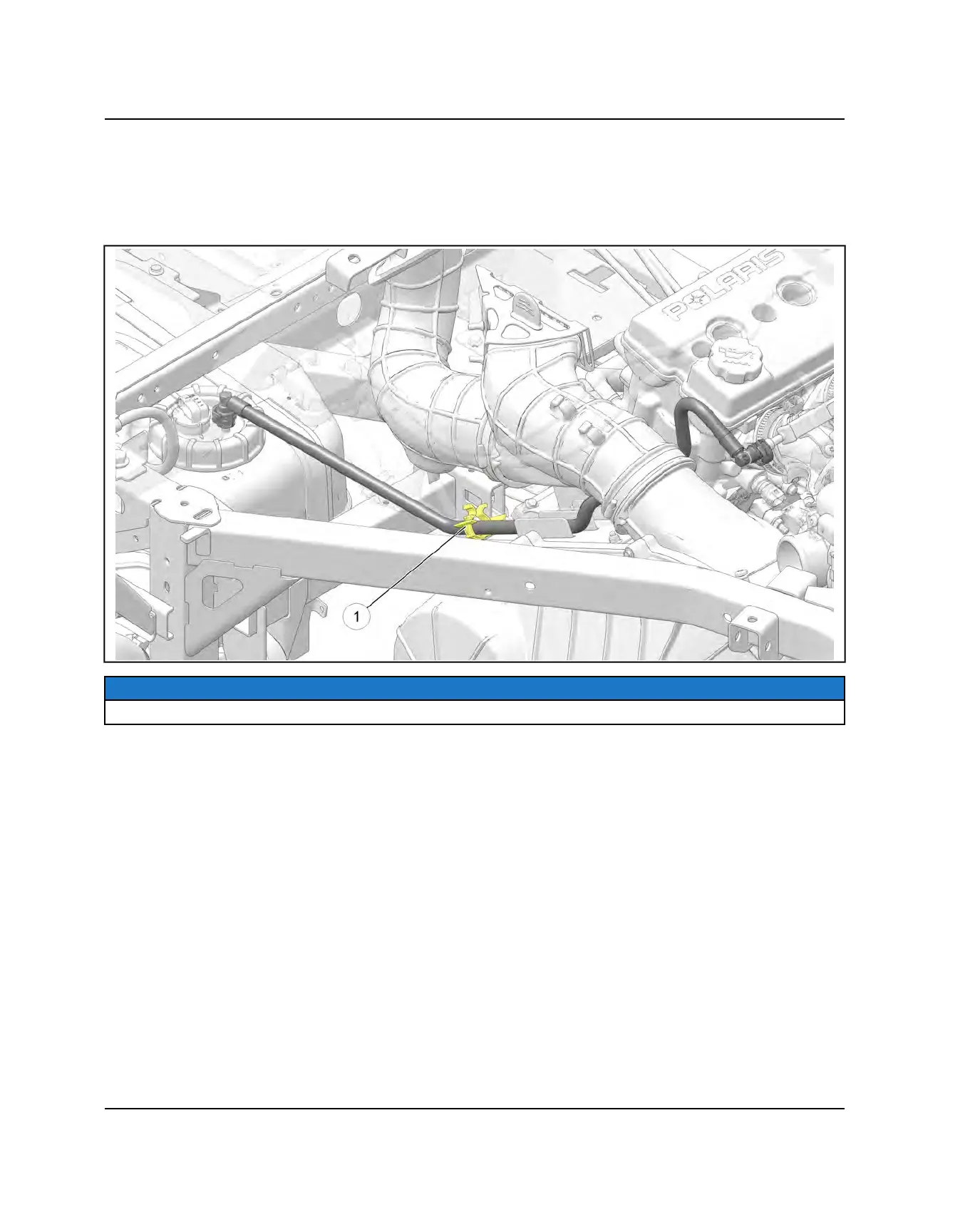

Image orientation is from the rear driver-side of the vehicle with the cargo box in the raised position.
