Polaris RANGER XP 1000 2018-2019

8.14
9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.

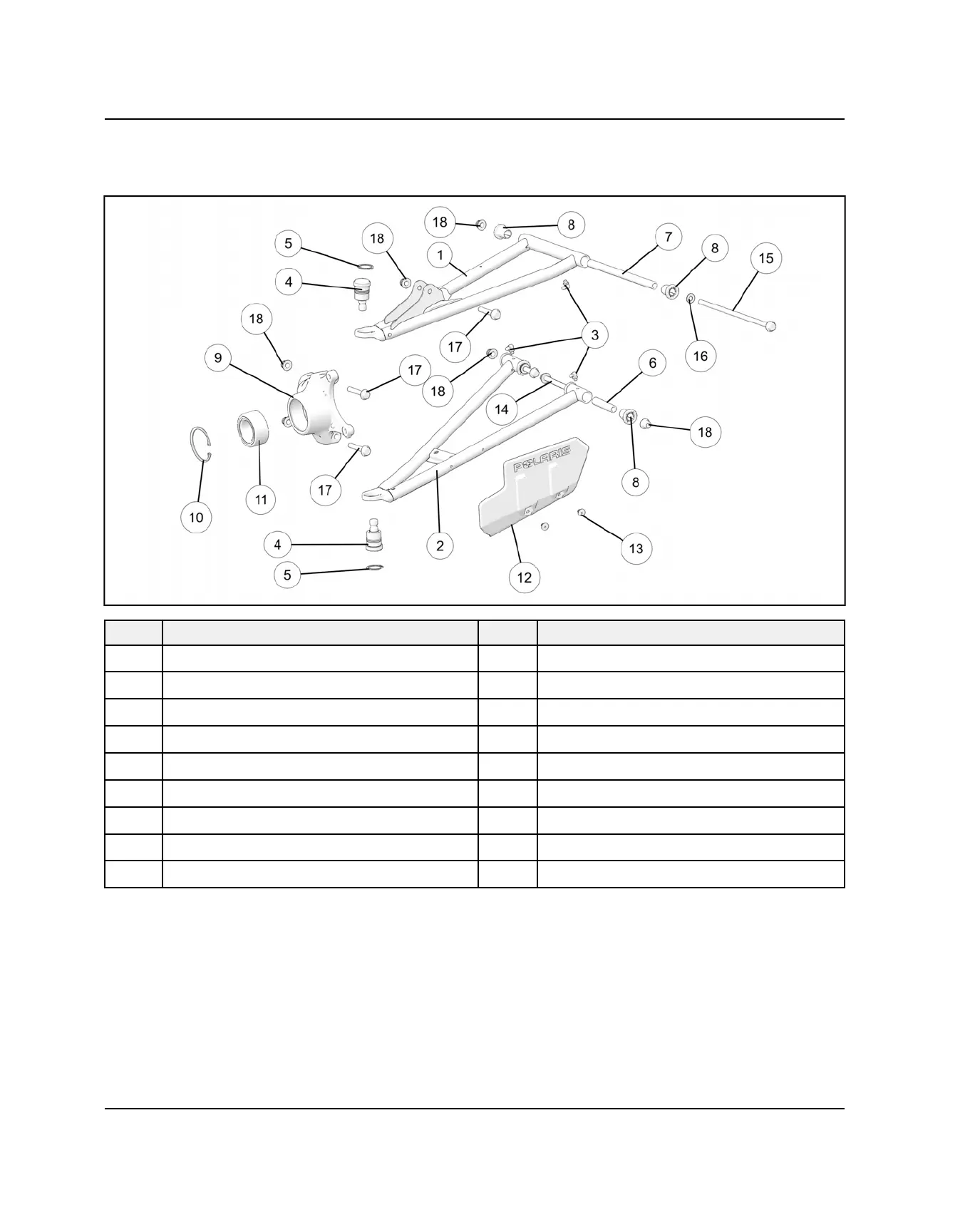

FRONT A-ARM SERVICE
ASSEMBLY VIEW
REF
PART DESCRIPTION
REF
PART DESCRIPTION
q
A-ARM, FRONT UPPER
a
RING, RETAINING INT
w
A-ARM, FRONT LOWER
s
BEARING, BALL SEALED
e
FITTING, ZERK
d
SHIELD, CV
r
JOINT, BALL
13 RIVET
t
RING, RETAINER EXT
14 SCREW
y
SHAFT, PIVOT
15 SCREW
u
SHAFT, PIVOT
16 WASHER
i
BUSHING 17 SCREW
o
CARRIER, BEARING
18
NUT, FLANGE
STEERING / SUSPENSION
