STATOR COVER INSTALLATION
1. Apply gasket tack adhesive to help hold gasket in
place during assembly.
2. Install a new stator cover gasket over alignment pins.
CAUTION
The flywheel contains powerful magnets. Use caution
when removing and installing the stator cover. DO NOT
place fingers between cover and crankcase at any time
during the removal / installation process or injury could
result.

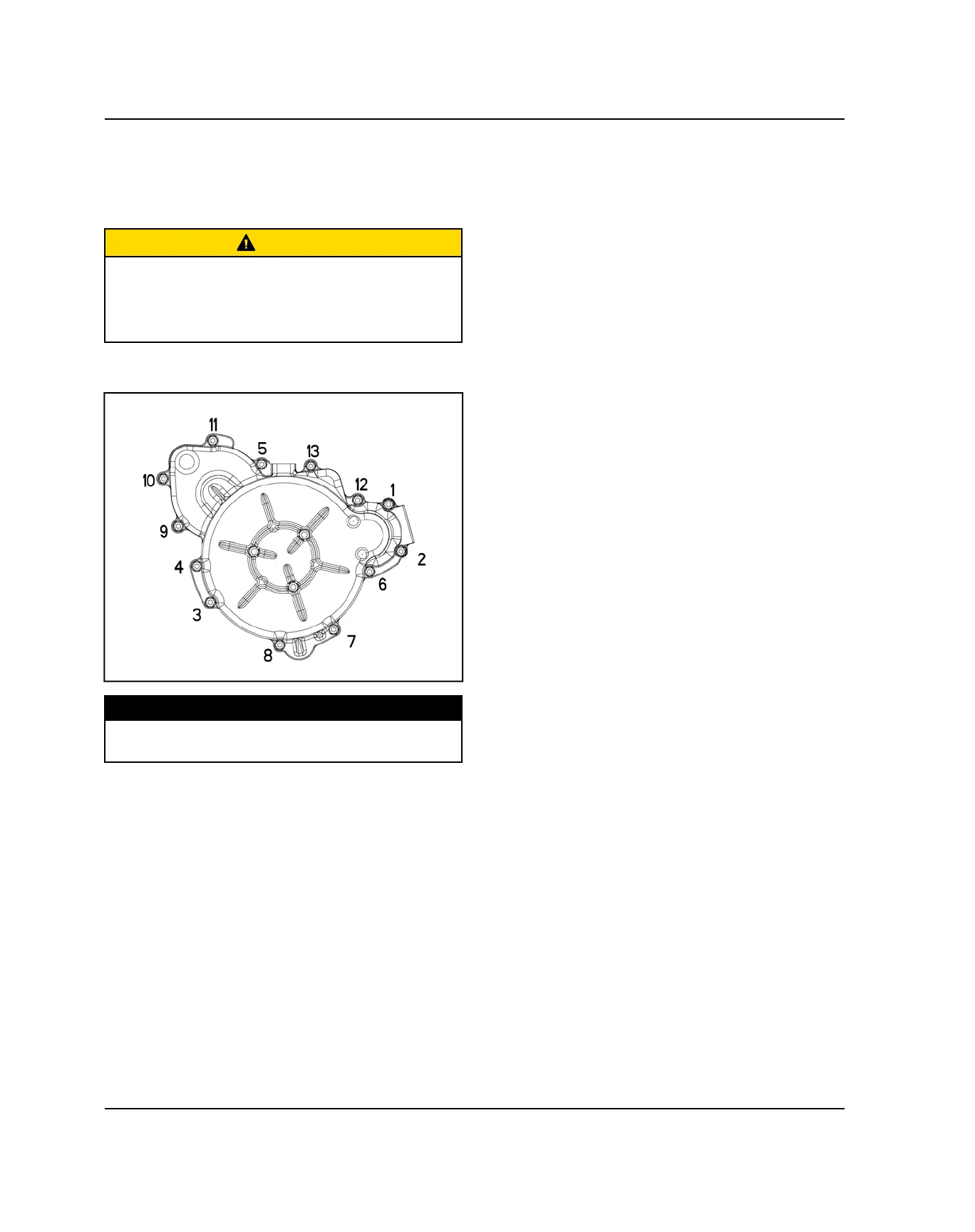

3. Install stator cover and thirteen screws. Torque
screws in sequence to specification.
TORQUE
Stator Cover Screws:
9 lb-ft (12 Nm)
