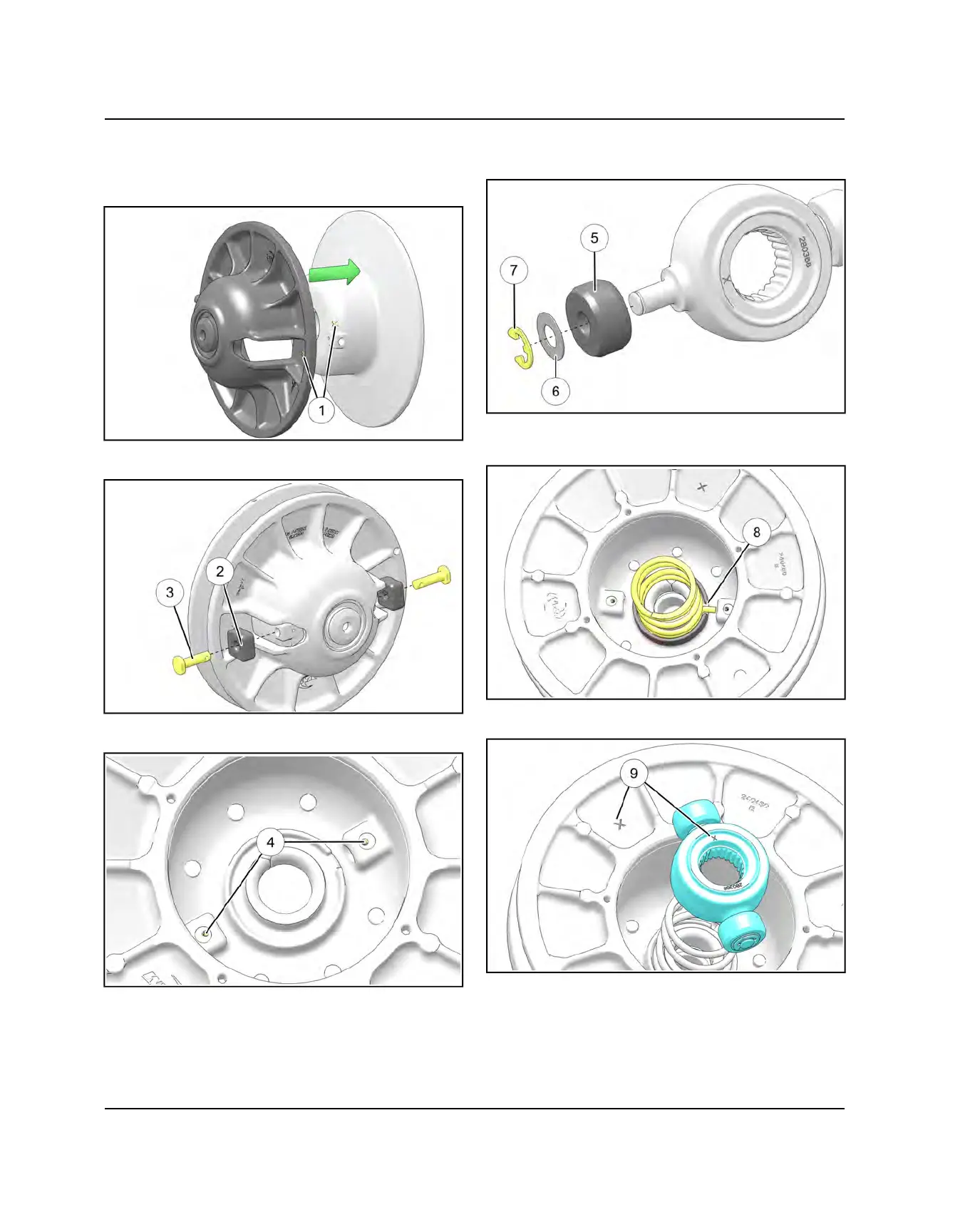

DRIVEN CLUTCH ASSEMBLY
1. Align the X’s
q
on the moveable and stationary
sheaves.
2. Install the square sliders
w
and slider pins
e
.
3. Install the spring pins
r
to retain the slider pins.
4. If removed, install the rollers
t
, washers
y
and E-
clips
u
onto the spider.
5. Install the spring so the arm
i
rests into the notch in
the moveable sheave.
6. Align the X’s
o
on the spider and moveable sheave.
