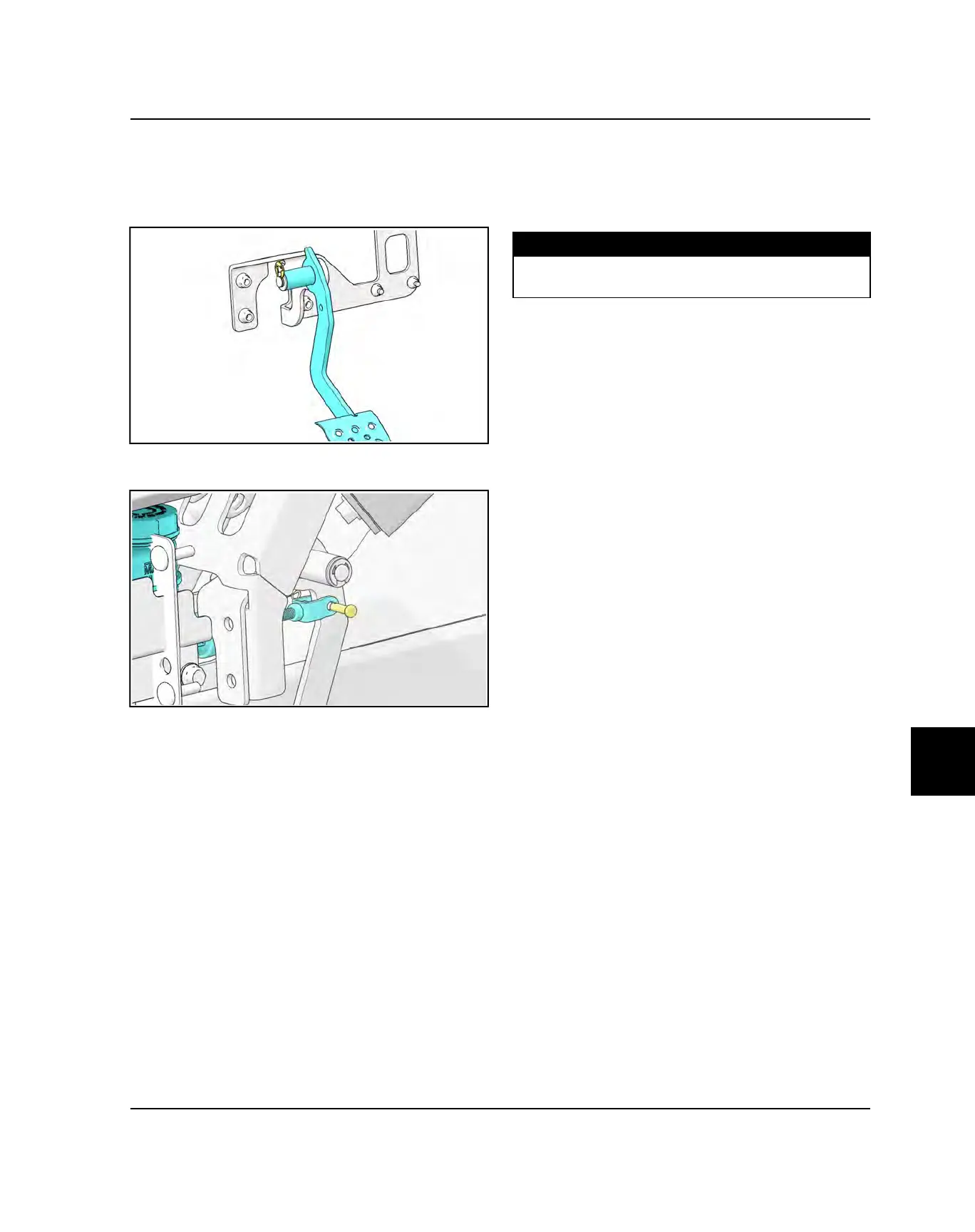

FOOT BRAKE PEDAL SERVICE
BRAKE PEDAL REMOVAL
1. Remove the clip from the end of the pedal mount
bracket.
2. Remove the retaining clip and clevis pin from the
master cylinder to free it from the brake pedal.
3. Slide the brake pedal and bushings off the pedal
mount bracket.
INSTALLATION
1. If the pedal mount bracket (B) was removed, torque
retaining nuts (H) to specification.
TORQUE
Brake Pedal Mount Bracket Nuts:
18 lb-ft (24 Nm)
2. Reverse “Removal” steps 1-3 to complete foot brake
installation.
3. Use new retaining clips upon installation.
