9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.
10.21

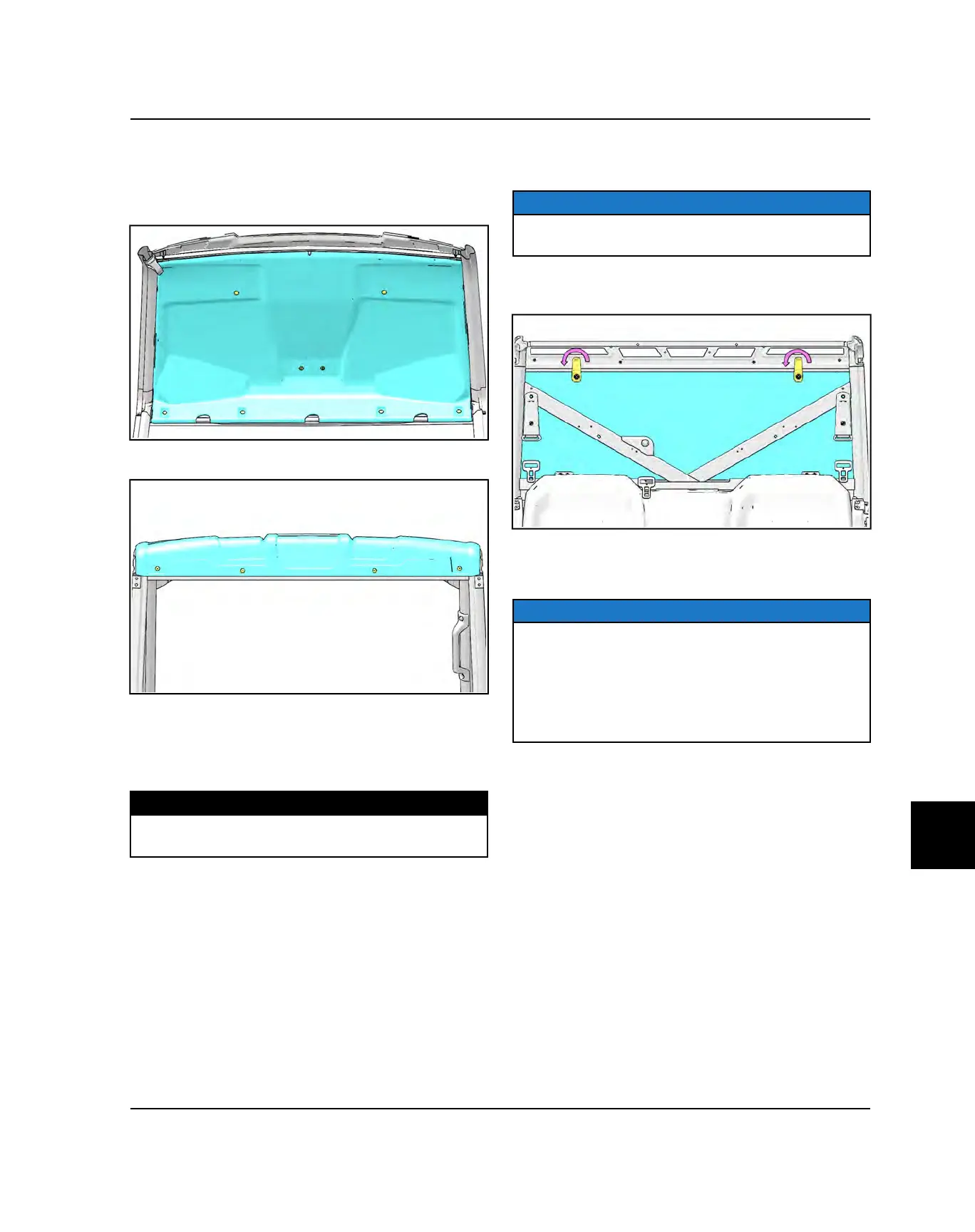

ROOF REMOVAL / INSTALLATION (PKG
ONLY)
1. Remove the clips and fasteners holding the headliner
to the roof. Remove the headliner.
2. Remove the fasteners holding the roof to the frame.
3. Pull the rear of the roof out firmly and lift it up. Slide
the roof forward and off the vehicle.
4. For installation, reverse removal procedure. Torque
the fasteners to specification.
TORQUE
Roof Fasteners:
12–15 lb-in (1.35–1.7 Nm)
REAR PANEL REMOVAL / INSTALLATION
(PKG ONLY)
NOTICE
Two people should work together to remove and install
the rear panel windshield.
1. Rotate the LOCK & RIDE handles counterclockwise
into the unlocked position
2. Rotate the top of the rear window slightly away from
the vehicle, then lift the windshield up and away from
the vehicle.
NOTICE
Store windshield in an upright position in a location
where it will not be bumped into and where it will not be
subject to things falling on it. Polaris recommends that
the lower frame of the glass be set onto a wood or other
semi-soft support structure to prevent unexpected
movement and potential breakage of the window during
storage.
3. Reverse the removal procedure for installation. Turn
the LOCK & RIDE handles clockwise to the locked
position to secure the windshield.
BODY / FRAME
