6.8
9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.
TRANSMISSION SERVICE
TRANSMISSION REMOVAL
WARNING
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this
procedure. Always wear eye protection.
1. Disconnect the (-) negative battery cable from the
battery.
2. Remove the rear cargo box from the vehicle. Refer to
“Cargo Box Removal”page 10.27 procedure.
3. Raise and support the vehicle.
4. Remove the front propshaft. Refer to “Front
Propshaft Removal / Installation”page 7.9
procedure.
5. Remove both rear drive shafts from the transmission.
Refer to “Rear Drive Shaft Removal”page 7.38
procedure.
6. Remove the outer clutch cover, drive and driven
clutch and inner clutch cover. Refer to PVT
Disassemblypage 5.9 procedure.
NOTICE
Be sure to use the correct Drive Clutch Puller:
2872085) to prevent damage to crankshaft.

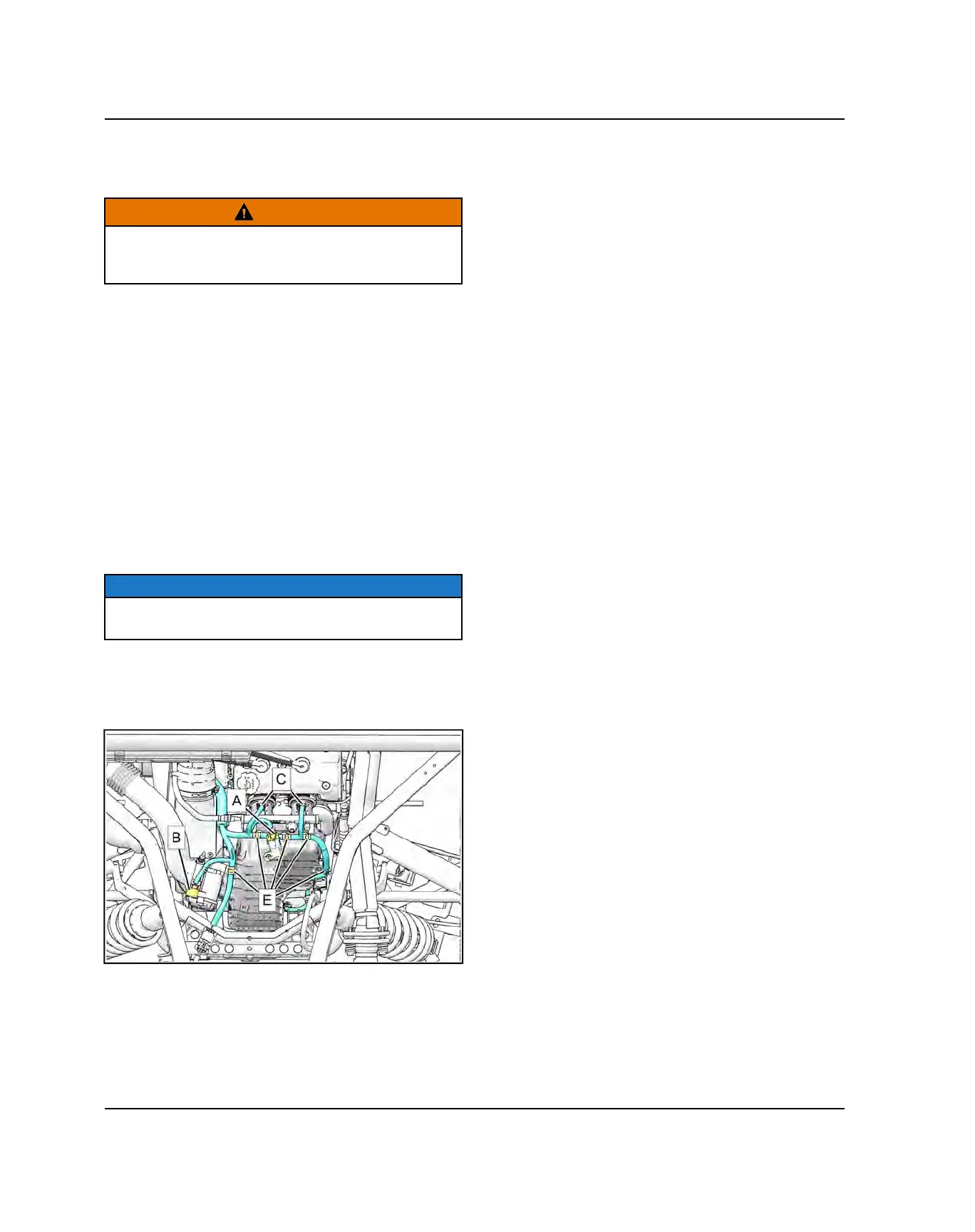

7. Disconnect the harness from the T-MAP sensor (A),
ETC (B), fuel injectors (C), rear differential relay and
solenoid (D). Remove the five plastic tie straps (E)
retaining the harness to the intake plenum.
TRANSMISSION
