6.9

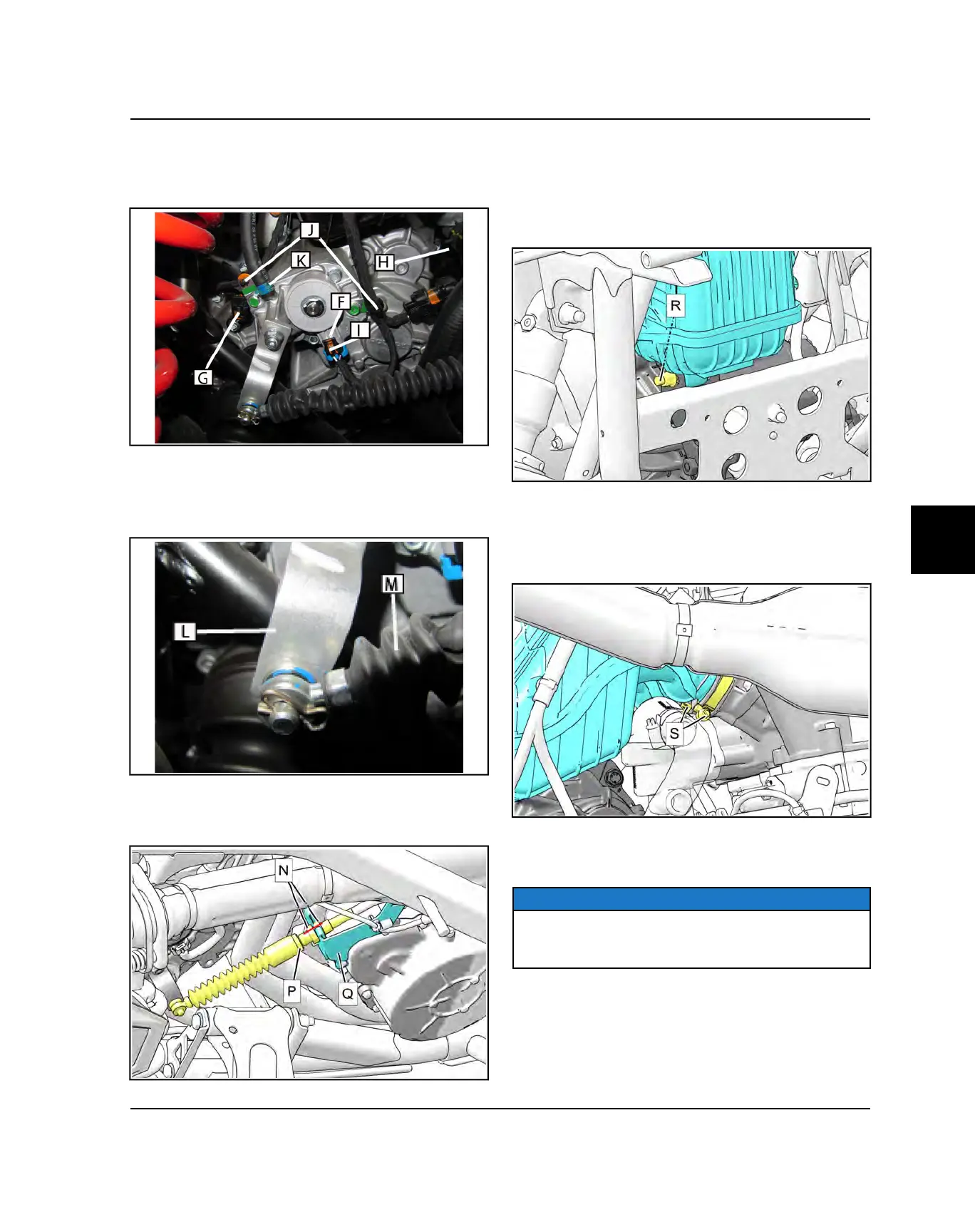

8. Disconnect CPS (F), vehicle speed sensor (G), ECT
sensor (H) and transmission switch (I). Remove the
tie straps (J) retaining the harness to the
transmission.
9. Remove the vent line (K) from the transmission fitting.
10.Disconnect the transmission shift cable (L) by
removing the clip (M) and sliding the washer and shift
cable off the bellcrank.
11. Mark the location of the upper shift cable jam nut (N).
Loosen the lower jam nut (P) and remove the shift
cable assembly from the bracket (Q).
12.Relieve pressure from the fuel rail. Disconnect the
fuel line at the fuel rail wrap the ends with a clean rag
to assure no dirt gets in the fuel system.
13.Using a 13mm socket and wrench, remove the
fastener (R) securing the bottom of the intake plenum
to the rear transmission mount.
14.Using a long screwdriver, loosen both hose clamps
(S) that retain the intake plenum runners to the
cylinder head intake adapters. Remove the intake
plenum and electronic throttle control as an
assembly.
15.Use an overhead or portable hoist to support the
transmission by securing a strap (T) through the rear
mount.
NOTICE
Place a spacer or support between the vehicle frame
and engine to hold the engine up in position while
removing the transmission to engine mounting bolts.
16.Using a 15 mm socket, remove the four bolts from the
left side (U) and right side (V), securing the
transmission to the engine.
TRANSMISSION
