9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.

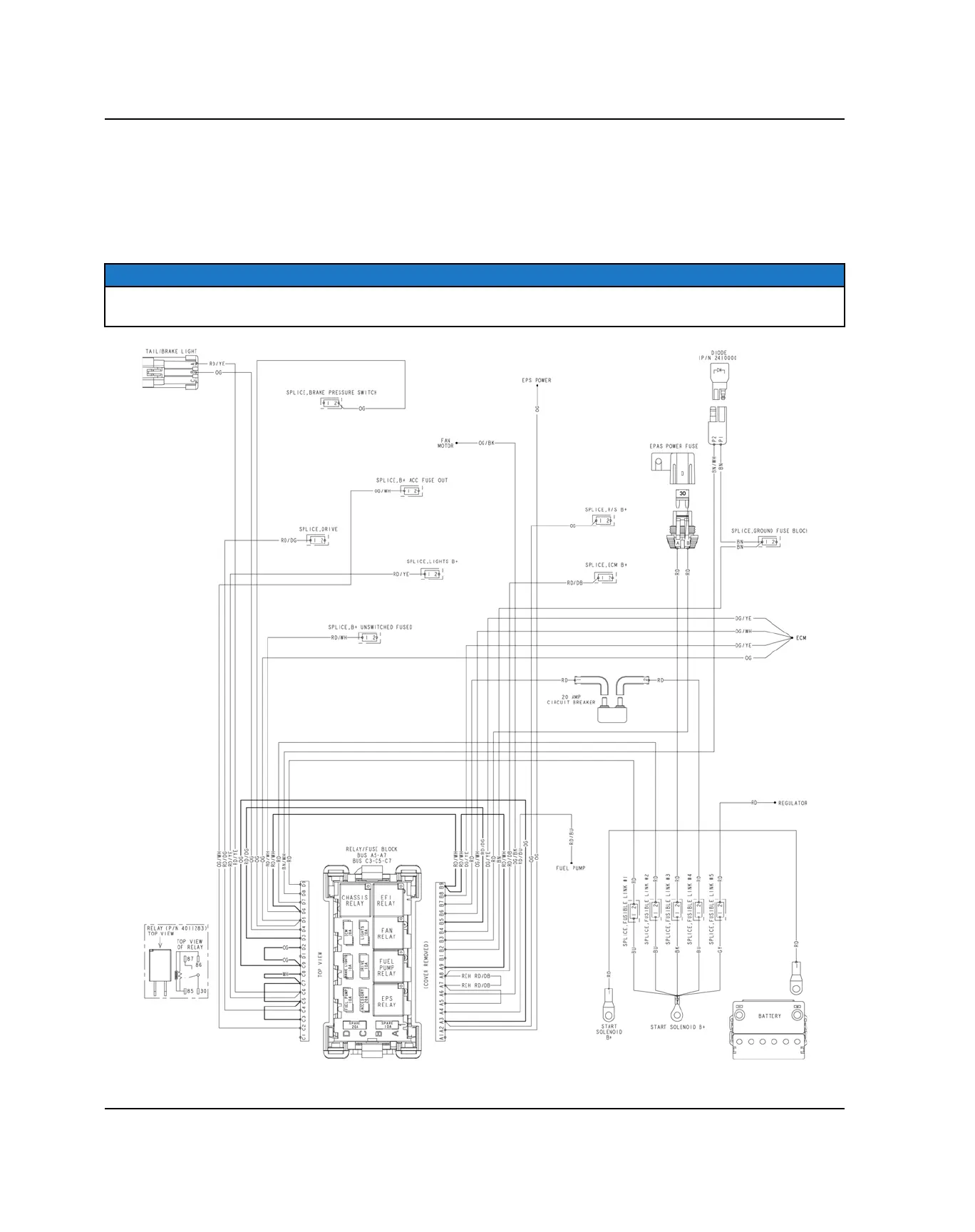

FUSE BOX: FUSES / RELAYS / CIRCUIT BREAK SERVICE
OVERVIEW / OPERATION
Located in the fuse box under the passenger seat, the fuses provide overload protection for wiring and components
such as the instrument cluster, ECU, EFI system, main harness, lights and accessories. The relays assist with
component operation like the cooling fan, fuel pump, EFI system, and drive system. A separate 20-amp circuit breaker,
located near the fuse/relay box, protects the fan motor circuit.
NOTICE
EPS models have a separate electrical system which includes a 30-amp fuse and relay. Refer to “EPS System
Breakout”page 11.51 for EPS electrical component details.
ELECTRICAL
