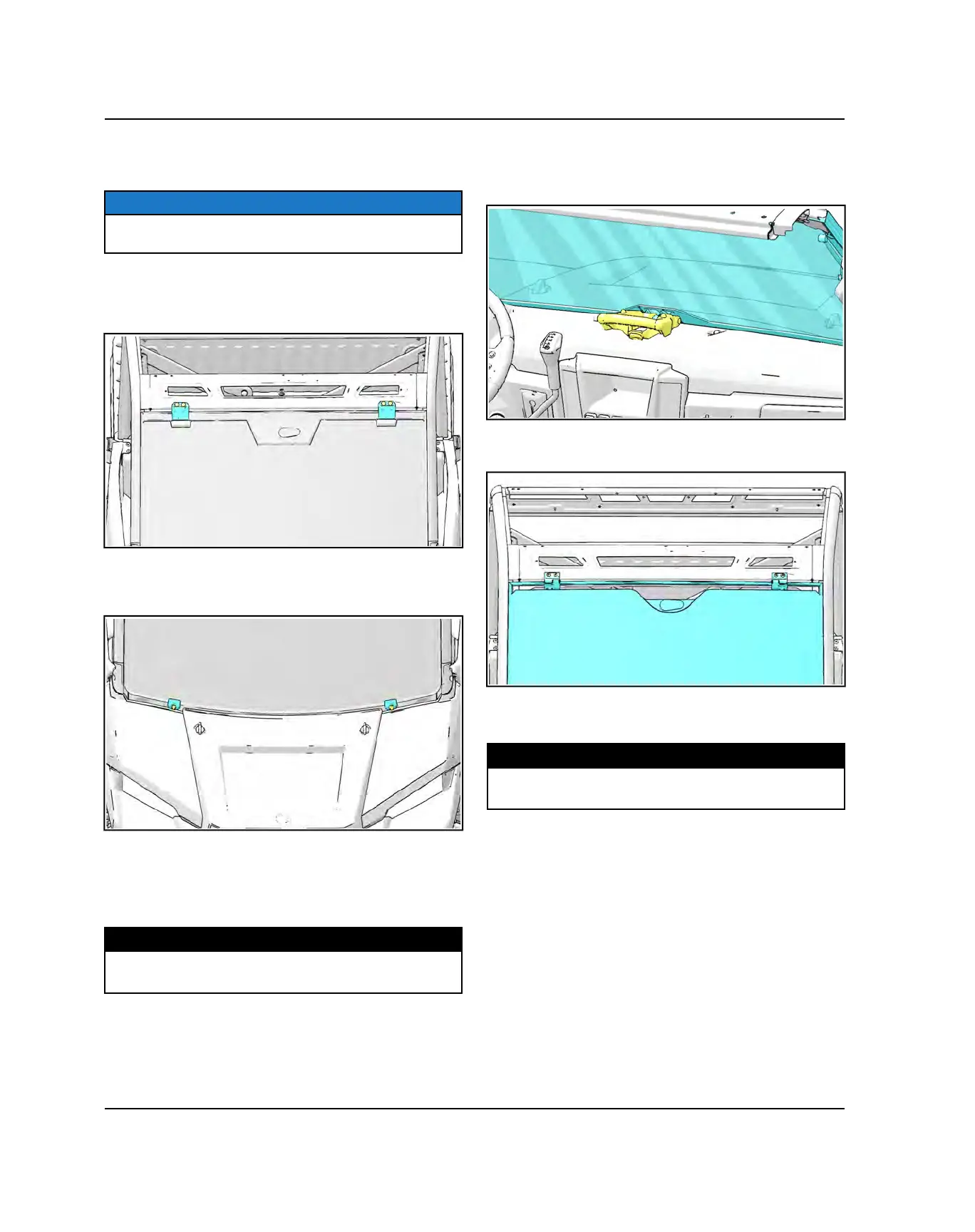

WINDSHIELD REMOVAL / INSTALLATION
(PKG ONLY)
NOTICE
Two people should work together to remove and install
the windshield.
Windshield Removal / Insallation
1. Remove the fasteners holding the top windshield
mounts to the frame.
2. Carefully tilt the top of the windshield out and remove
the fasteners holding the bottom windshield mounts
to the frame.
3. Lift the windshield off the vehicle and store in an
upright position.
4. For installation, reverse removal procedure. Torque
windshield mount fasteners to specification.
TORQUE
Windshield Mount Fasteners:
15 lb-ft (20 Nm)
Tip Out Windshield Removal / Insallation
1. Disconnect the tip out handle at the base of
windshield.
2. Remove the fasteners that hold the top mounting
brackets to the frame.
3. For installation, reverse removal procedure. Torque
windshield mount fasteners to specification.
TORQUE
Tip Out Windshield Mount Fasteners:
20 lb-ft (27 Nm)
BODY / FRAME
