PVT SYSTEM SERVICE

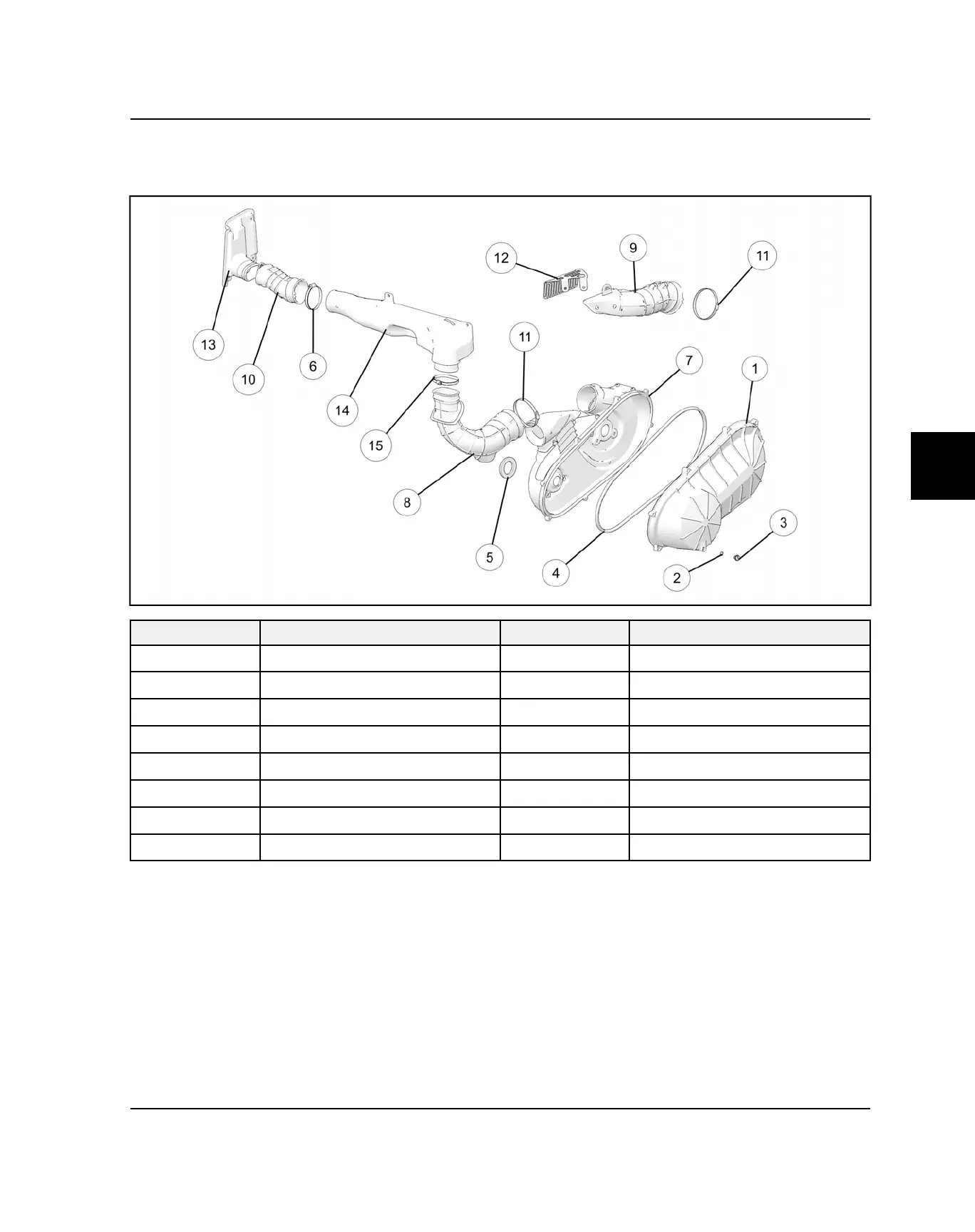

PVT COVERS AND DUCTING COMPONENTS
REF
DESCRIPTION
REF
DESCRIPTION
q
OUTER CLUTCH COVER
o
HOSE, CLUTCH AIR OUTLET
w
O-RING
a
HOSE, CLUTCH INTAKE
e
PLUG, DRAIN
s
CLAMP, WORM DRIVE
r
SEAL, OUTER
d
BRACKET, SCREEN BELT
t
SEAL, COVER
f
INTAKE, FENDER REAR
y
CLAMP, NARROW
g
DUCT, CLUTCH INTAKE
u
INNER CLUTCH COVER
h
CLAMP, BAND
i
HOSE, CLUTCH AIR INLET
