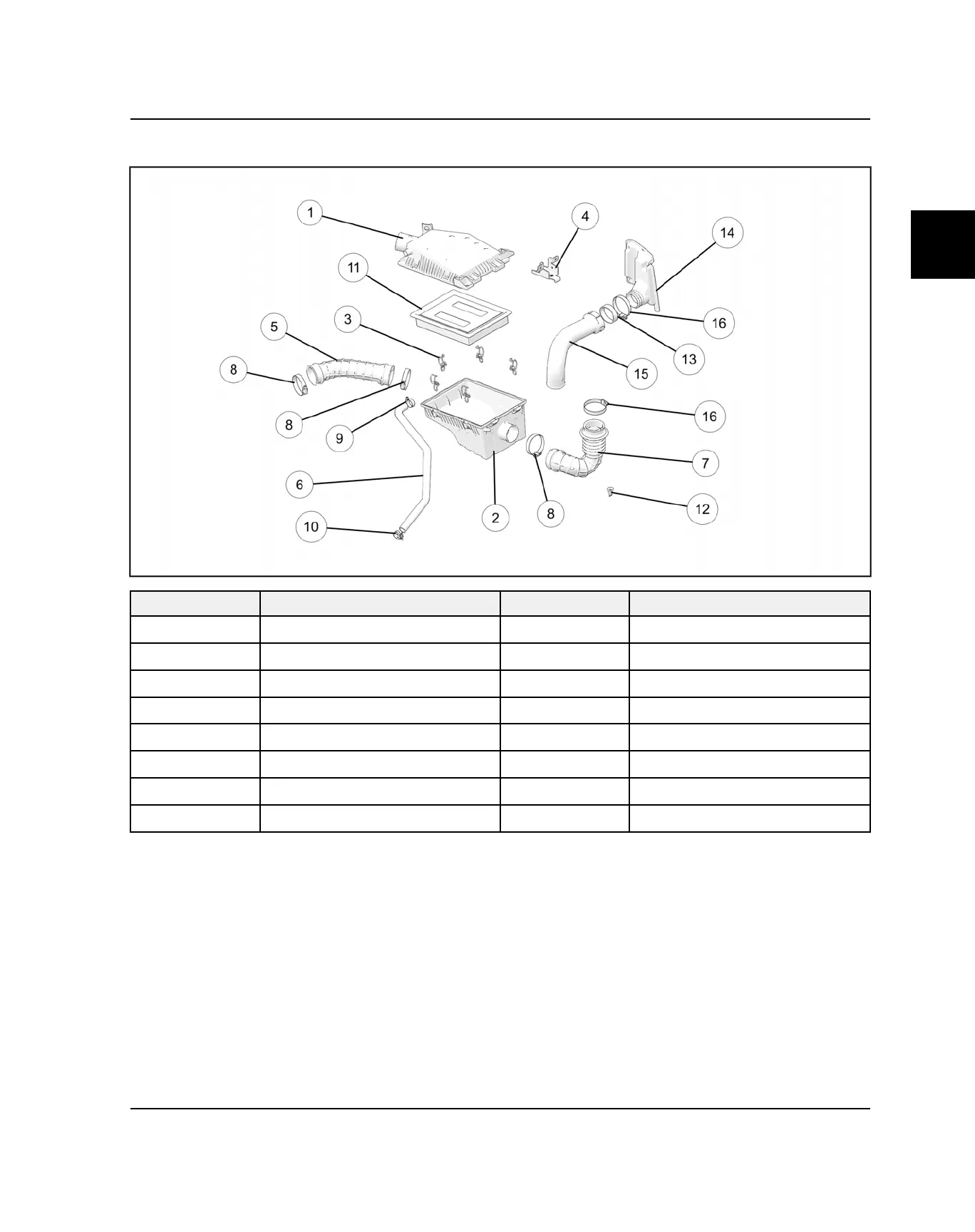

ENGINE AIR INTAKE EXPLODED VIEW
REF
DESCRIPTION
REF
DESCRIPTION
q
LID, AIRBOX
o
CLAMP, HOSE
w
BASE, AIRBOX
a
CLAMP, SPRINGBAND
e
CLIP, AIRBOX
s
FILTER, MAIN AIRBOX
r
BRACKET, AIRBOX MOUNT
d
PLUG, DRAIN
t
HOSE, ENGINE INTAKE
f
HOSE, INTAKE BOOT
y
HOSE, ENGINE VENT
g
FENDER, INTAKE REAR
u
HOSE, AIRBOX INTAKE
h
DUCT, AIR INTAKE
i
CLAMP, HOSE
j
CLAMP, HOSE
