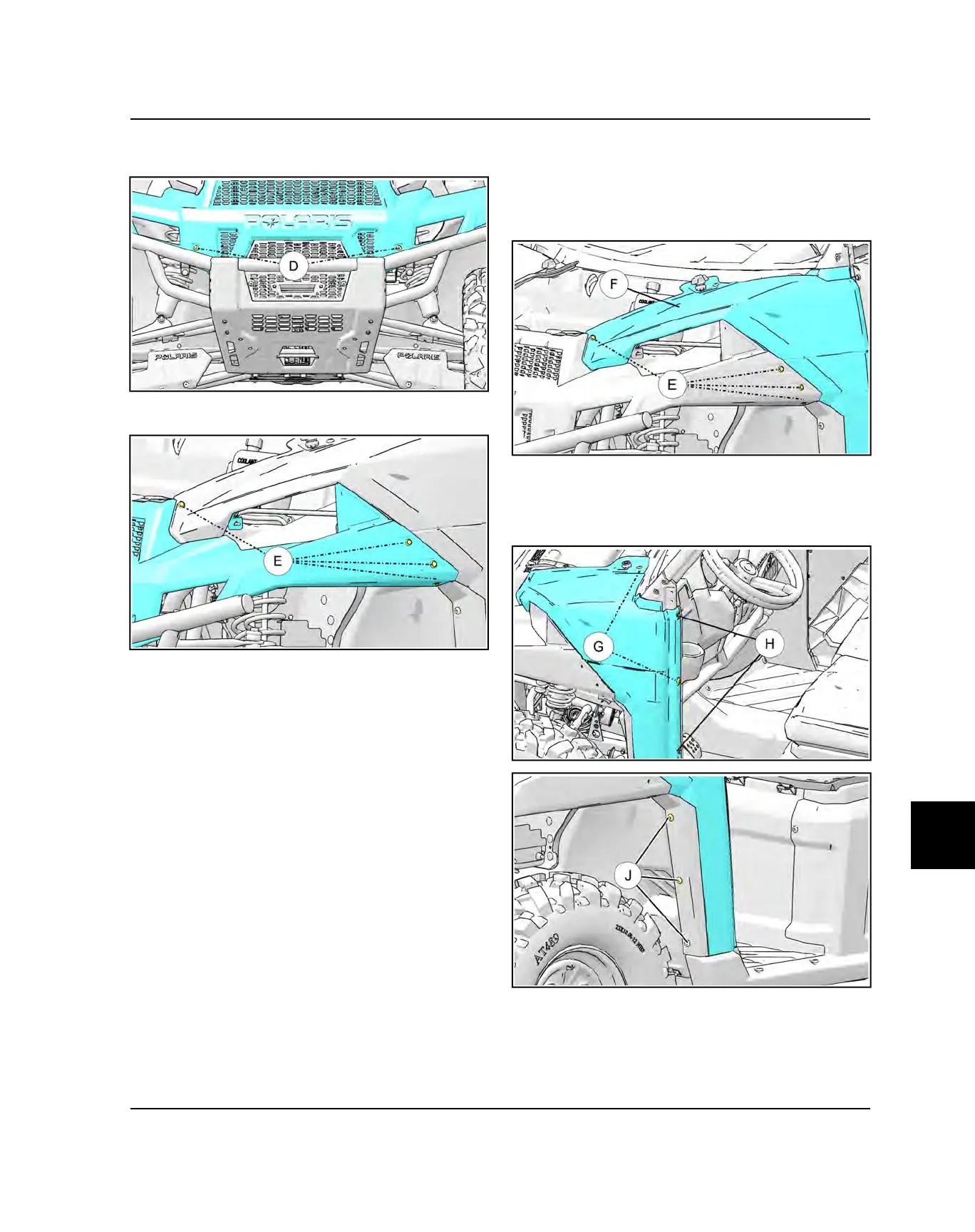

4. Remove the two T-40 Torx-head screws (D) retaining
the front fascia to the frame.
5. Remove the push rivets (E) retaining the front fascia
to the front fenders on each side.
6. Carefully pull the front fascia straight out to remove it
from the vehicle.
FRONT FENDERS REMOVAL
1. Remove the hood. Refer to “Hood Removal”page
10.28 procedure.
2. Remove the push rivets (E) retaining the front fascia
to the front fender (F).
3. Remove the two T-40 Torx-head screws (G) and two
push rivets (H) retaining the top and rear portion of
the fender. Remove the three T-40 Torx-head screws
(J) retaining the front portion of the fender to the
frame.
