Polaris RANGER XP 1000 2018-2019

5
9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.
5.25
DRIVEN CLUTCH SERVICE (NON-EBS)
CLUTCH DISASSEMBLY / INSPECTION
(NON-EBS)
CAUTION
Wear eye protection when removing compression
spring to prevent serious personal injury.
1. Remove driven clutch from transmission input shaft.

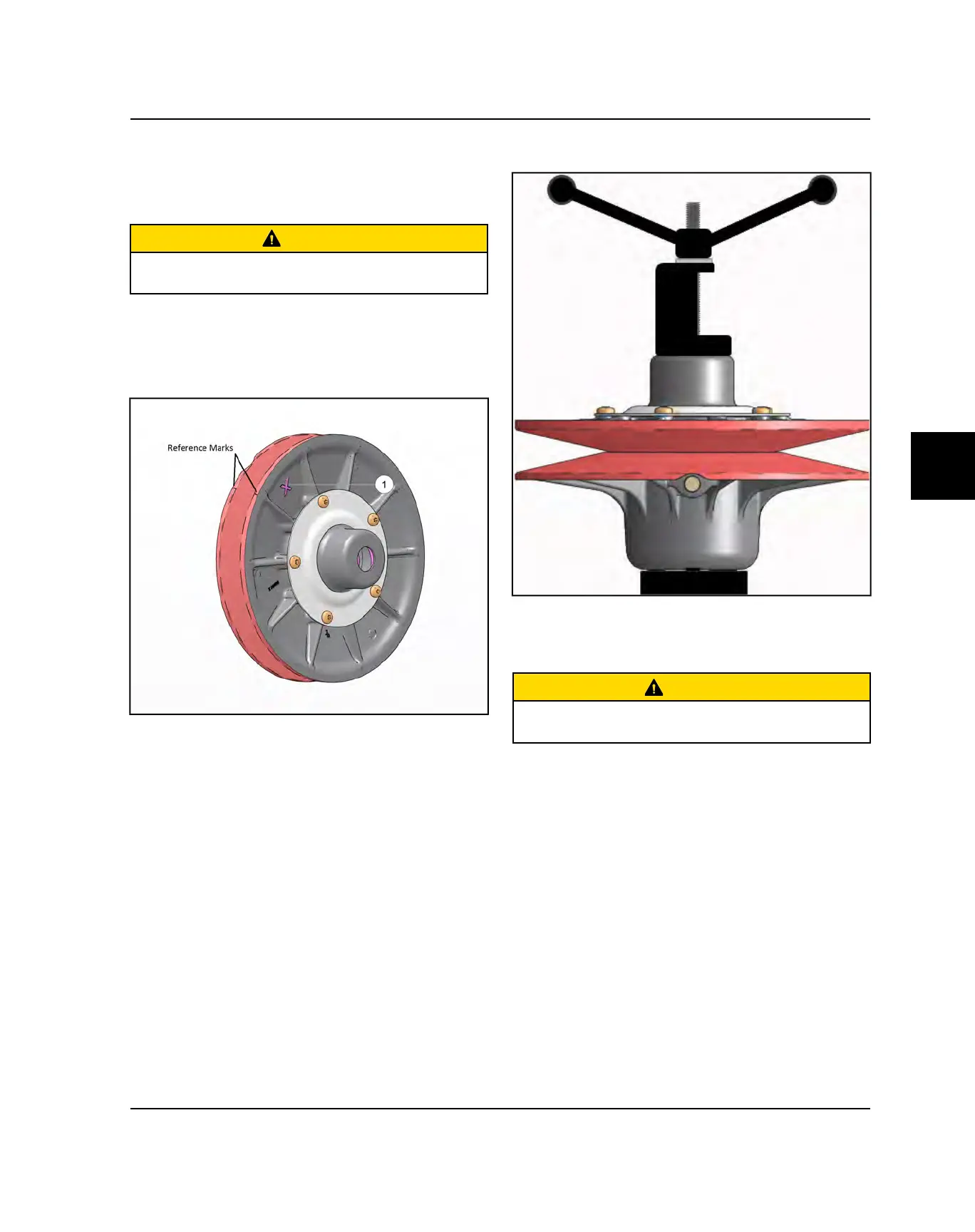

2. Mark the position of the clutch sheaves before
disassembly or use the X’s
q
on the sheaves for
reference. This aids in reassembly and maintains clutch
balance after reassembly.
3. Place the driven clutch into the Universal Clutch
Compressor PU-50518. Spin the compressor tool handle
down to apply downward pressure on the spring cup (C).
4. Carefully remove the spring cup retainer plate
fasteners (B) with a T30 Torx driver. Remove the
compressor tool from the clutch assembly.
CAUTION
The spring cup (C) and spring retainer plate (A) are
under spring pressure.
PVT SYSTEM
