Polaris RANGER XP 1000 2018-2019

3
9929399 R01 - 2018-2019 RANGER XP/ CREW 900/1000 Service Manual
© Copyright Polaris Industries Inc.
3.91
14. If timing marks are not aligned, remove sprockets
and correct alignment.
15. Remove the Cylinder Holding & Camshaft Timing
Plate (PU-50563) from the end of the camshafts.
16. Rotate the engine using the flywheel and install the
remaining bolt in each camshaft sprocket. Torque the
sprocket bolts to specification.
TORQUE
Camshaft Sprocket Bolts:
14 ft-lb (19 Nm)
17. Rotate the engine using the flywheel and torque the
remaining sprocket bolts to specification.

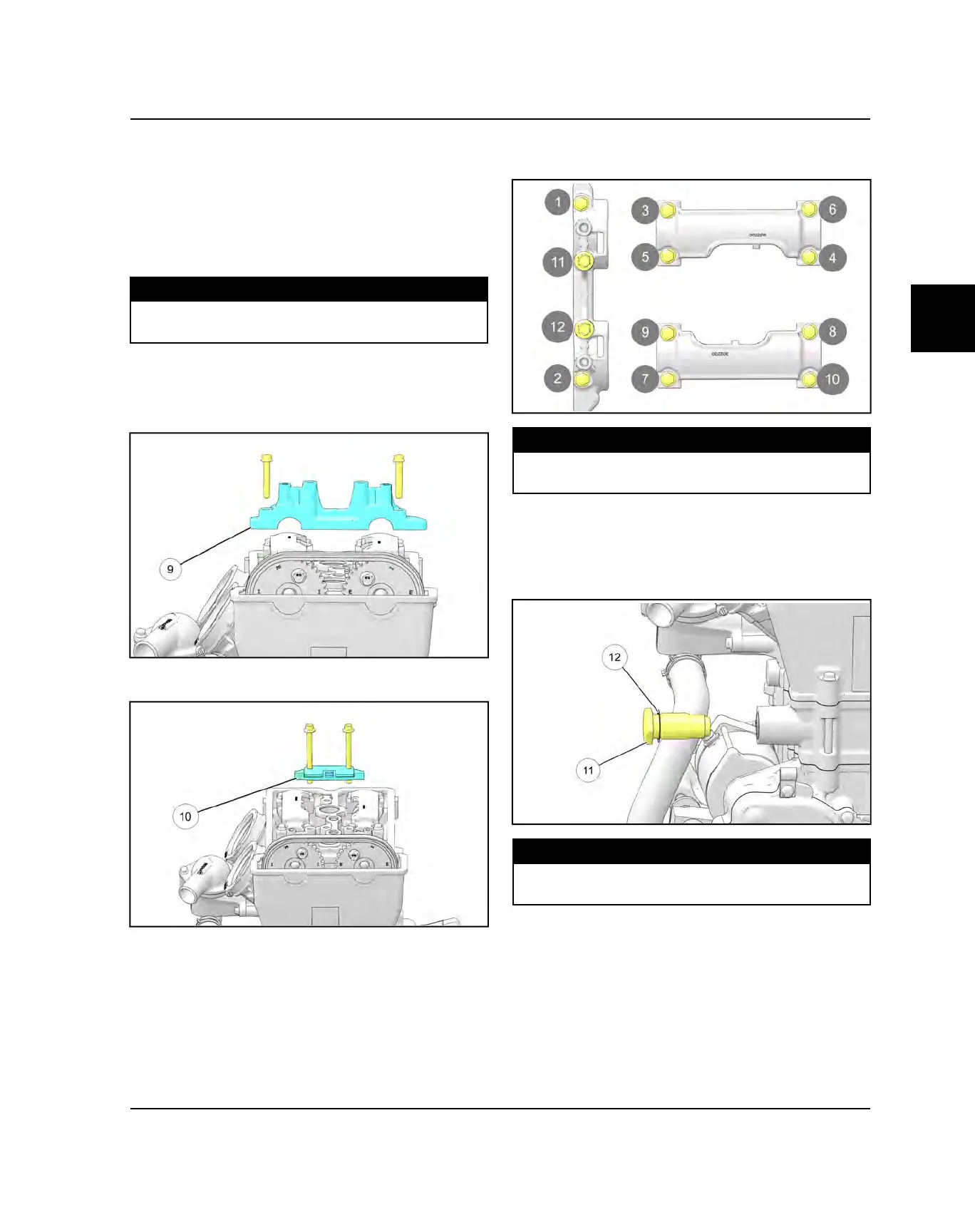

18. Install the front camshaft carrier
o
and two outer
retaining bolts.
19. Install the fixed cam chain guide
a
and two retaining
bolts.
20. Torque the camshaft carriers bolts in sequence to
specification.
TORQUE
Camshaft Carrier Bolts:
7 ft-lb (10 Nm)
21. Apply Polaris PS-4 engine oil to the cam chain
tensioner bore prior to assembly. Use a new
tensioner sealing washer
d
.
22. Install the hydraulic cam chain tensioner
s
into the
cylinder and torque to specification.
TORQUE
Cam Chain Tensioner:
30 lb-ft (40 Nm)
23. Rotate crankshaft through two revolutions and verify
camshaft timing is correct.
ENGINE / COOLING / HVAC SYSTEM
