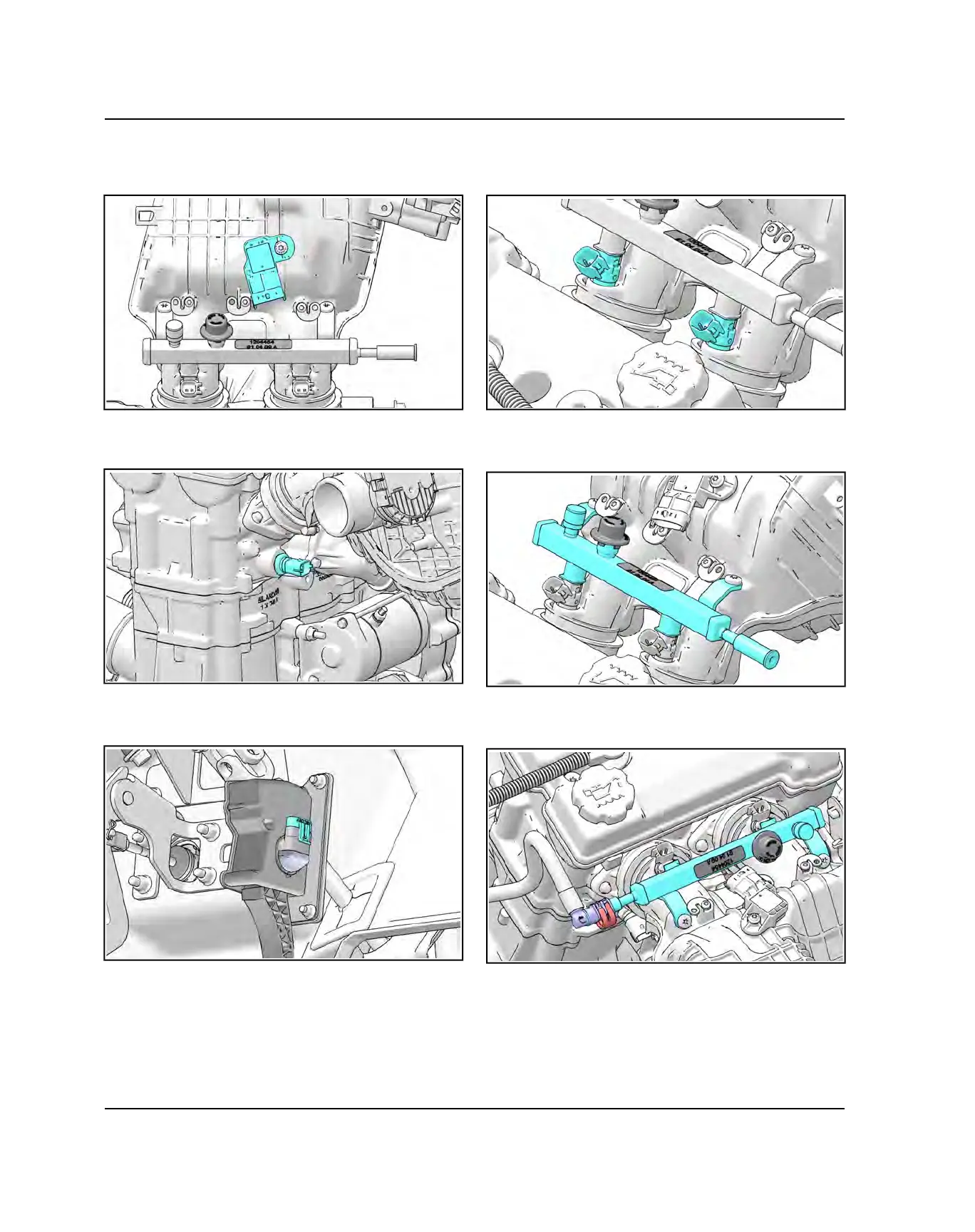

4. Temperature / Manifold Absolute Pressure
Sensor (T-MAP)
- Located on top of the intake plenum.
5. Engine Coolant Temperature Sensor (ECT)
- Located on the cylinder head below the intake
manifold.
6. Pedal Position Sensor (PPS)
- Located on the side of the throttle pedal assembly
(cover removed).
7. Fuel Injectors
- Located on the top of the intake plenum in the
intake track, retained on top by the fuel rail.
8. Fuel Rail Assembly
- Located on the intake plenum, on top of the fuel
injectors.
9. Fuel Supply Line
- Connected to the left end of the fuel rail and top of
the fuel pump.
