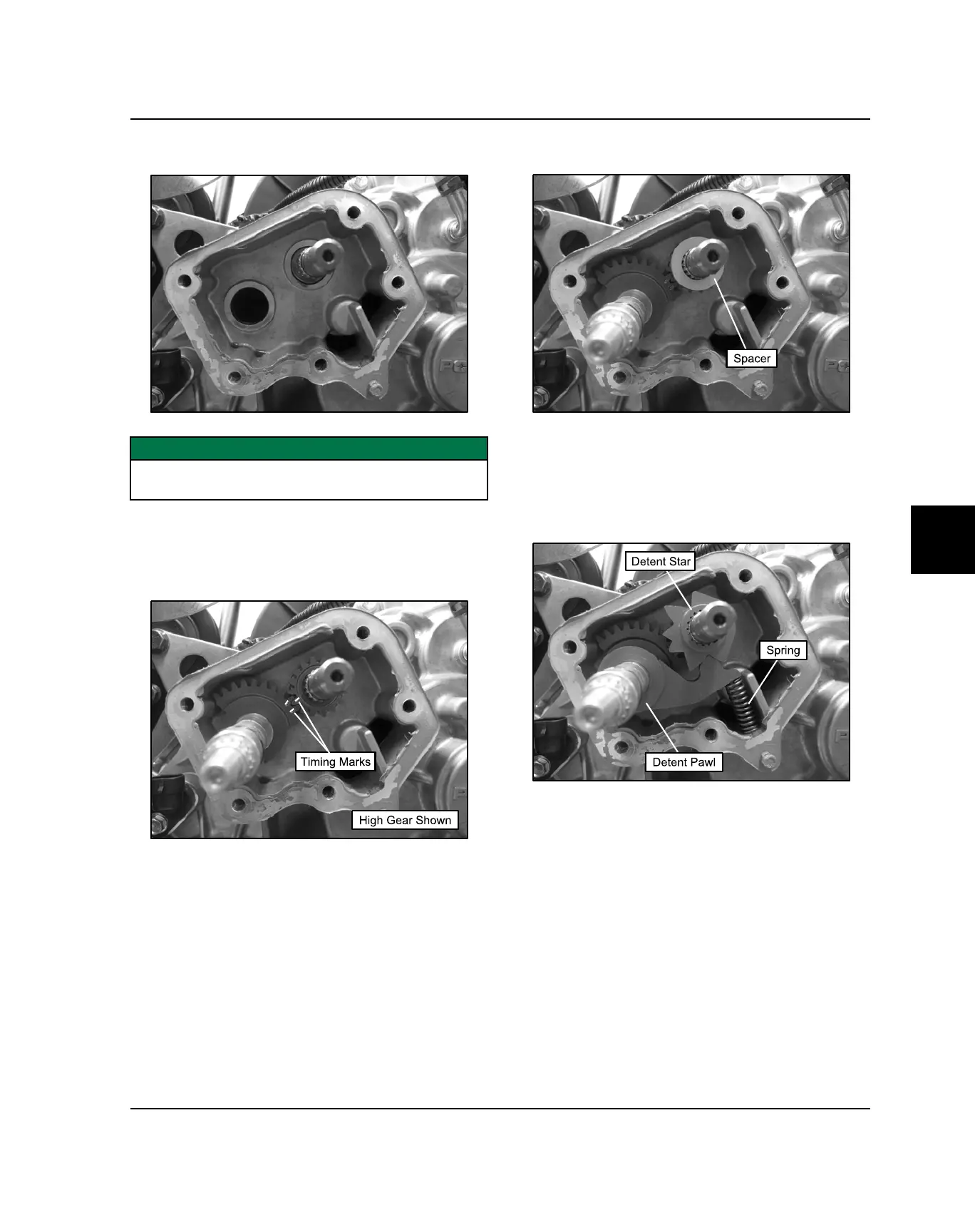

15.Thoroughly clean the shift shaft housing.
IMPORTANT
Make sure the transmission is in HIGH gear prior to
reassembly
16.Install the sector gear (16T) onto the shift drum shaft.
Install the shift shaft assembly and sector gear (11T)
into the bushing pocket on the left side. Align the
timing marks on the gears as shown.
17.Install the spacer onto the shift drum shaft.
18.Install the detent star onto the shift drum shaft. Be
sure to install the detent star with the raised edge
facing outward and skip-tooth aligned.
19.Install the detent pawl onto the shift shaft and
carefully install the compression spring.
TRANSMISSION
