2.5.1 ACTIVE CHANNELS
The active channels connections are used to connect gauges.
The active channels use an 8-pin RJ45 connector.

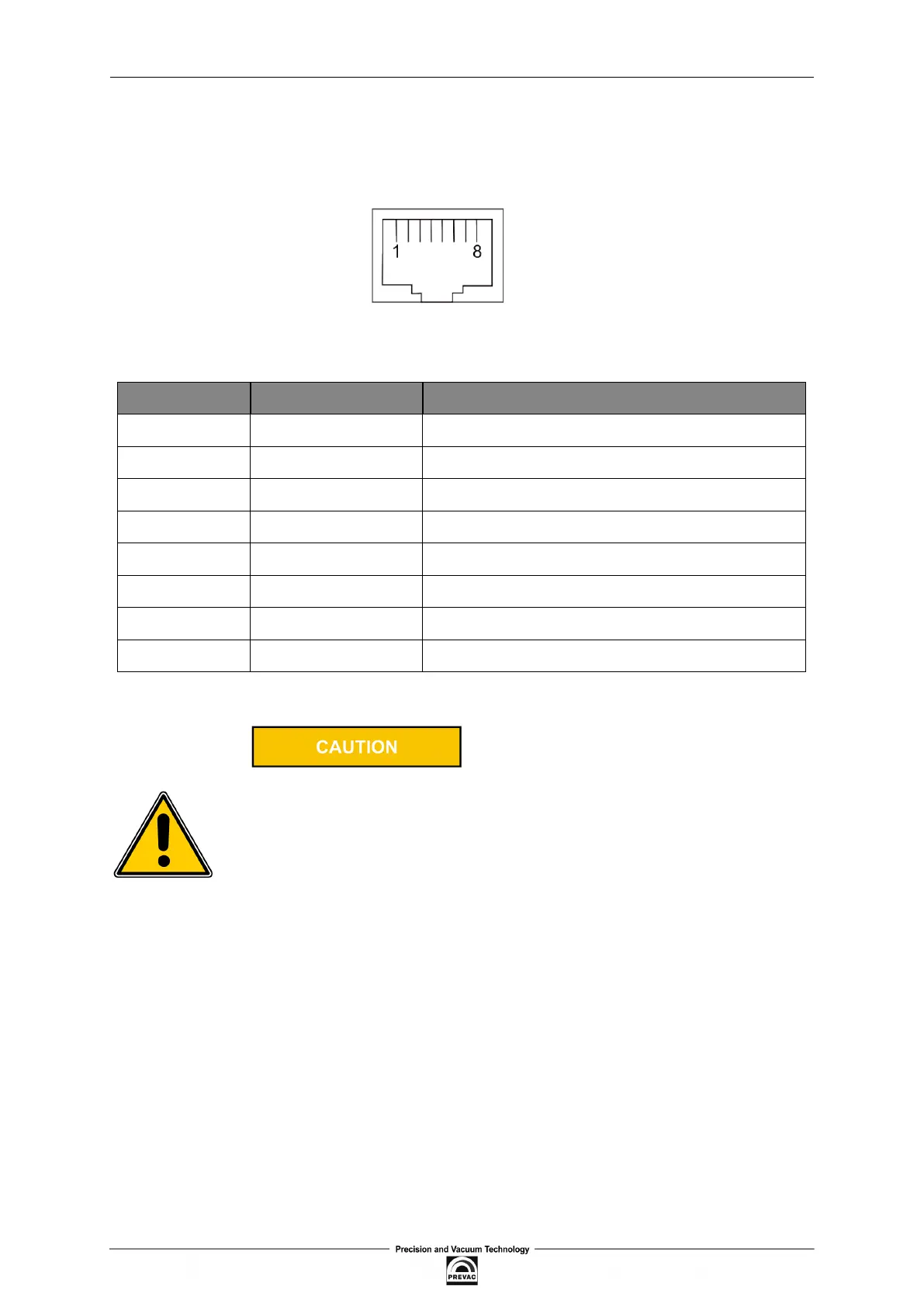

Figure 2.4: Active channel socket (RJ45)
PIN NUMBER FUNCTION DESCRIPTION
1 24 VDC Voltage 24VDC (max. 1A)
2 GND Power supply ground
3 Analogue input Analogue signal input
4 Identiication Gauge identiication resistor input
5 AGND Analogue ground
6 Emission status Emission status
7 Degas Degassing on/off signal
8 Emission Emission on/off signal
Table 2.1: Description of pins of active channel socket.
Improper gauge.
Gauges which are not designed for use with the MG15 may damage the device.
Operate the MG15 with proper gauges only - see chapter
1.5.1.
Page 24 User manual rev. 03
