MULTI GAUGE CONTROLLER COMMUNICATION

6.3.2 ETHERNET CONNECTOR

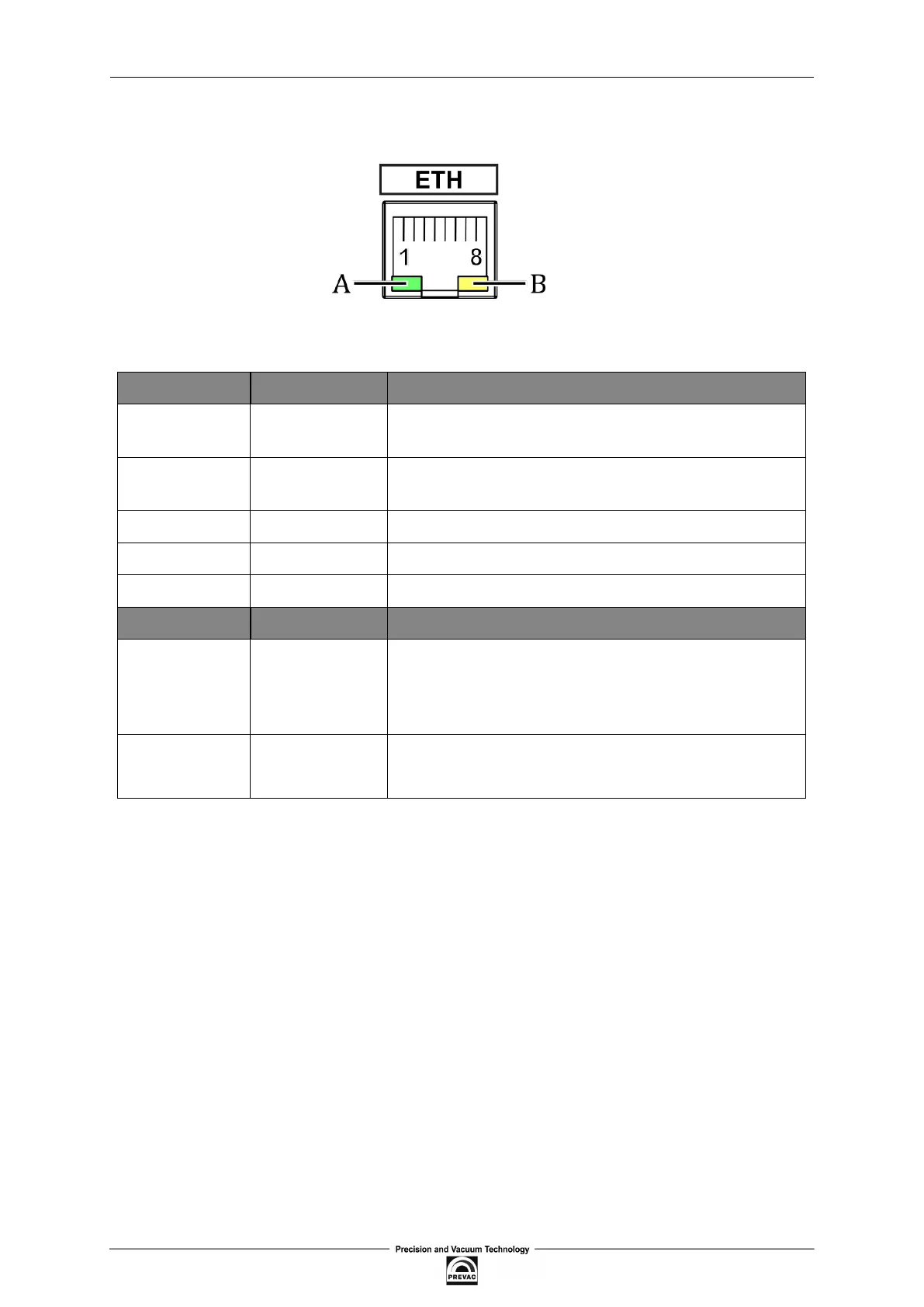

Figure 6.4: Female socket of Ethernet 10baseT (Modbus TCP) interface

PIN NUMBER FUNCTION DESCRIPTION

1 TX+ Data transmission - differential pair positive conduc-

tor

2 TX- Data transmission - differential pair negative conduc-

tor

3 Rx+ Data reception - differential pair positive conductor

6 Rx- Data reception - differential pair negative conductor

4,5,7,8 N/C Not connected

DIODE FUNCTION DESCRIPTION

A Connection disabled - no connection, activity

(green) status always on - connection in the network, no trafic

blinking - connection active, trafic in the network

B Network disabled - no voltage or IP address not assigned

(yellow) status always on - network active

Table 6.2: Pins description of ”ETH” connector

User manual rev. 03 Page 85
