MULTI GAUGE CONTROLLER OPERATION
3.3 FRONT PANEL - BLACK BOX

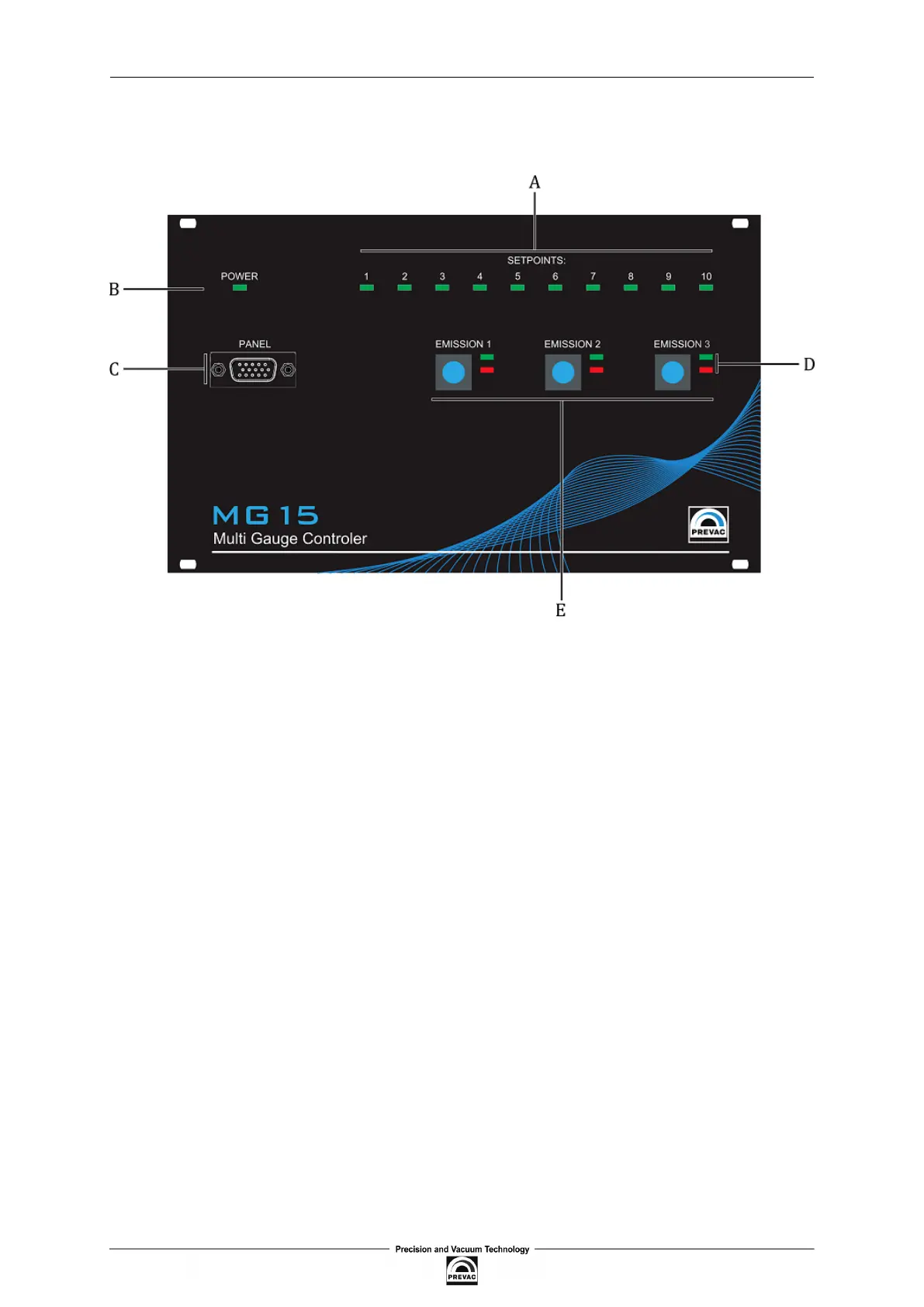

Figure 3.2: Front panel in BlackBox version
• A - Diodes signalling active Setpoints
• B - Diode signalling that power is ON
• C - Socket to connect the panel with a graphic display
• D - Diodes signalling that emission is ON or passive gauges errors
• E - Buttons activating emission for individual passive gauges
User manual rev. 03 Page 33
