Network operation and remote control

R&S

LCX Series

150User Manual 1179.2260.02 ─ 02

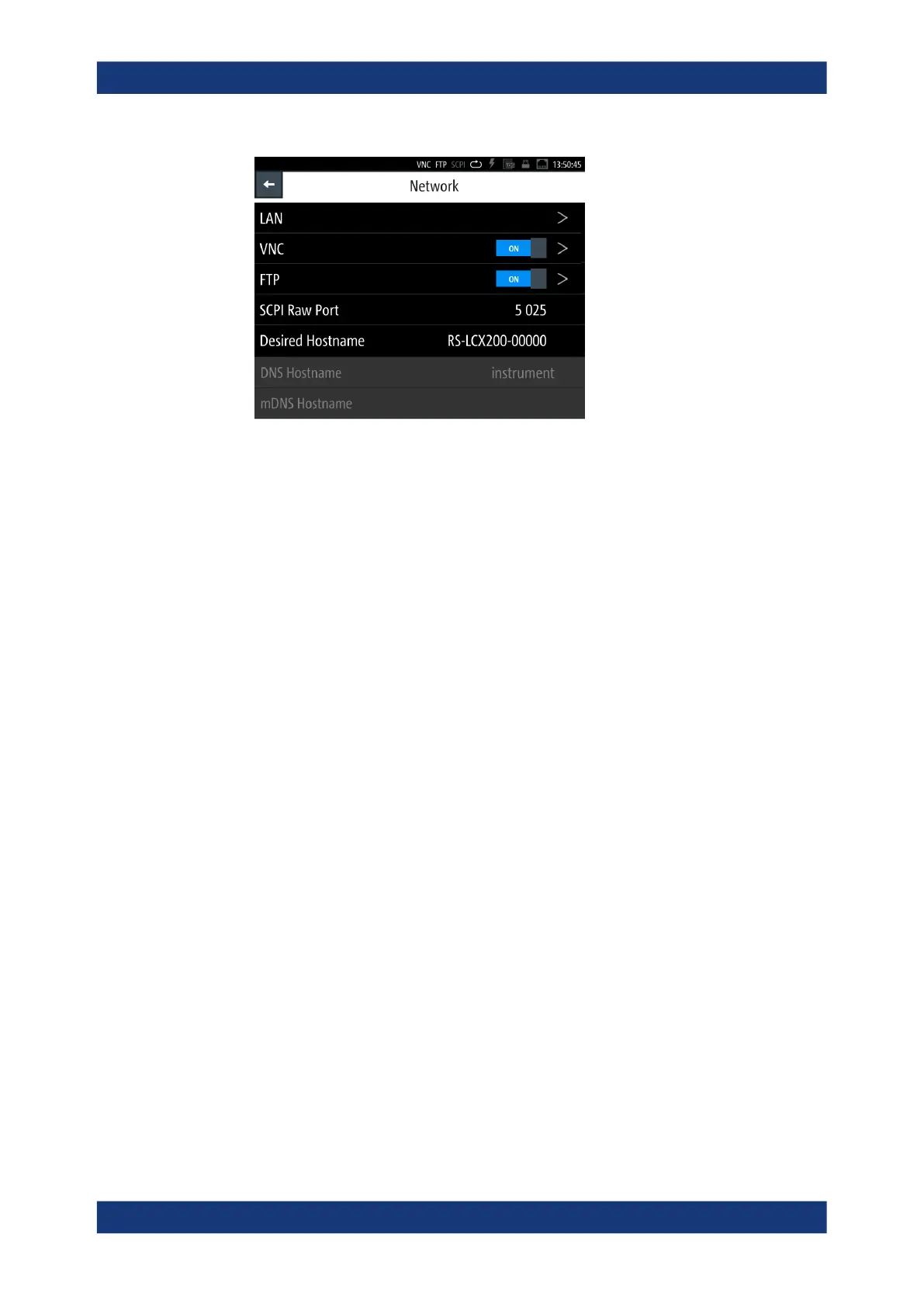

Figure 10-3: Network settings dialog

In the "Network" dialog, you can access the LAN and VNC interface addresses,

assign the port for raw socket communication and a hostname for the instrument.

The remote commands required to configure the network remotely are described in

Chapter 11.15, "SYSTem subsystem", on page 211.

LAN............................................................................................................................. 150

VNC.............................................................................................................................150

FTP............................................................................................................................. 150

SCPI Raw Port............................................................................................................150

Desired Hostname...................................................................................................... 151

DNS Hostname........................................................................................................... 151

LAN

Opens the "LAN" dialog for setting the interface parameters, see Chapter 10.3.2, "LAN

settings", on page 151.

VNC

Accesses the VNC dialog for configuring the VNC port address, see Chapter 10.3.3,

"VNC settings", on page 153.

FTP

Accesses the FTP dialog for configuring the FTP port address, see Chapter 10.3.4,

"FTP settings", on page 154.

SCPI Raw Port

Sets the port number for remote control over LAN, using TCP/IP socket protocol.

The socket address is a combination of the IP address or the host name of the instru-

ment and the number of the port configured for remote-control.

To assign the socket port manually, set DHCP & Auto-IP > Off

How to: see "Assigning the LAN interface addresses manually" on page 159.

Remote access settings
