Getting started
R&S
®
LCX Series
41User Manual 1179.2260.02 ─ 02
Measurement parameters and results

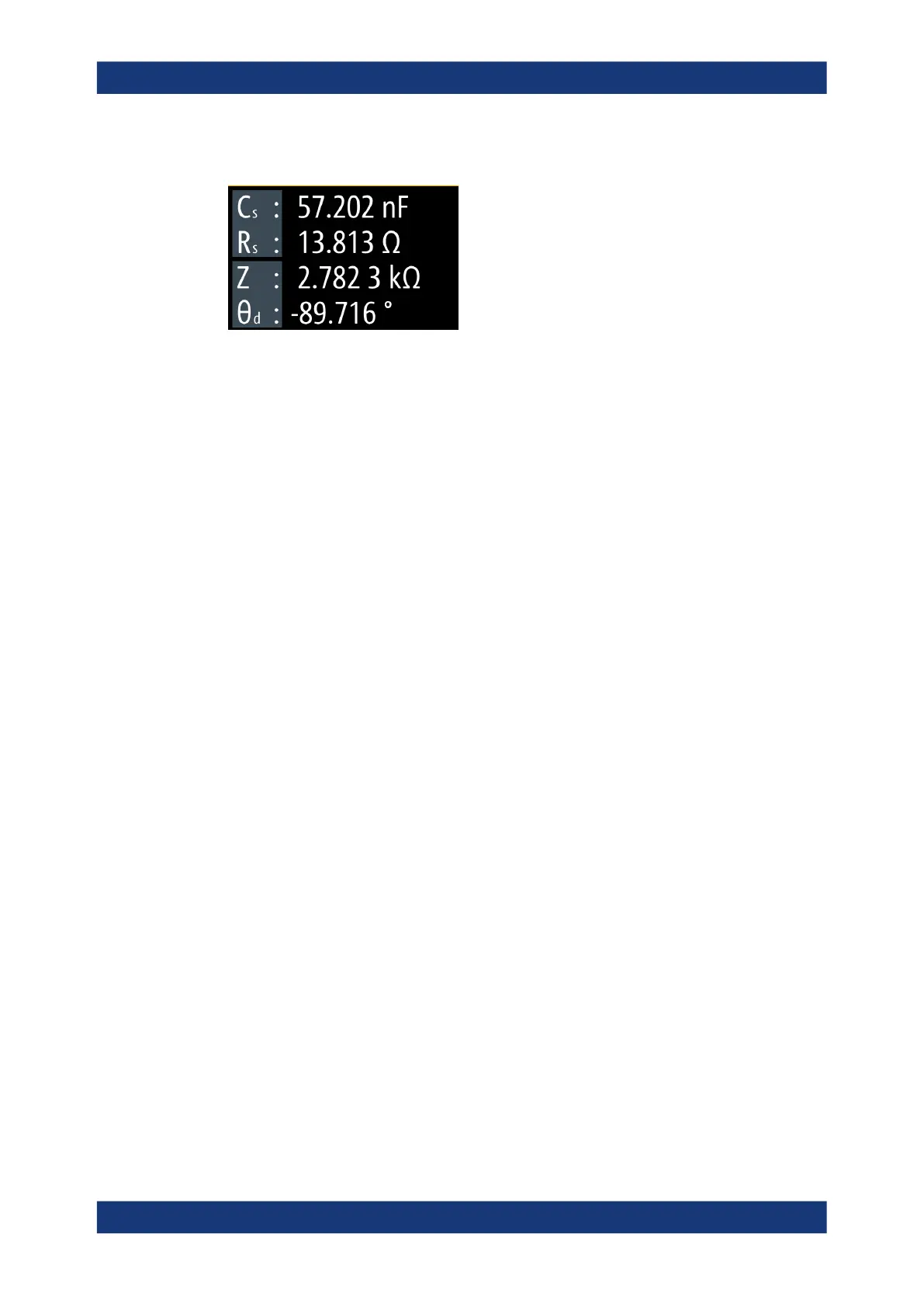

Figure 4-10: Measurement results window
The initial screen shows the basic parameters capacitance "C
s
" and serial resistance
"R
s
", the impendance "Z" and phase angle "Θ
d
". On the right, the R&S LCX displays
the measurement readings.
You can select parameters different from default by tapping the parameter softkeys.
How to: see "Measuring a resistor" on page 34
The parameter softkeys open an on-screen selection list for selecting parameters other
than displayed.
Additional display characteristics
The following section provides a short insight on the indication of the screen in general,
and significant elements that you see under specific operating modes, in dialogs or set-
tings.
●
Appearance of active elements
– Active elements like On/Off switches, state buttons have a blue background.
– Selected elements are framed or highlighted orange.
– Inactive elements are gray.
●
Menus and dialogs
Both, menus and dialogs appear similar, and contain selection lists.
Throughout this manual, a list of functions which lead you to the settings of this
function is referred to as menu. The term dialog refers to the views that cover the
parameters of a certain function. Some dialogs are divided into tabs with logically
grouped parameters.
Instrument control
