R&S RTC1000 User Manual

Operating Basics
R&S
®
RTC1000
21User Manual 1335.7352.02 ─ 02
MENU Opens the advanced menu for the selected waveform, bus or
pod.
UTIL Opens a menu with more applications: digital voltmeter, function
and pattern generator (requires option R&S RTC-B6), compo-
nent tester, and trigger counter.
3.1.5 Trigger Section

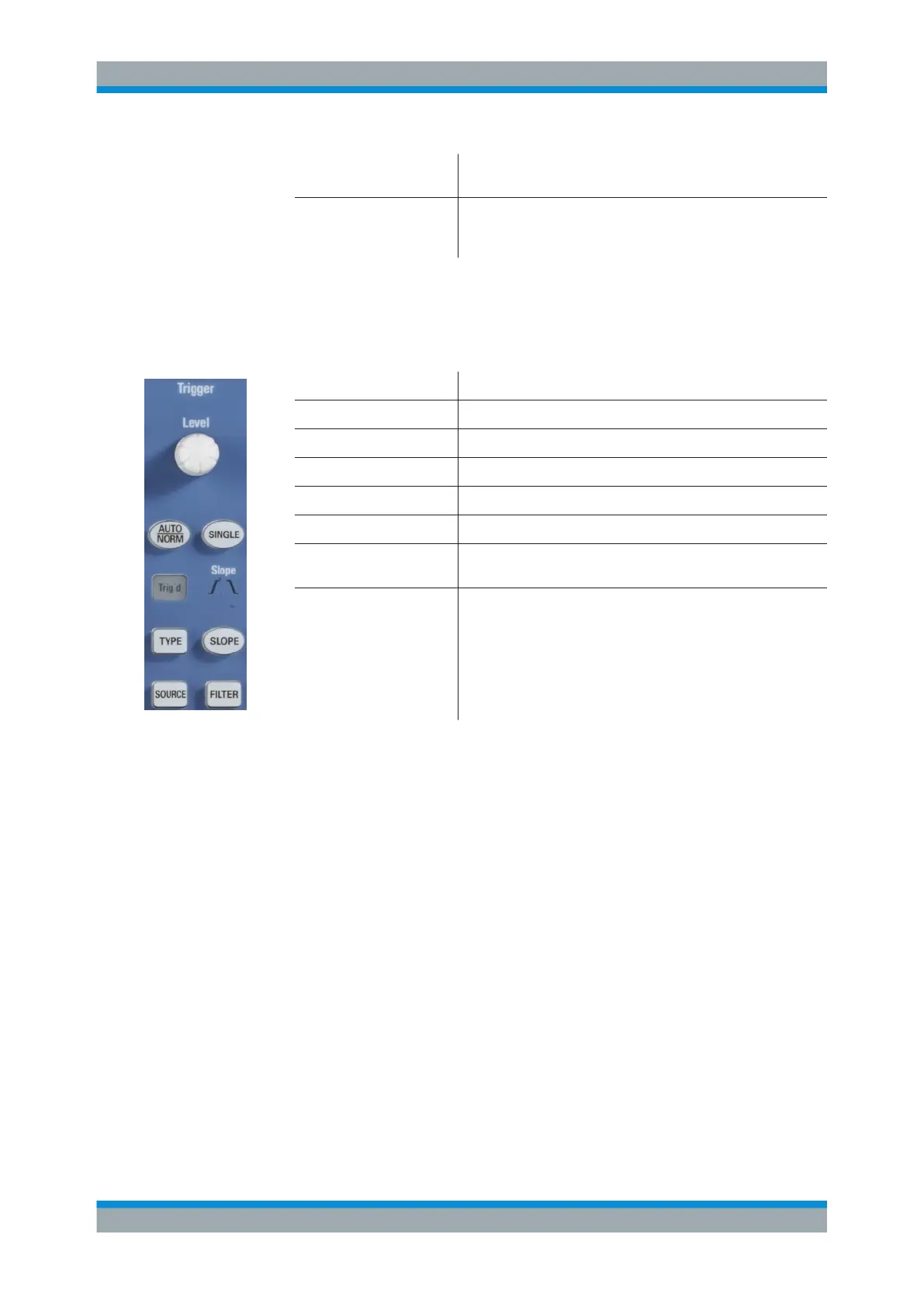

The Trigger section provides all controls to adjust the trigger.
LEVEL knob Sets the trigger level.
AUTO/NORM Toggles between auto and normal trigger mode.
Trigg'd The LED lights up if the instrument found a trigger event.
TYPE Opens a menu to select the trigger type.
SOURCE Opens a menu to select the trigger source.
SINGLE Starts a single acquisition.
SLOPE Selects the slope for the edge trigger, or the polarity for the pulse
trigger. The selection is indicated by the Slope LEDs.
FILTER Opens a menu to set up the trigger condition for the selected trig-
ger type.
3.1.6 Horizontal Section
In the Horizontal section, you set the horizontal and acquisition settings, zoom, and
markers.
Control Panel
