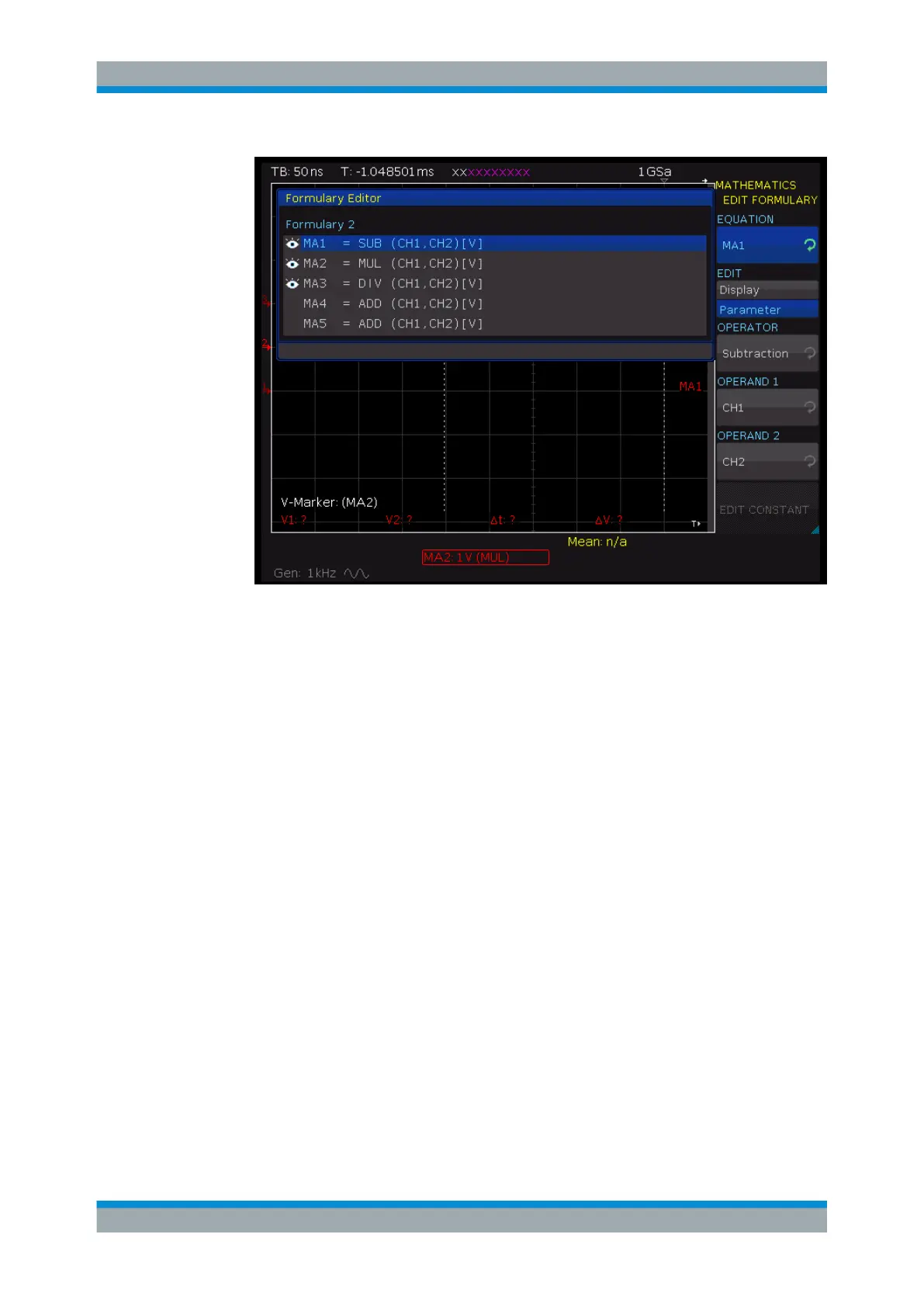

Figure 6-8: Equation parameters (edit equation)
7. Press OPERATOR. Turn the Universal knob to select the operator.
8. To select the operands, press the "OPERAND" softkeys.
For each equation, the input channels CH1, CH2 and a constant are available as
operands (sources). For the formula MA2, MA1 is added as source, for MA3 the
additional sources are MA1 and MA2, for MA4 it is MA1, MA2 and MA3 and so on.
9. To set a constant, press "EDIT CONSTANT" and the UNIVERSAL knob in the
CURSOR/MENU section to choose one of the following constants:
You can:
● Select a predefined constant (π, 2*π, 0.5*π).
● Customize a constant:
– Select one of the constants "User: 1" to "User: 10".
– Press NUMERIC INPUT
– Press "VALUE". Use the Universal knob to select a numeric value.
– Press "DECIMAL POINT". Set the position of the decimal point.
– To enter an additional SI prefix, press "PREFIX".
– Select a "UNIT".
