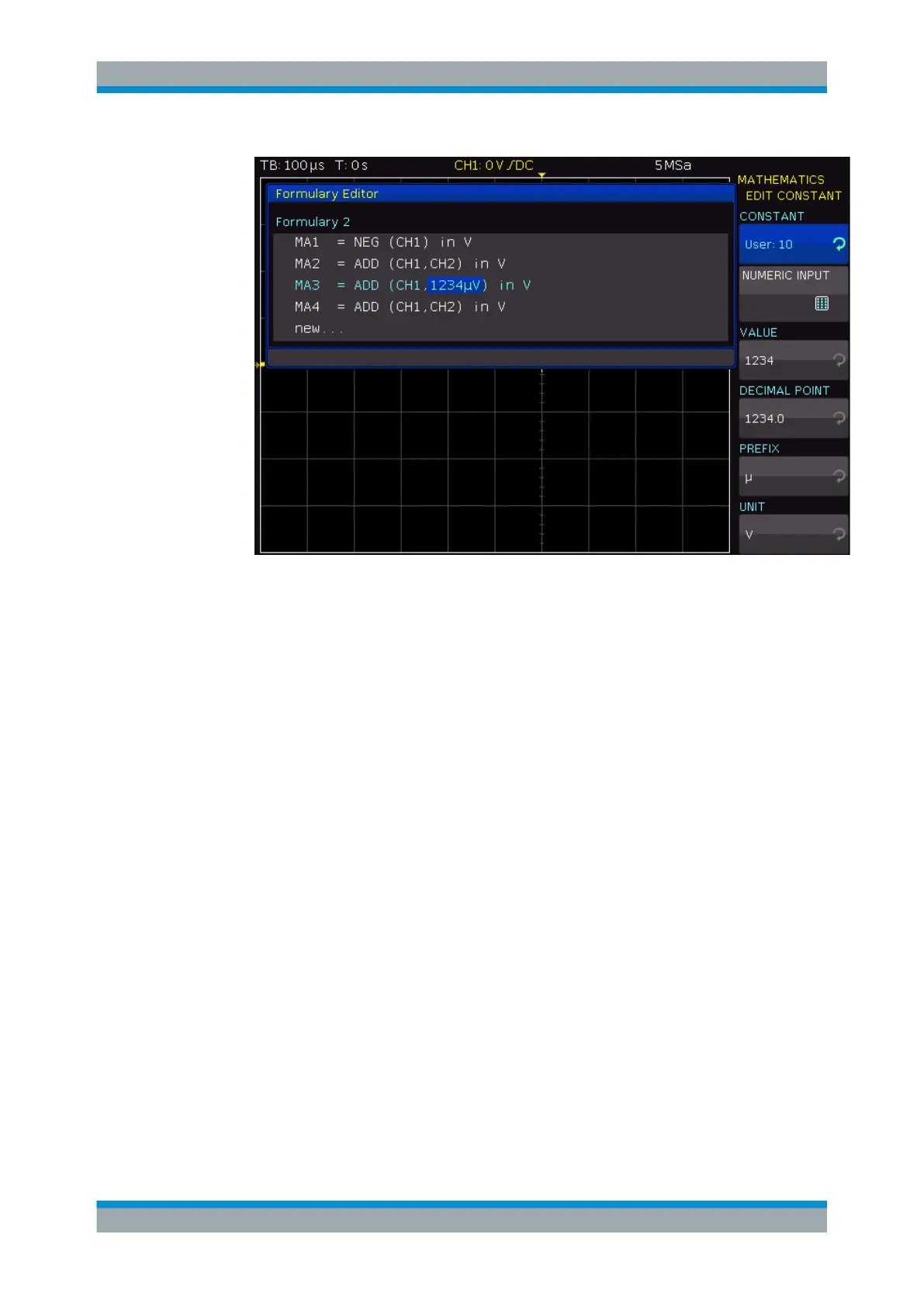

Figure 6-9: Customize a constant

6.4.2.3 To Save and Load a Formulary Set

If all equations of a formulary set are defined, you can save the set.

1. Navigate to the "MATHEMATICS" menu.

2. Press "SAVE".

3. Save the formulary set:

a) Select the storage location with "STORAGE".

b) Enter the "FILE NAME".

c) Optionally, add a "COMMENT".

4. To use a saved formulary set, press "LOAD".

6.4.2.4 Example

This example shows the analysis of an electrical energy waveform. The voltage across

the load is measured with differential probe and applied to channel 2. The current is

measured with a current probe and applied to channel 1. Voltage is measured with an

active differential probe and applied to channel 2.

To define the equation CURRENT

1. Press "EDIT FORMULARY" to open formulary set 1.

2. Select equation "MA1".

Mathematics
