If "n/a" is displayed, the measurement is not applicable to the signal. For instance, if

you measure a voltage on a POD, no result is displayed because only logic states with-

out voltage reference are displayed.

If "?" is displayed, the display does not show a complete measurement result. For

instance, the period to be measured is not completely displayed and cannot be identi-

fied.

7.3.1 Settings for Automatic Measurements

► Press the AUTO MEASURE key in the Analysis section.

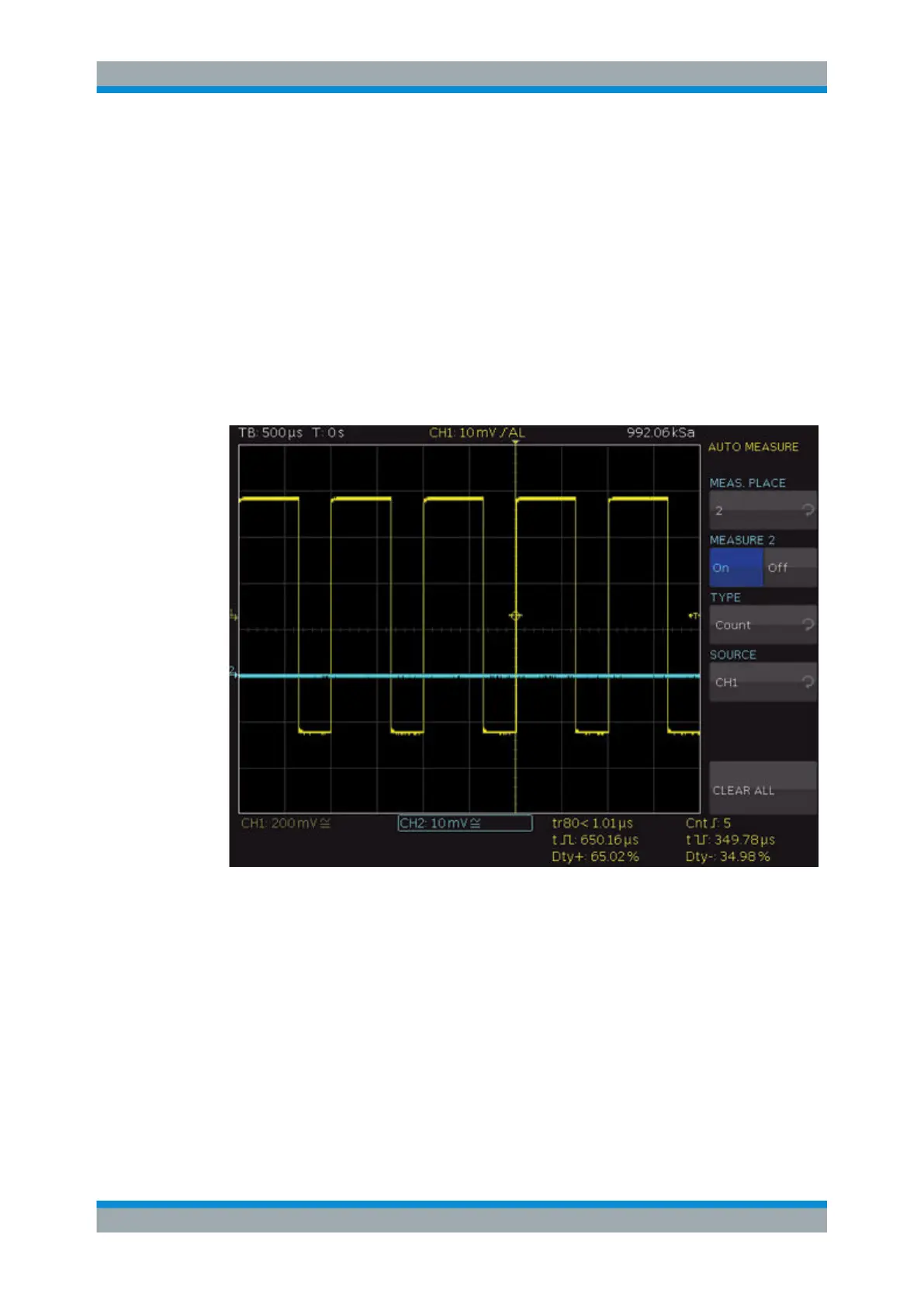

Figure 7-2: Auto measurement settings and results

MEAS. PLACE

Selects the measurement place. To each measurement place, an automatic measure-

ment function is assigned.

MEASURE

Switches the selected measurement place on or off.

TYPE

Defines the measurement type. To learn about the types, see Chapter 7.3.2, "Auto-

matic Measurement Types", on page 89).

Automatic Measurements
