R&S RTC1000 User Manual

Measurements
R&S
®
RTC1000
89User Manual 1335.7352.02 ─ 02
SOURCE
Selects the waveform to be measured. The list only includes displayed channels. Pos-
sible sources are analog, digital and mathematical channels.
CLEAR ALL
Switches off the activated automatic measurements.

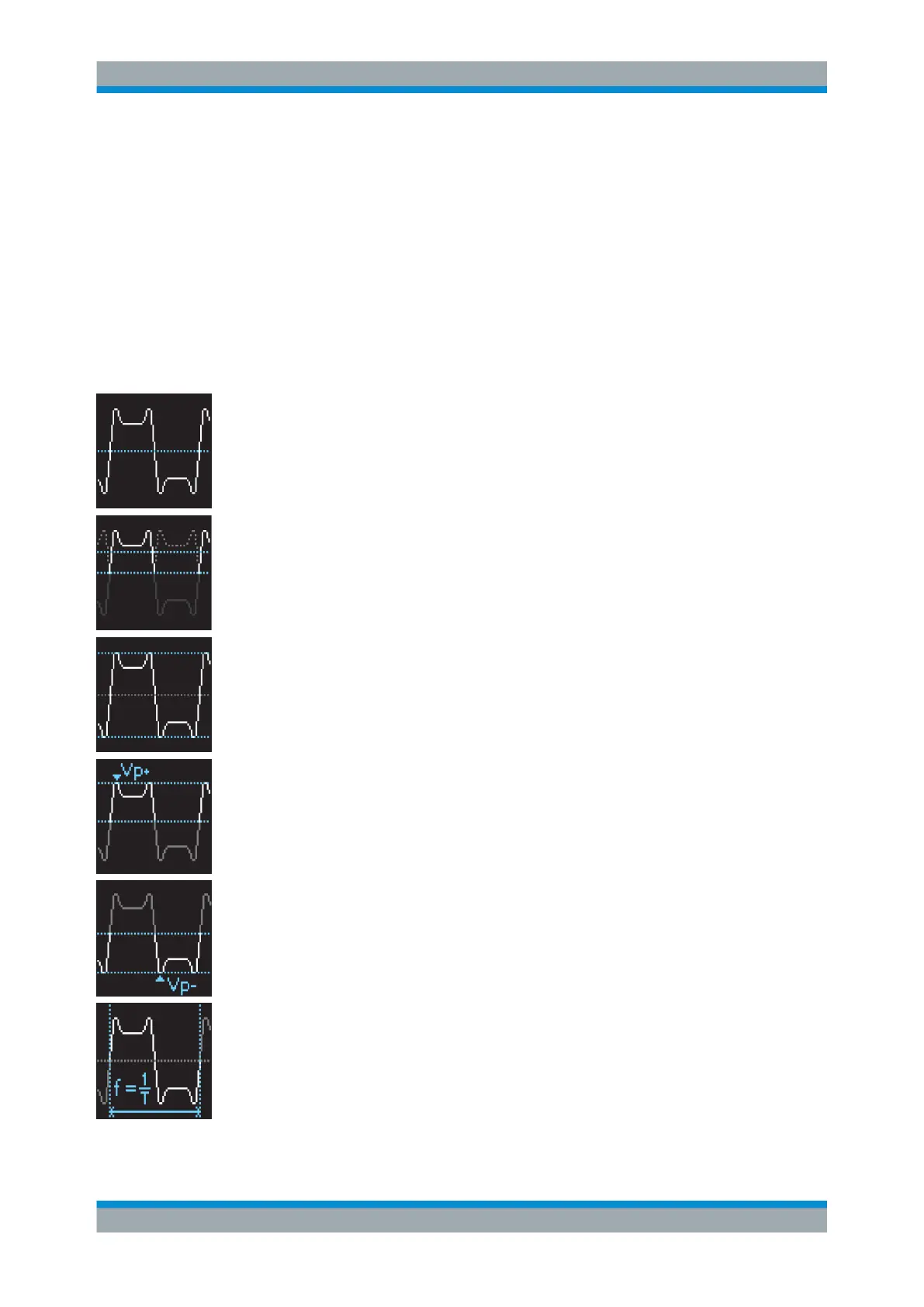

7.3.2 Automatic Measurement Types
The following types of automatic measurements are available:
Mean Value
Measures the mean value of the signal amplitude (Mean). If the signal is periodic, the
first period on the left of the screen is used for the measurement.
RMS Value
"RMS Value" measures the effective value of the displayed signal. If the signal is peri-
odic, the first period on the left of the screen is used for the measurement. The effec-
tive value is not based on a sine signal but is calculated directly (TrueRMS).
Peak Peak
"Peak Peak" measures the voltage difference between the maximum and the minimum
peak value of the displayed signal (V
pp
).
Peak +
"Peak +" measures the maximum voltage value in the display (V
p+
).
Peak –
"Peak –" measures the minimum voltage value in the display (V
p-
).
Frequency
Measures the frequency of the signal from the reciprocal value of the first signal period
T (f).
Automatic Measurements
